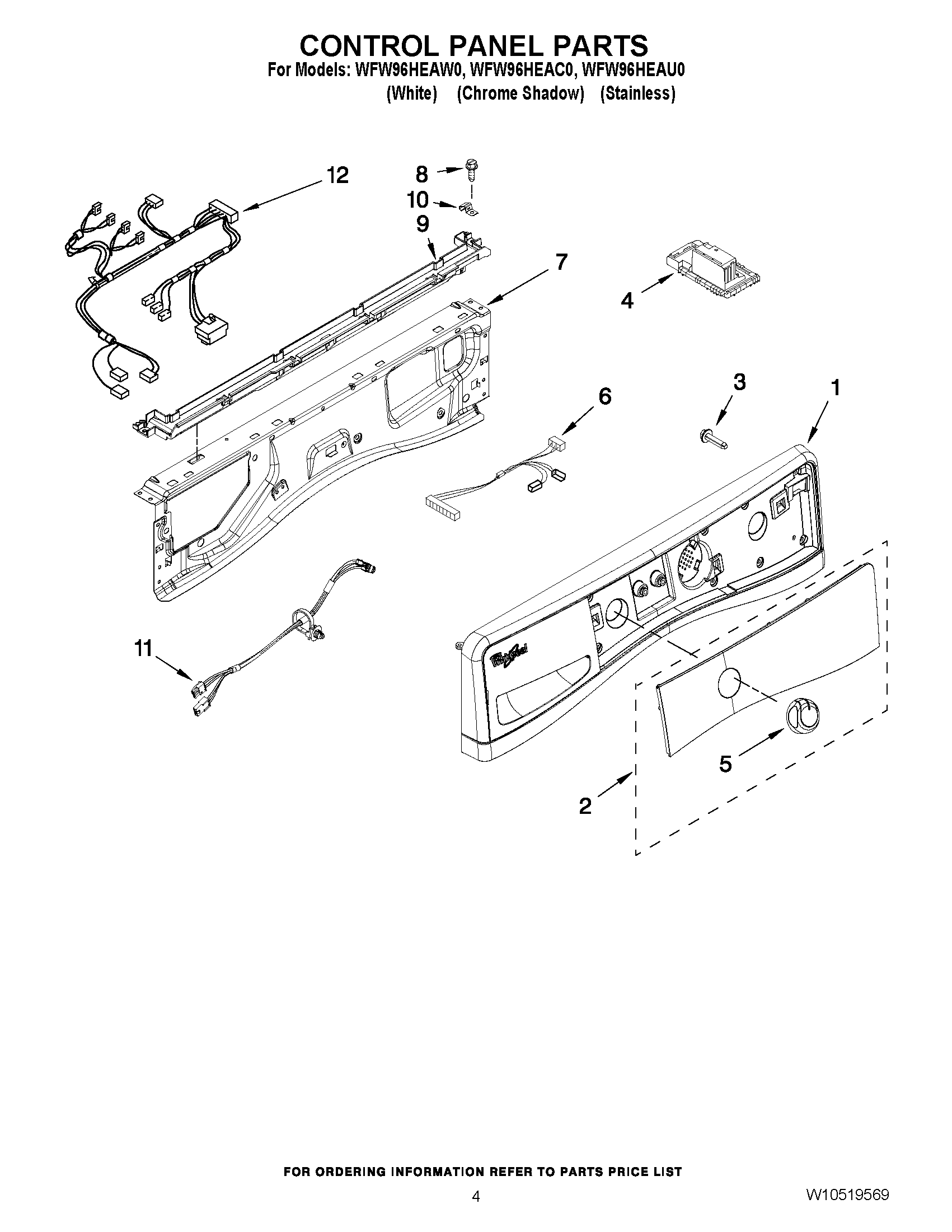

WFW96HEAC0 03 – CONTROL PANEL PARTS

WFW96HEAC0 03 – CONTROL PANEL PARTS

Written by

in

WFW96HEAC0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONSOLE (WHITE)
1W10858319 Whirlpool Console
1WPW10463516 Whirlpool Console
2IML ASSEMBLY (INCLUDES ITEM 3) (CHROME SHADOW)
2IML ASSEMBLY (INCLUDES ITEM 3) (WHITE)
2WPW10446434 Whirlpool Control Panel
3W10853898 Whirlpool Screw
4CONTROL UNIT, CENTRAL
5KNOB ASSEMBLY
6HARNESS, UI JUMPER
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11W10485684 Whirlpool Wire Harness
12W10481516 Whirlpool Wire Harness
