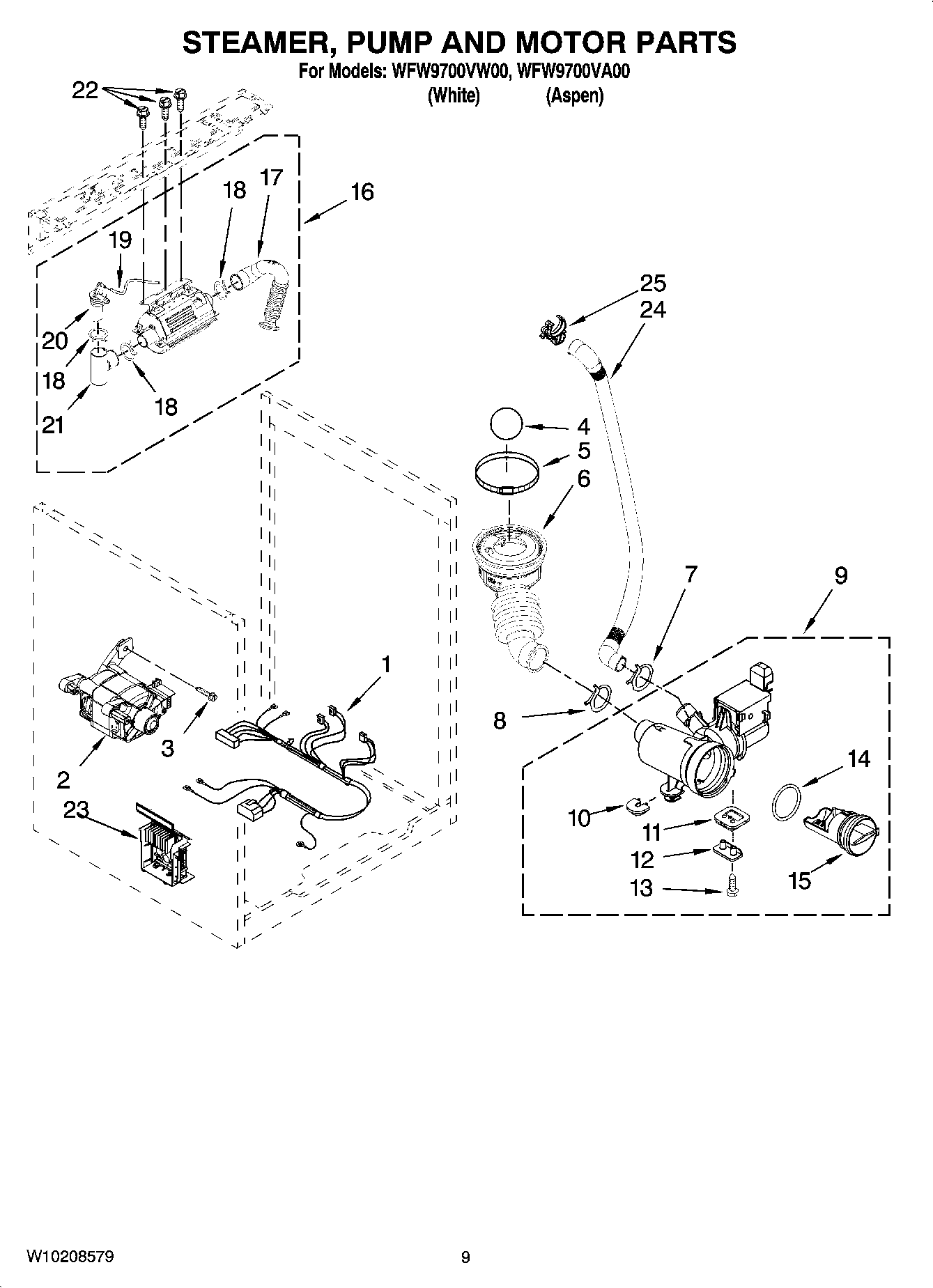

WFW9700VA00 06 – STEAMER, PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL W10157756
	W10135699 Whirlpool Affresh Cleaner Tablets
	285863 Whirlpool Drain Hose Extension 4'
	ACCESSORY PARTS
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Harness, Motor
2	WPW10140583 Whirlpool Drive Motor
3	8540134 Whirlpool Screw
4	W10121657 Whirlpool Ball
5	WP696392 Whirlpool Hose Clamp
6	WPW10467168 Whirlpool Hose Assembly
7	WP356138 Whirlpool Hose Clamp
8	WP616099 Whirlpool Clamp
10	W10034820 Whirlpool Grommet
11	W10034830 Whirlpool Grommet
12	8540033 Whirlpool Cap
13	8533964 Whirlpool Screw
14	WPW10730972 Whirlpool Washer Water Pump
16	Steamer, Complete Assembly (Includes Item 9 on Page 7)
17	W10156132 Whirlpool Hose
18	WP285655 Whirlpool Hose Clamp
19	Hose, Overflow
20	W10156250 Whirlpool Cap
21	W10156251 Whirlpool Tank
22	Screw, 4.2 x 1
23	WPW10384846-includeCORE Whirlpool WPW10384846 Refrigerator Electronic Control Board + Core
24	WPW10003250 Whirlpool Hose
25	8182209 Whirlpool Clip
