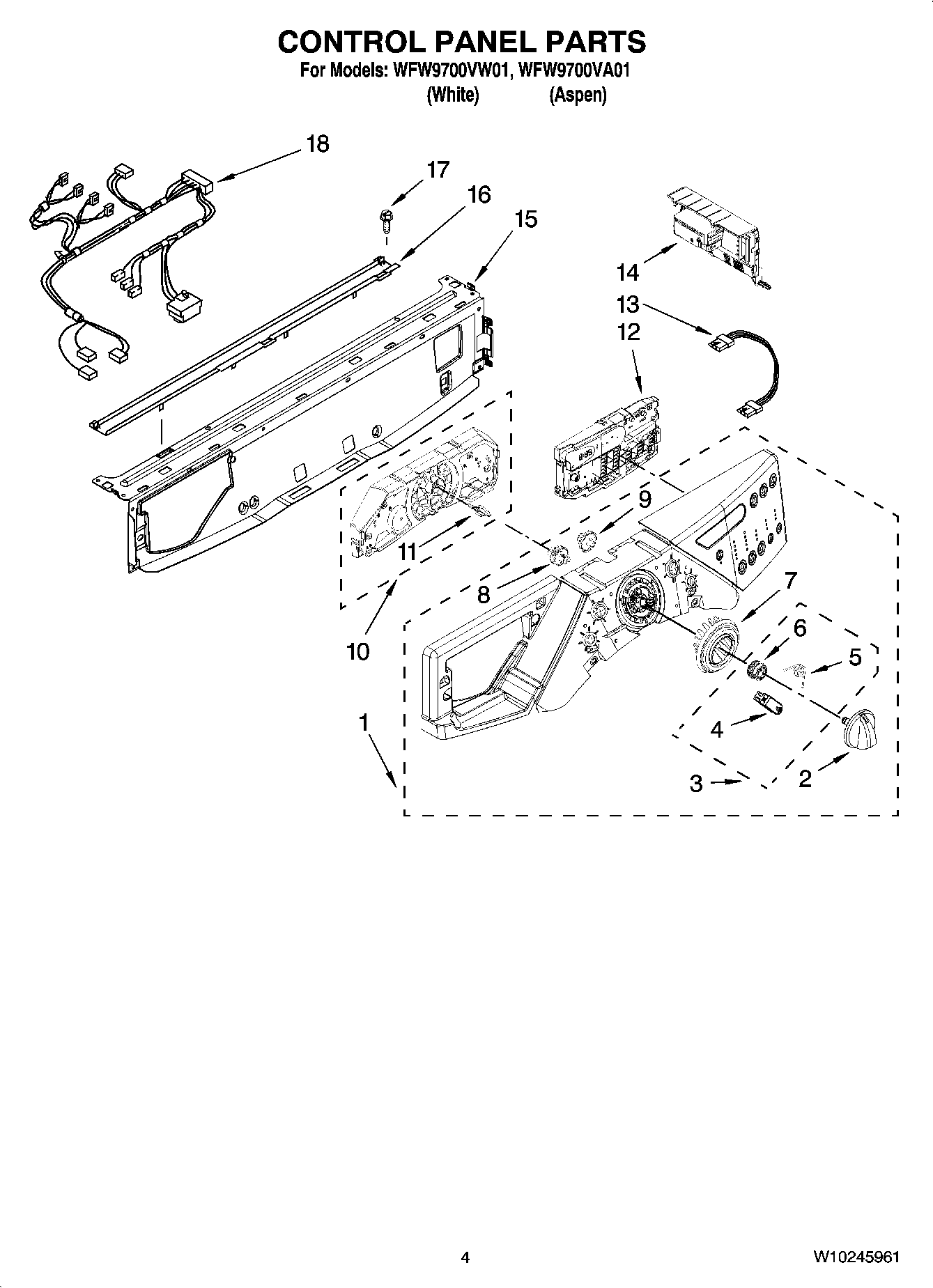

WFW9700VA01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (White)
1	Panel, Control (Aspen)
2	W10166961 Whirlpool Knob
2	Knob, Control (Includes Item 9) (White)
3	Wheel, Detent Kit (Includes Item 9)
4	Wheel, Rast (2) (Service In Kit Only)
5	Spring, Knob (2) (Service In Kit Only)
6	Wheel, Detent (Service In Kit Only)
7	Ring, Knob Light (Includes Item 9)
8	W10131381 Whirlpool Wheel
9	Retainer, Snap
10	User Interface, Center
11	Adapter, Encoder Wheel
12	User Interface, Right
13	W10067000 Whirlpool Wire Harness
14	WPW10133908 Whirlpool Electronic Control Board
15	W10059240 Whirlpool Bracket Assembly
16	WP8183204 Whirlpool Diverter
17	WP489442 Whirlpool Refrigerator Screw
18	W10210828 Whirlpool Wire Harness
