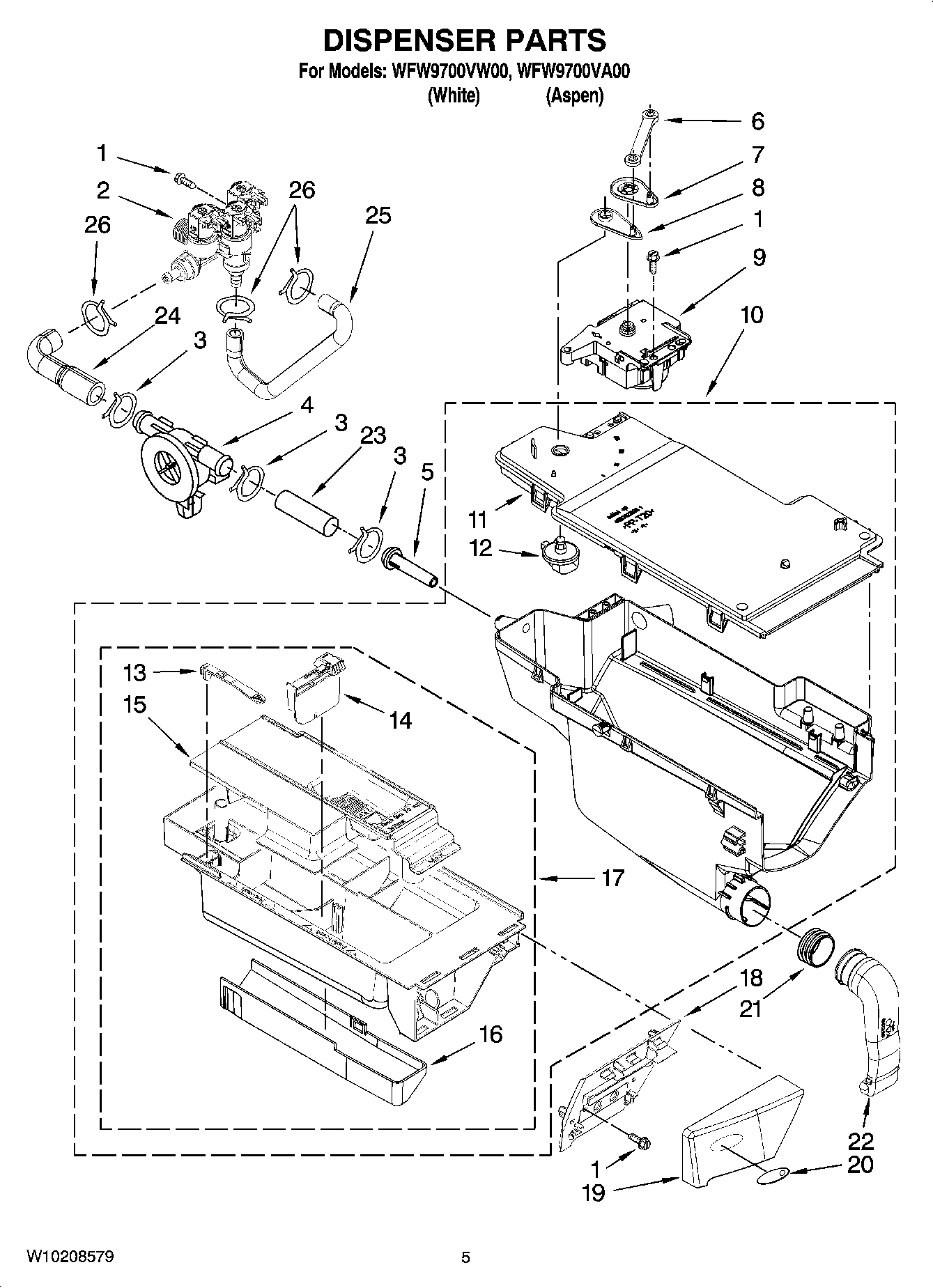

WFW9700VW00 04 – DISPENSER PARTS

Products

Position	Product
1	WP8540282 Whirlpool Screw
2	WPW10156253 Whirlpool Valve
3	WP596669 Whirlpool Hose Clamp
4	FLOWMETER WASHER INLET
5	WP8183181 Whirlpool Nozzle
6	WP8183183 Whirlpool Lever
7	WP8183184 Whirlpool Actuator Cam
8	WPW10161052 Whirlpool Dispenser Lever Connection
9	WPW10352973 Whirlpool DIS Switch
10	Dispenser, Complete (Includes Item 9)
11	Plate, Distribution
12	WP8181712 Whirlpool Nozzle
13	WP8181721 Whirlpool Retainer
14	WPW10121596 Whirlpool Divider
15	Siphon, Bleach/Softener
16	W10003140 Whirlpool Cover
17	Drawer, Detergent (Complete)
18	WPW10156617 Whirlpool Bracket
19	Handle, Drawer (Includes Items 19 & 21) (White)
19	Handle, Drawer (Includes Items 19 & 21) (Aspen)
20	MEDALLION
21	WP8181747 Whirlpool Seal Assembly
22	WPW10005300 Whirlpool Hose
23	Hose, Nozzle Inlet
24	8183182 Whirlpool Hose
25	W10156131 Whirlpool Hose
26	WP489503 Whirlpool Refrigerator Clamp
