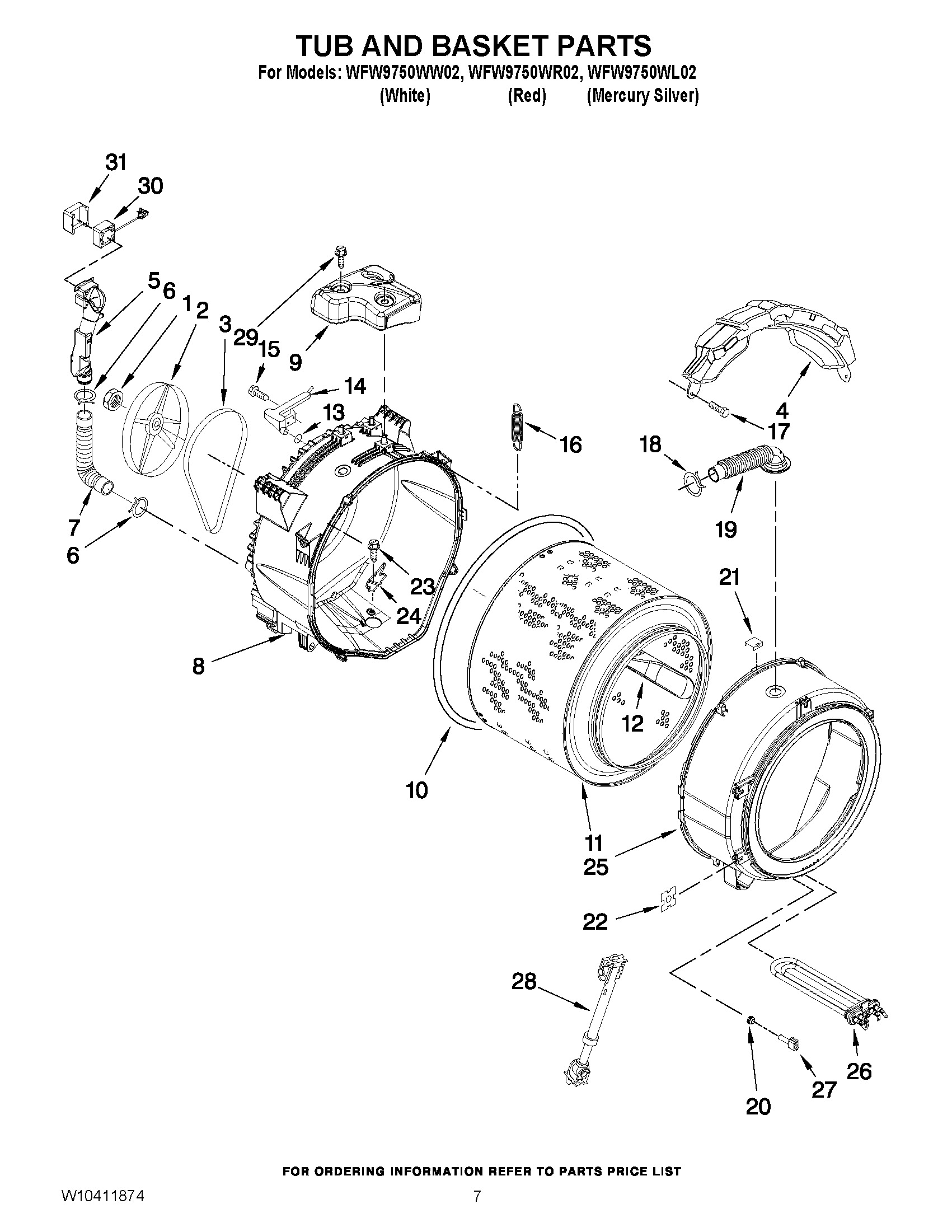

WFW9750WL02 05 – TUB AND BASKET PARTSadmin2025-04-26T11:56:32+00:00WFW9750WL02 05 – TUB AND BASKET PARTS
Products
| Position | Product |
|---|
| 1 | WPW10283361 Whirlpool Nut |
| 2 | WP8182650 Whirlpool Pulley |
| 3 | WPW10388414 Whirlpool Washer Drive Belt |
| 4 | COUNTERWEIGHT, FRONT |
| 5 | PIPE, VENTILATION |
| 6 | Clamp |
| 7 | WP8181743 Whirlpool Hose Assembly |
| 8 | TUB, REAR (INCLUDES ITEMS 10, 22, 23 & 24) |
| 9 | COUNTERWEIGHT, REAR |
| 10 | Gasket, Tub |
| 11 | WPW10283352 Whirlpool Basket Assembly |
| 12 | WPW10283356 Whirlpool Washer Tub Baffle |
| 13 | WPW10250553 Whirlpool O-Ring |
| 14 | Airtrap |
| 15 | SCREW |
| 16 | W10135004 Whirlpool Spring Assembly |
| 17 | Bolt |
| 18 | WP3367052 Whirlpool Hose Clamp |
| 19 | WP8540015 Whirlpool Hose Assembly |
| 20 | Seal, NTC |
| 21 | WP8540092 Whirlpool Clamp |
| 22 | WP8182512 Whirlpool Nut Assembly |
| 23 | SCREW |
| 24 | W10250558 Whirlpool Bracket Assembly |
| 25 | W10772613 Whirlpool Outer Tub |
| 26 | WPW10249844 Whirlpool Heater Assembly |
| 27 | WPW10467289 Whirlpool Sensor |
| 28 | W10822553 Whirlpool Washer Shock Absorber |
| 29 | SCREW, REAR COUNTERWEIGHT |
| 30 | WPW10283362 Whirlpool Fan |
| 31 | SUPPORT,VENTILATION FAN |
