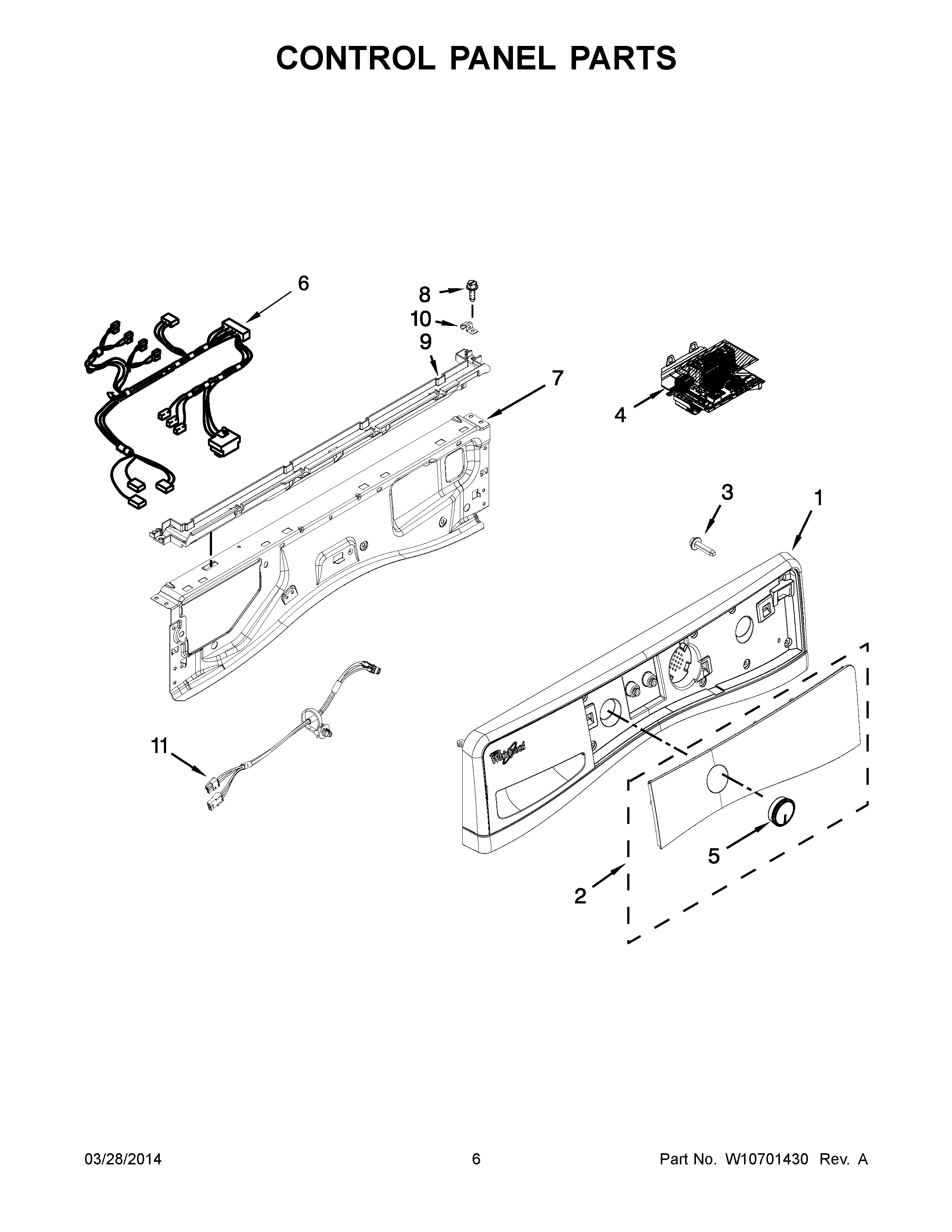

WFW97HEDBD0 04 – CONTROL PANEL PARTS

WFW97HEDBD0 04 – CONTROL PANEL PARTS

Written by

in

WFW97HEDBD0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1W10858319 Whirlpool Console
1ASSEMBLY, CONSOLE (WHITE)
1WPW10463516 Whirlpool Console
1W10433195 Whirlpool Console
2W10750485 Whirlpool Control Panel
2W10750484 Whirlpool Control Panel
2W10750487 Whirlpool Control Panel
2ASSEMBLY, IML (SILVER)
3W10589828 Whirlpool Screw
4W11031839-includeCORE Whirlpool W11031839 Refrigerator Electronic Control Board + Core
5WPW10631127 Whirlpool Knob
5W10631128 Whirlpool Knob Assembly
5W10875909 Whirlpool Timer Knob
6W10586540 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11W10580186 Whirlpool Wire Harness
