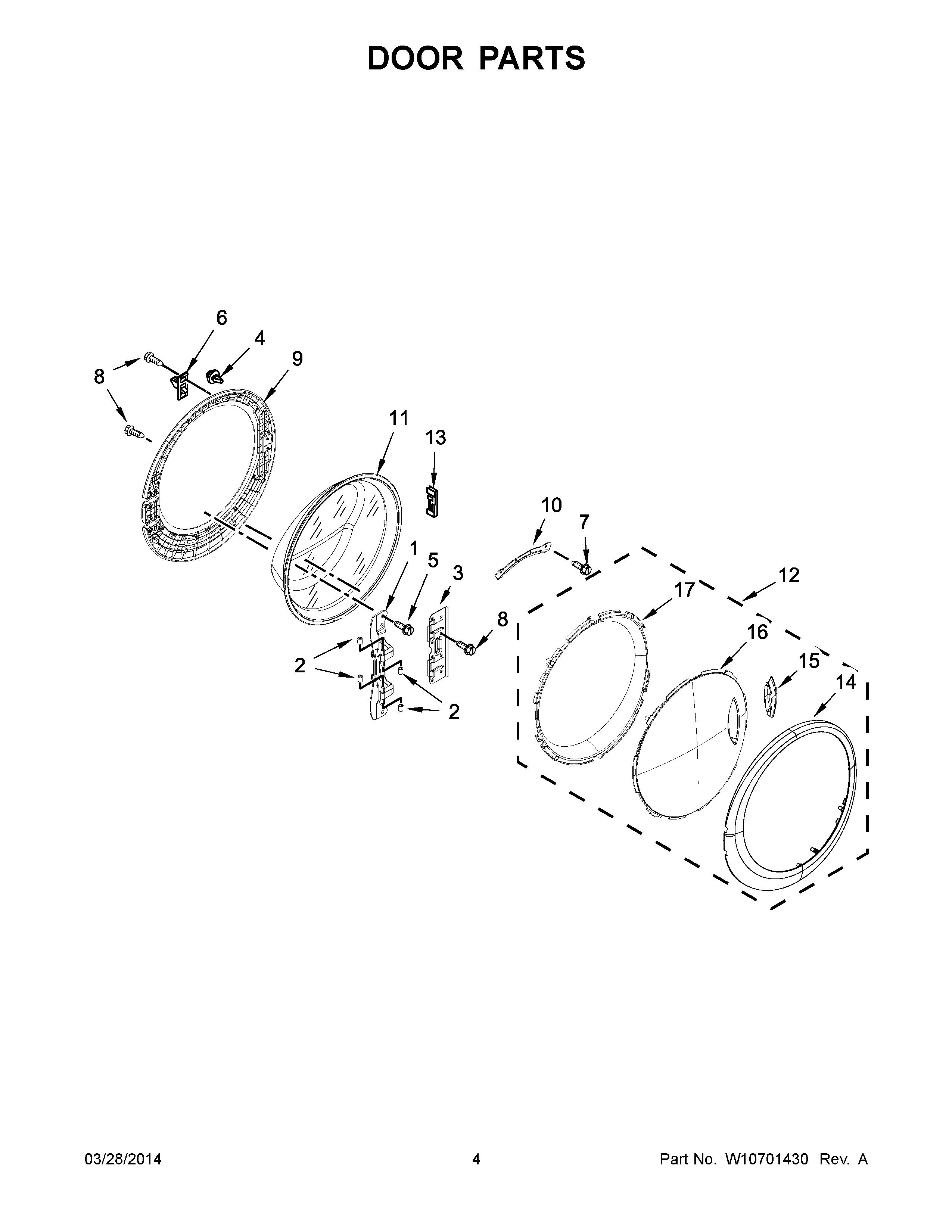

WFW97HEDU0 03 – DOOR PARTS

Products

Position	Product
1	HINGE
2	WPW10208398 Whirlpool Hinge Pin Cap
3	WPW10208419 Whirlpool Plate
4	8572266 Whirlpool Bumper Assembly
5	SCREW
6	WPW10488048 Whirlpool Strike
7	W11230114 Whirlpool Screw Assembly
8	WP8534022 Whirlpool Screw
9	WPW10208275 Whirlpool Inner Door Assembly
10	W10295703 Whirlpool Clamp Assembly
11	GLASS, DOOR
12	DOOR, OUTER ASSEMBLY
13	CLAMP, GLASS SUPPORT
14	W11099174 Whirlpool Trim Ring
15	W10208411 Whirlpool Handle
16	SCREEN, DOOR
17	DOOR INTERMEDIATE
