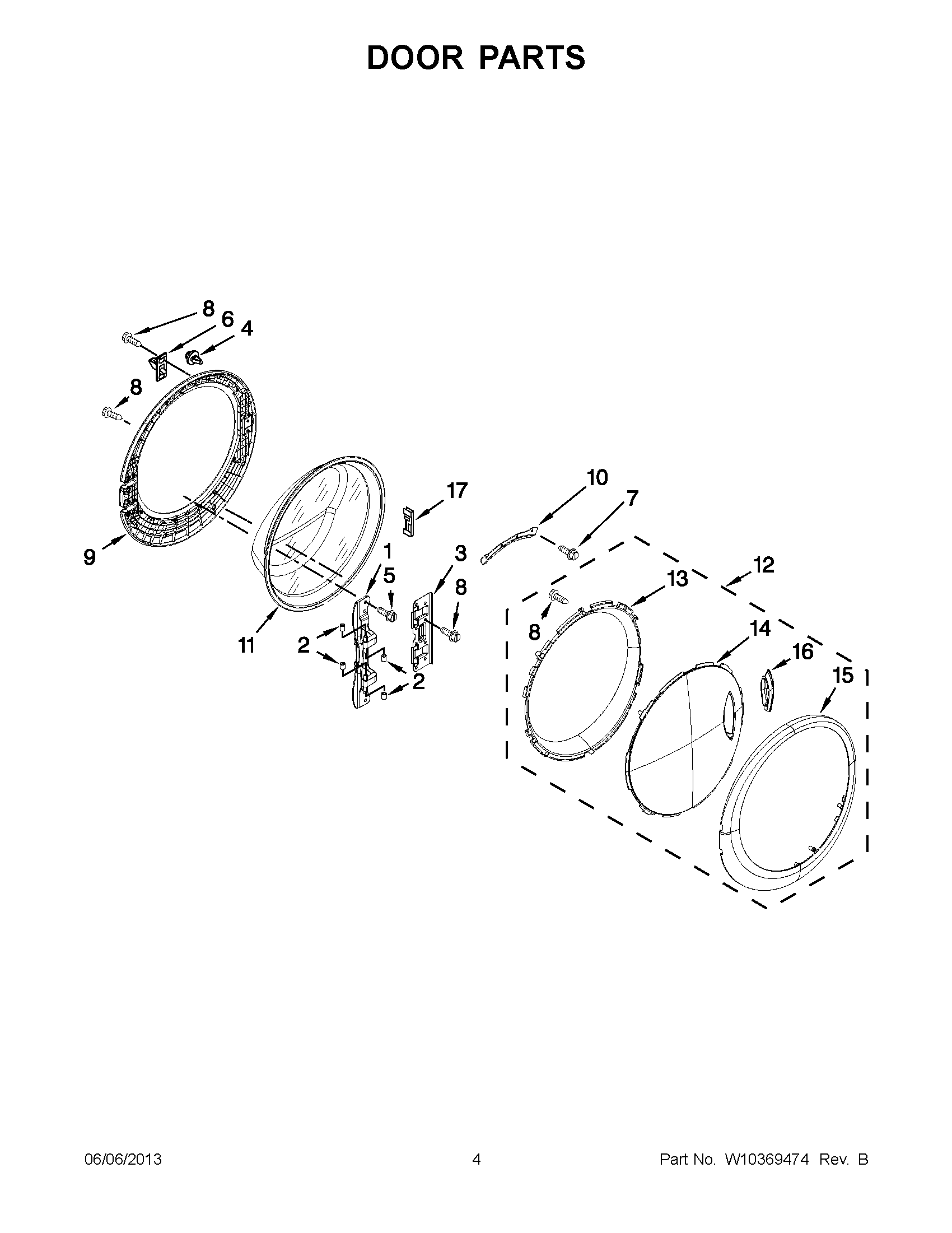

WFW97HEXL1 02 – DOOR PARTS

Products

Position	Product
1	HINGE
2	WPW10208398 Whirlpool Hinge Pin Cap
3	WPW10208419 Whirlpool Plate
4	8572266 Whirlpool Bumper Assembly
5	SCREW
6	WPW10488048 Whirlpool Strike
7	W11230114 Whirlpool Screw Assembly
8	WP8534022 Whirlpool Screw
9	WPW10208275 Whirlpool Inner Door Assembly
10	W10295703 Whirlpool Clamp Assembly
11	WPW10208263 Whirlpool Glass Door
12	DOOR, OUTER ASSEMBLY
13	DOOR INTERMEDIATE
14	SCREEN, DOOR
15	W11099174 Whirlpool Trim Ring
16	W10208411 Whirlpool Handle
17	CLAMP, GLASS SUPPORT
