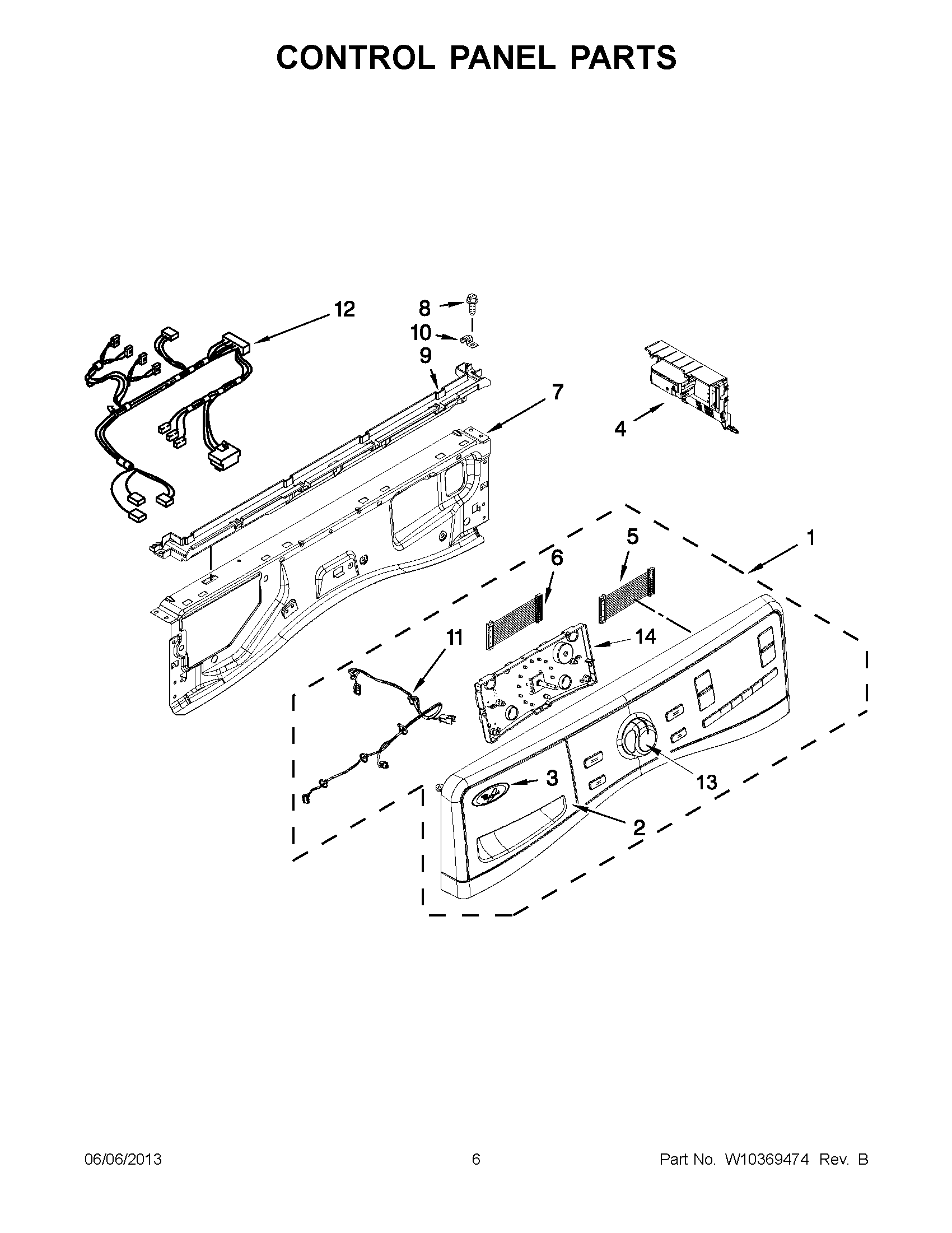

WFW97HEXL1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASSSEMBLY (WHITE)
1	CONSOLE ASSSEMBLY (SILVER)
1	CONSOLE ASSSEMBLY (RED)
2	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
2	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
2	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (WHITE)
3	Medallion
4	CONTROL UNIT, CENTRAL
5	W10267937 Whirlpool Wire Harness
6	HARNESS, JUMPER UI
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	W10271988 Whirlpool Wire Harness
12	W10271981 Whirlpool Wire Harness
13	WPW10251394 Whirlpool Knob
14	UI, CENTER (INCLUDES KNOB)
