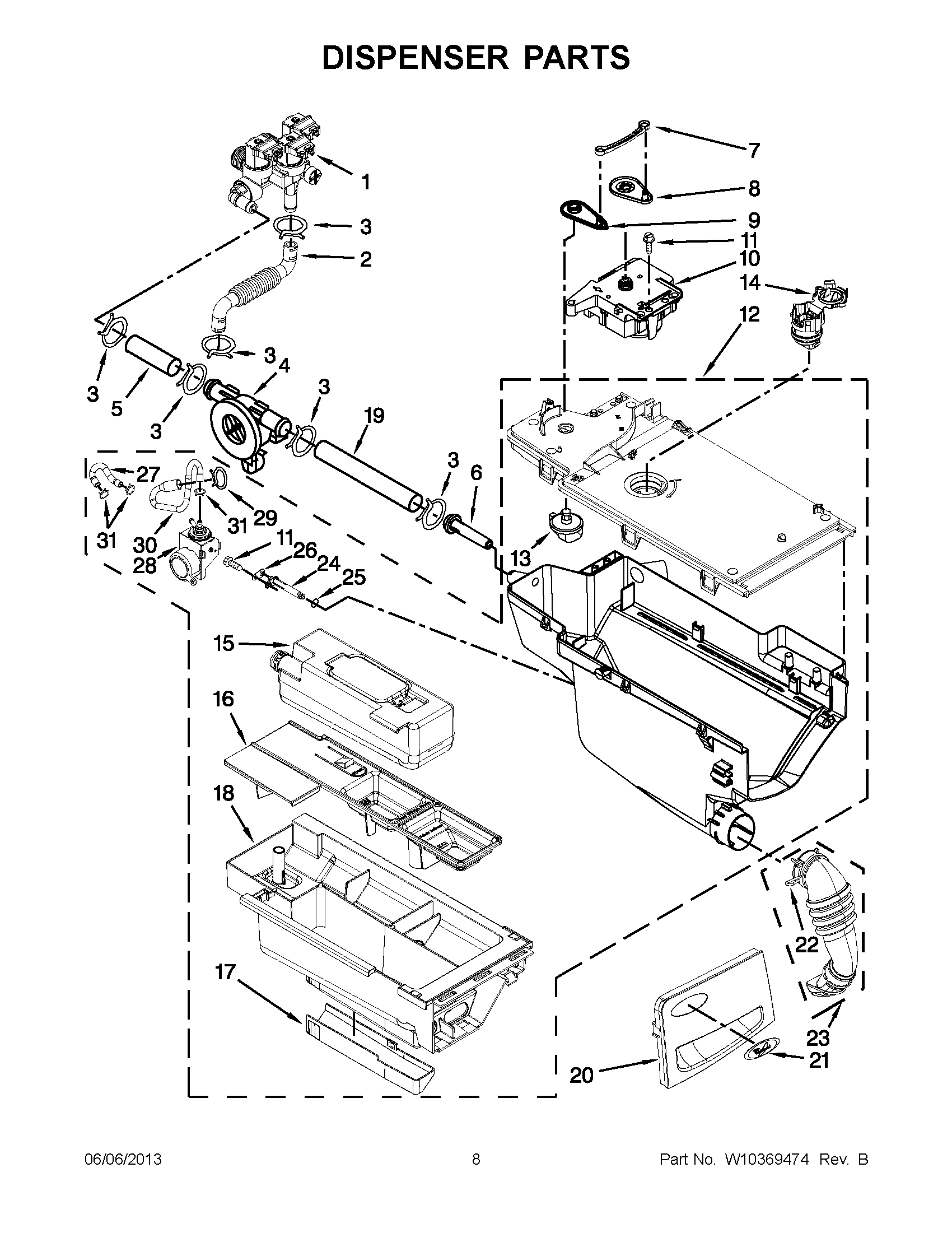

WFW97HEXL1 04 – DISPENSER PARTS

Products

Position	Product
1	WPW10247306 Whirlpool Valve
2	W10239949 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	FLOWMETER WASHER INLET
5	W10538825 Whirlpool Hose
6	WP8183181 Whirlpool Nozzle
7	WP8183183 Whirlpool Lever
8	WP8183184 Whirlpool Actuator Cam
9	WPW10183517 Whirlpool Lever
10	WPW10352973 Whirlpool DIS Switch
11	WP8540282 Whirlpool Screw
12	DISPENSER-WASHER
13	WP8181712 Whirlpool Nozzle
14	WPW10306690 Whirlpool Sensor
15	W10250743A Whirlpool Washer Detergent Dispenser
16	W10256661 Whirlpool Dispenser
17	W10003140 Whirlpool Cover
18	WPW10250723 Whirlpool Drawer
19	W10538827 Whirlpool Hose Appliance
20	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
20	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
20	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (WHITE)
21	Medallion
22	W10239910 Whirlpool Clamp
23	WPW10239966 Whirlpool Hose
24	W10250730 Whirlpool Tube Assembly
25	W10250731 Whirlpool O-Ring
27	W10268381 Whirlpool Hose Assembly
28	W10842325 Whirlpool Dispenser Assembly
30	W10268382 Whirlpool Hose
31	CLAMP, HOSE
