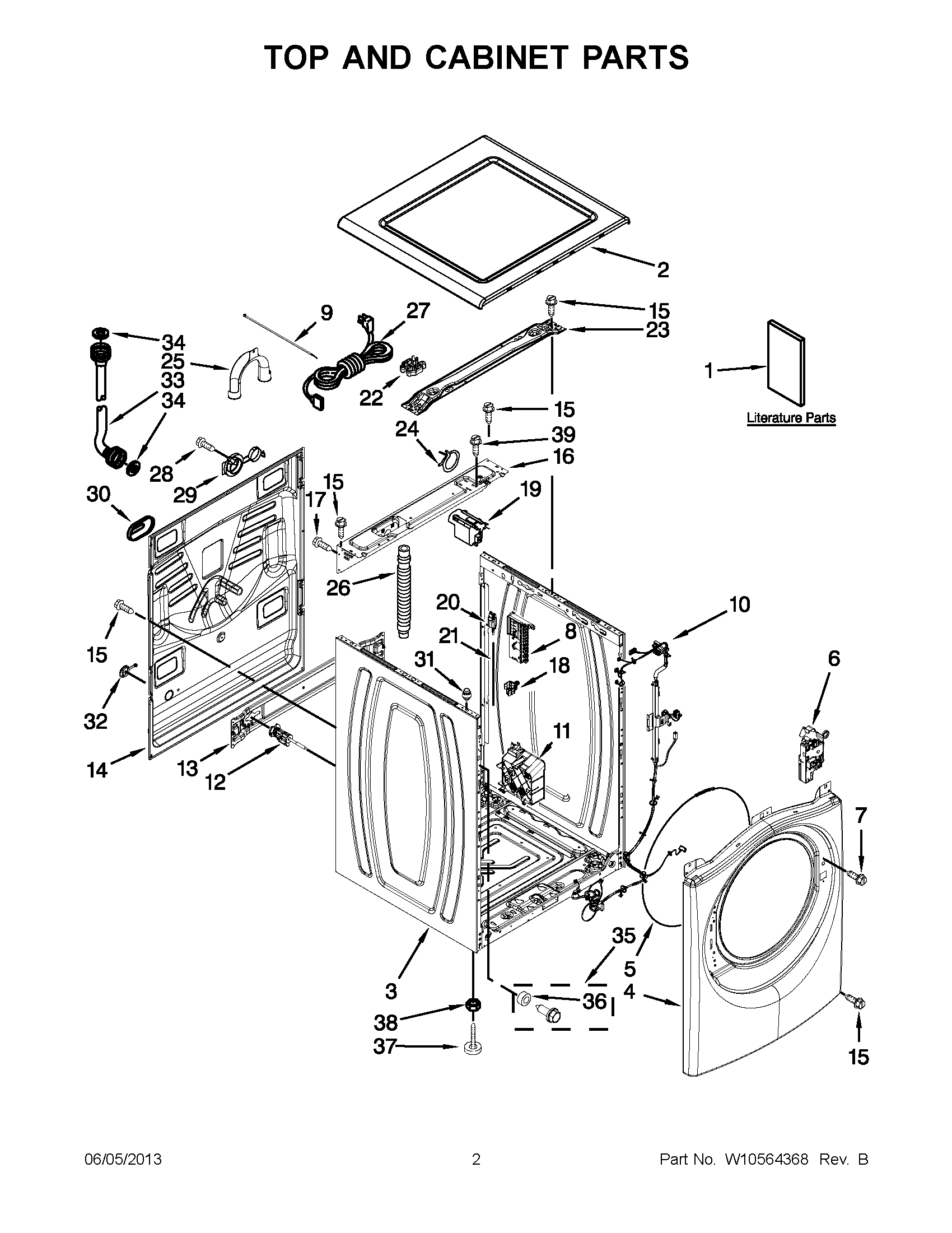

WFW97HEXR3 01 – TOP AND CABINET PARTS
Written by
in
WFW97HEXR3 01 – TOP AND CABINET PARTS
Products
Position
Product
1
ENERGY GUIDE
1
FEATURE BOOKLET
1
TECH SHEET
1
USE & CARE GUIDE
1
INSTALLATION INSTRUCTIONS
2
TOP (RED)
2
WPW10208373 Whirlpool Top
2
WPW10316283 Whirlpool Top Cover
3
CABINET (RED)
3
W11166598 Whirlpool Cabinet
3
W11166595 Whirlpool Cabinet Assembly
4
PANEL, FRONT (RED)
4
PANEL, FRONT (SILVER)
4
WPW10441116 Whirlpool Panel
5
CLAMP
6
LATCH-WASHER DOOR
7
WP8540282 Whirlpool Screw
8
WPW10389927-includeCORE Whirlpool WPW10389927 Washer Electronic Control Board + Core
9
WPW10339879 Whirlpool Wire Tie
10
HARNESS, WIRING (LOWER MAIN)
11
WPW10374126 Whirlpool Control Board + Core
12
W10763470 Whirlpool Bolt
13
W10237498 Whirlpool Bracket Assembly
14
W11199206 Whirlpool Panel
15
WP489464 Whirlpool Refrigerator Screw
16
WPW10467483 Whirlpool Bracket
17
W11230114 Whirlpool Screw Assembly
18
WPW10181028 Whirlpool Clip
19
WPW10367632 Whirlpool Filter
20
WPW10312527 Whirlpool Washer Water Level Switch
21
W11044559 Whirlpool Hose
22
W10245452 Whirlpool Retainer
23
W10467484 Whirlpool Bracket
24
WP356138 Whirlpool Hose Clamp
25
WPW10280024 Whirlpool Retainer
26
W11281268 Whirlpool Hose
27
W11035353 Whirlpool Washer Power Cord
28
WP3351614 Whirlpool Screw
29
W10854051 Whirlpool Cover Assembly
30
WP8540268 Whirlpool Cover Assembly
31
W10208380 Whirlpool Screw
32
W10304004 Whirlpool Cover
33
WP89503 Whirlpool Washer Fill Hose
34
WP16123 Whirlpool Washer
35
W10298211 Whirlpool Stud
36
W10323182 Whirlpool Spacer
37
WPW10001130 Whirlpool Leveling Leg
38
WP3359452 Whirlpool Nut
39
8540329 Whirlpool Screw
←
