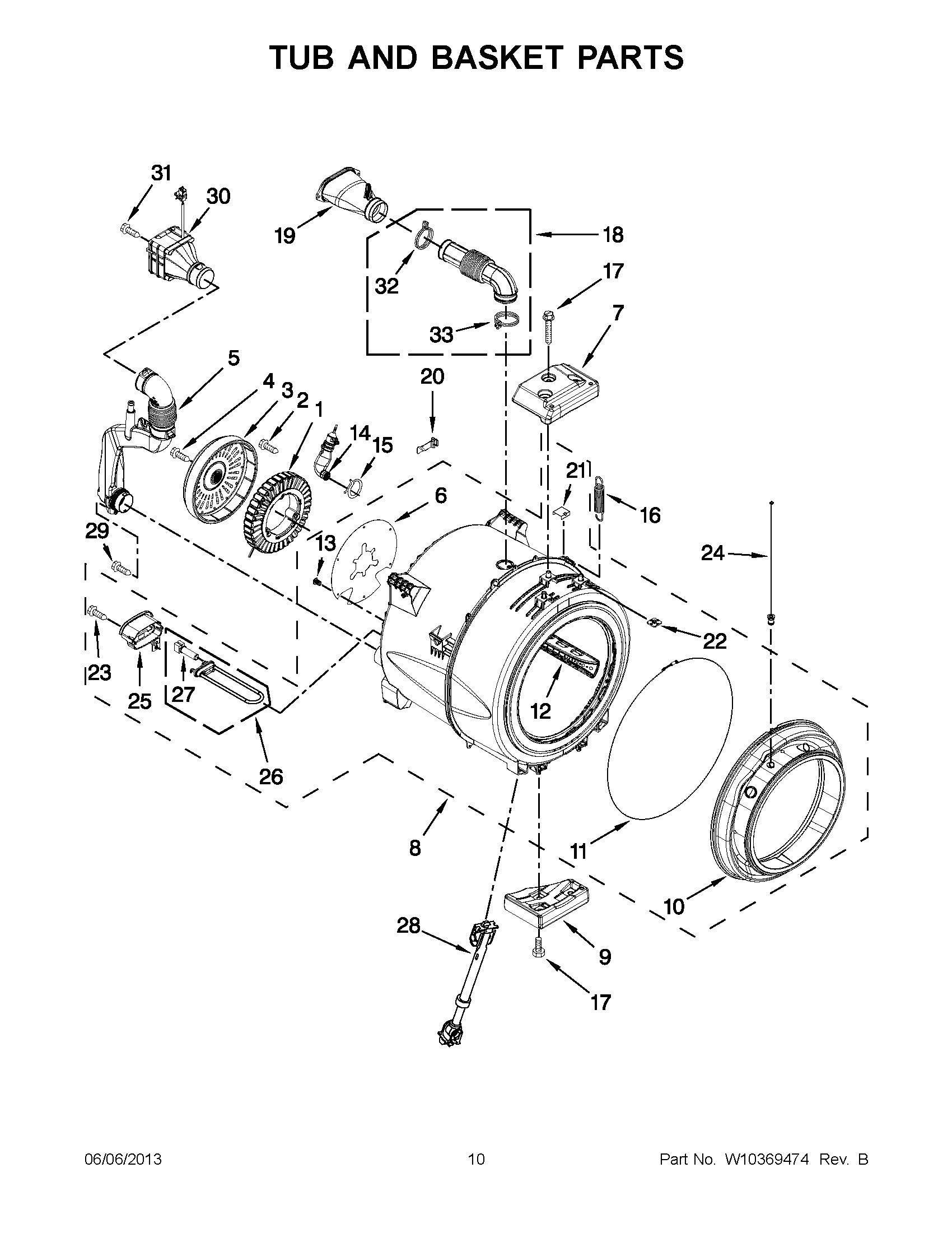

WFW97HEXW1 05 – TUB AND BASKET PARTS

Products

Position	Product
1	W10365754 Whirlpool Stator
2	WPW10253476 Whirlpool Screw
3	W10365755 Whirlpool Rotor
4	W11253212 Whirlpool Dryer Screw
5	PIPE, VENTILATION ASSEMBLY
6	SHIELD, MOTOR
7	W10253014 Whirlpool Counterweight
8	WPW10409998 Whirlpool Outer Tub
9	W10237535 Whirlpool Counterweight
10	WPW10237499 Whirlpool Door Boot Seal
11	W11218344 Whirlpool Boot Seal Retaining Ring
12	W10697830 Whirlpool Baffle
13	RETAINER, PUSH IN
14	WPW10260500 Whirlpool Trap Assembly
15	CLAMP, HOSE
16	W11266650 Whirlpool Spring
17	W10261496 Whirlpool Screw
18	WPW10568614 Whirlpool Hose
19	WPW10352818 Whirlpool Vent Pipe
20	W10316388 Whirlpool Clip Assembly
21	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	WP9740848 Whirlpool Dishwasher Screw
24	LIGHT, LED ASSEMBLY
25	W10318155 Whirlpool Cover
26	WPW10426377 Whirlpool Heater Assembly
27	WPW10467289 Whirlpool Sensor
28	SHOCK-ABSR
29	W10306501 Whirlpool Screw
30	WPW10261587 Whirlpool Fan Assembly
31	SCREW, M4.1-1.8 X 57
32	W10273034 Whirlpool Clamp
33	W10353599 Whirlpool Hose Clamp
