WFW97HEXW3 05 – TUB AND BASKET PARTS

WFW97HEXW3 05 – TUB AND BASKET PARTS

Written by

in

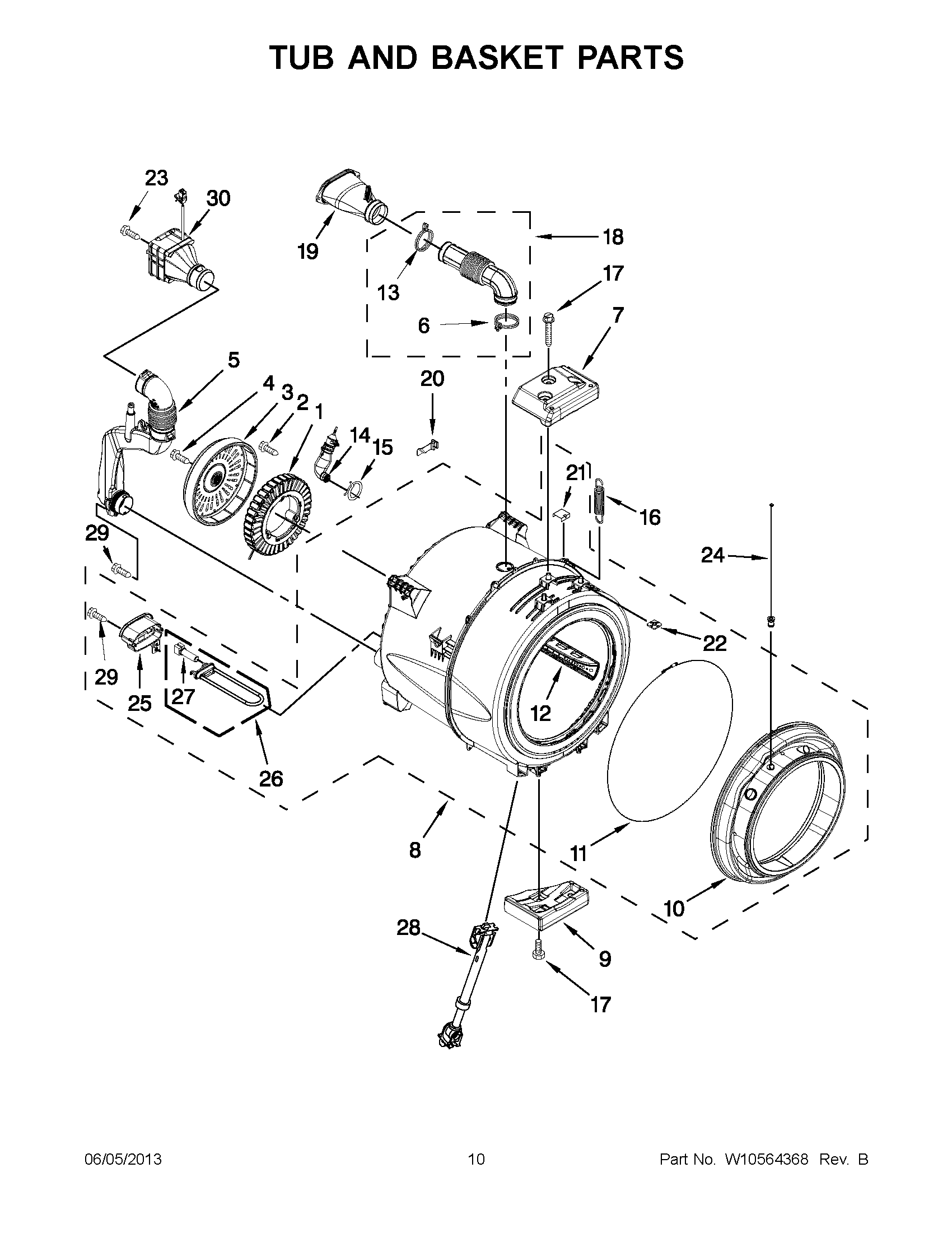

WFW97HEXW3 05 – TUB AND BASKET PARTS

Products

PositionProduct
1W10365754 Whirlpool Stator
2WPW10253476 Whirlpool Screw
3W10365755 Whirlpool Rotor
4W11253212 Whirlpool Dryer Screw
5PIPE, VENTILATION ASSEMBLY
6W10353599 Whirlpool Hose Clamp
7W10253014 Whirlpool Counterweight
8WPW10409998 Whirlpool Outer Tub
9W10237535 Whirlpool Counterweight
10W11173364 Whirlpool Bellows
11W11218344 Whirlpool Boot Seal Retaining Ring
12W10697830 Whirlpool Baffle
13W10273034 Whirlpool Clamp
14WPW10260500 Whirlpool Trap Assembly
15CLAMP, HOSE
16W11266650 Whirlpool Spring
17W10261496 Whirlpool Screw
18WPW10568614 Whirlpool Hose
19WPW10352818 Whirlpool Vent Pipe
20W10316388 Whirlpool Clip Assembly
21WP8540092 Whirlpool Clamp
22WP8182512 Whirlpool Nut Assembly
23WP8540282 Whirlpool Screw
24LIGHT, LED ASSEMBLY
25W10318155 Whirlpool Cover
26WPW10426377 Whirlpool Heater Assembly
27WPW10467289 Whirlpool Sensor
28SHOCK-ABSR
29W10306501 Whirlpool Screw
30WPW10434964 Whirlpool Fan Assembly
