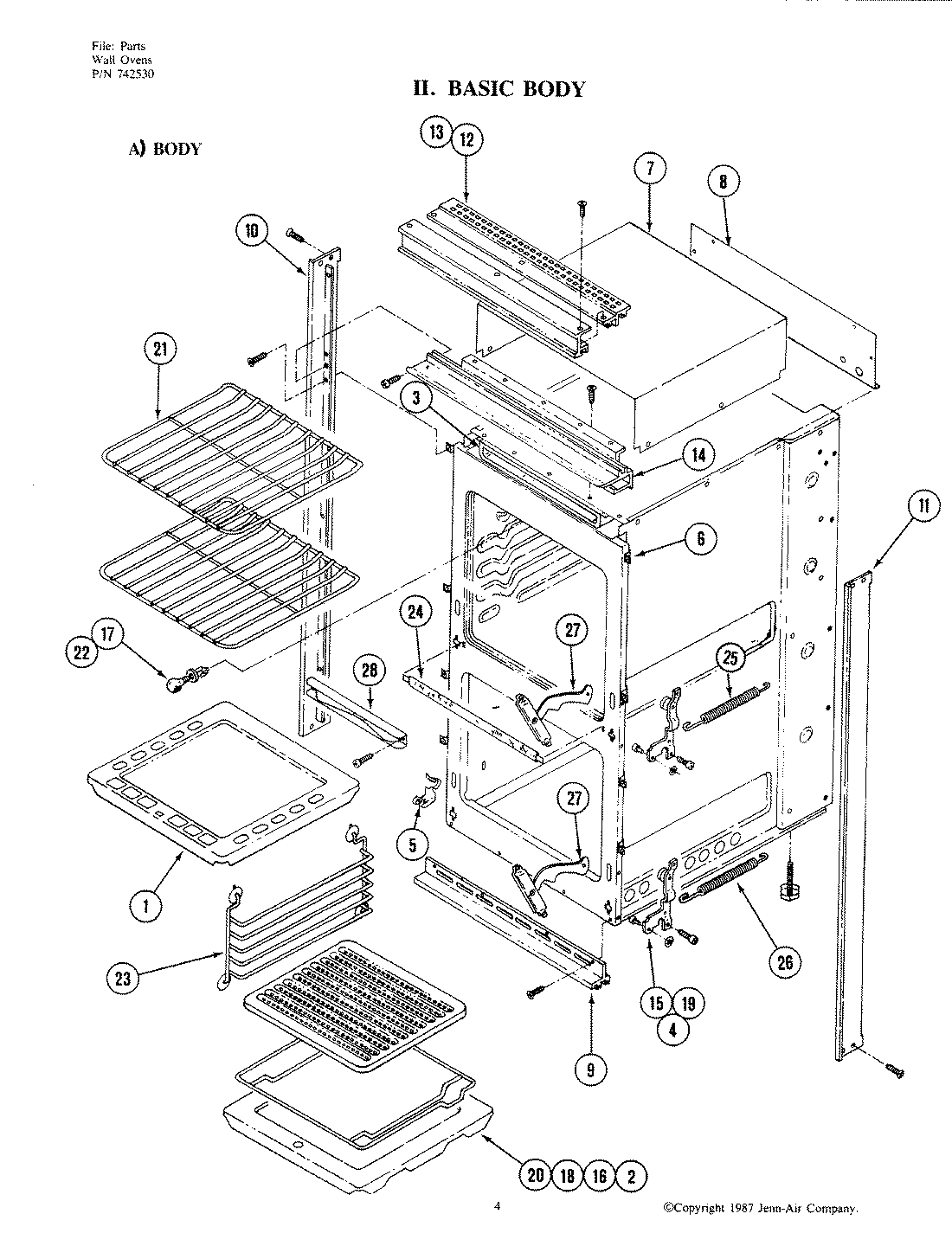

WG200 01 – BODY

Products

PositionProduct
1BOTTOM, OVEN UPPER
1BAFFLE, OVEN FRONT
2BOTTOM, OVEN LOWER
3BOX-FLUE ASSEMBLY
3BUMPER, DOOR
4CLIP, DOOR HINGE
5CLIP, THERMOSTAT BULB
6CLIP, OVEN FRONT
7COVER-WIRE
8NUT-SNAP
8COVER, WIRE, REAR
9EXTRUSION, BOTTOM
10EXTRUSION, SIDE-L
10PANEL L.H.
11EXTRUSION, SIDE-R
11PANEL R.H.
12EXTRUSION, TOP
13EXTRUSION, TOP
14EXTRUSION, VENT
15HINGE, LOWER
15GLASS, CONTROL PANEL
16INSERT, BROIL PAN
17LIGHT-OVEN
18PAN-BROILER
19PIN, DOOR HINGE
20RACK-BROIL
21RACK-OVEN
22RECEPTACLE, OVEN LIGHT
23RUNNER ASSEMBLY
24SEAL, HORIZONTAL
25SPRING, DOOR UPPER
26SPRING, DOOR LOWER
27STOP ASSEMBLY
28SUPPORT, OVEN BOTTOM UPPER
28SUPPORT, OVEN BOTTOM LOWER
28SUPPORT, OVEN
