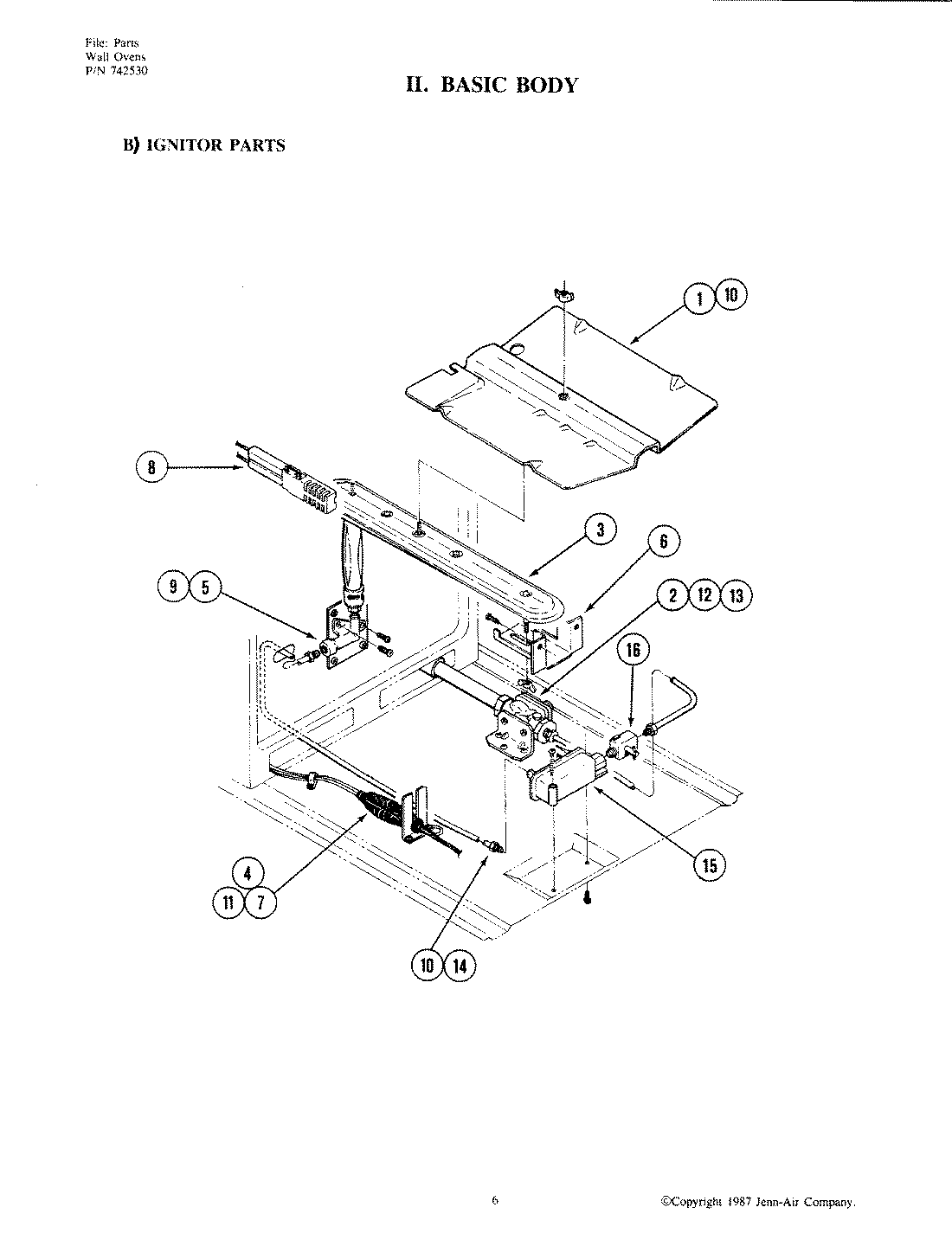

WG200 05 – OVEN CONTROLS

Products

PositionProduct
1BAFFLE, BAKE BURNER
2BRACKET, REGULATOR
3BURNER-OVEN
4CLIP-WIRE
5FITTING, BAKE BURNER
5SUPPORT, FLAME CONTROL
6HANGER, BURNER
7HARNESS-SET
8IGNITER, BAKE BURNER
9NUT & FERRULE
9NUT & FERRULE
10NUT-WING
11PLUG, CORD
12REGULATOR, PRESSURE
13TUBING, REGULATOR
14TUBING-MAIN
15VALVE-BAKE
16VALVE, SHUT OFF
