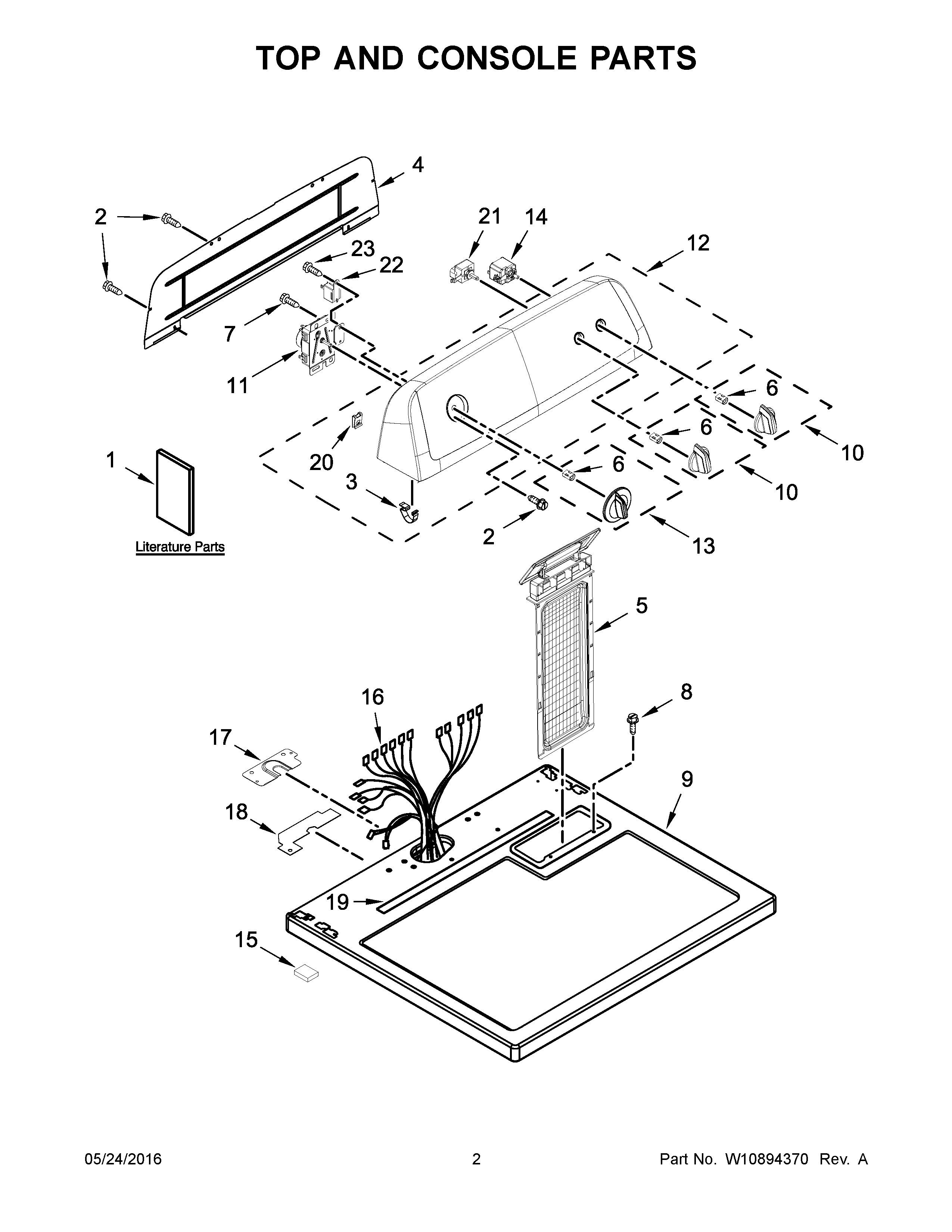

WGD4616FW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	WP693995 Whirlpool Screw
3	WP8312709 Whirlpool Endcap Clip
4	WPW10416486 Whirlpool Rear Panel
5	WPW10717210 Whirlpool Dryer Lint Screen Filter
6	WP8536939 Whirlpool Spring Clip
8	W11693756 Whirlpool Screw Assembly
9	WP8563663 Whirlpool Top Assembly
10	WPW10453947 Whirlpool Knob
11	WPW10436302 Whirlpool Timer
12	W10917343 Whirlpool Console
13	WPW10711289 Whirlpool Washer Control Knob Dryer
14	WPW10446920 Whirlpool Switch Start
15	3389682 Whirlpool Spacer
16	W10865758 Whirlpool Wire Harness
17	BRACKET, HARNESS
18	SEAL, HARNESS
19	W10316616 Whirlpool Seal
20	W11213336 Whirlpool Nut
21	W11661755 Whirlpool Switch
22	WP694419 Whirlpool Buzzer Adjuster
23	WP90767 Whirlpool Screw
