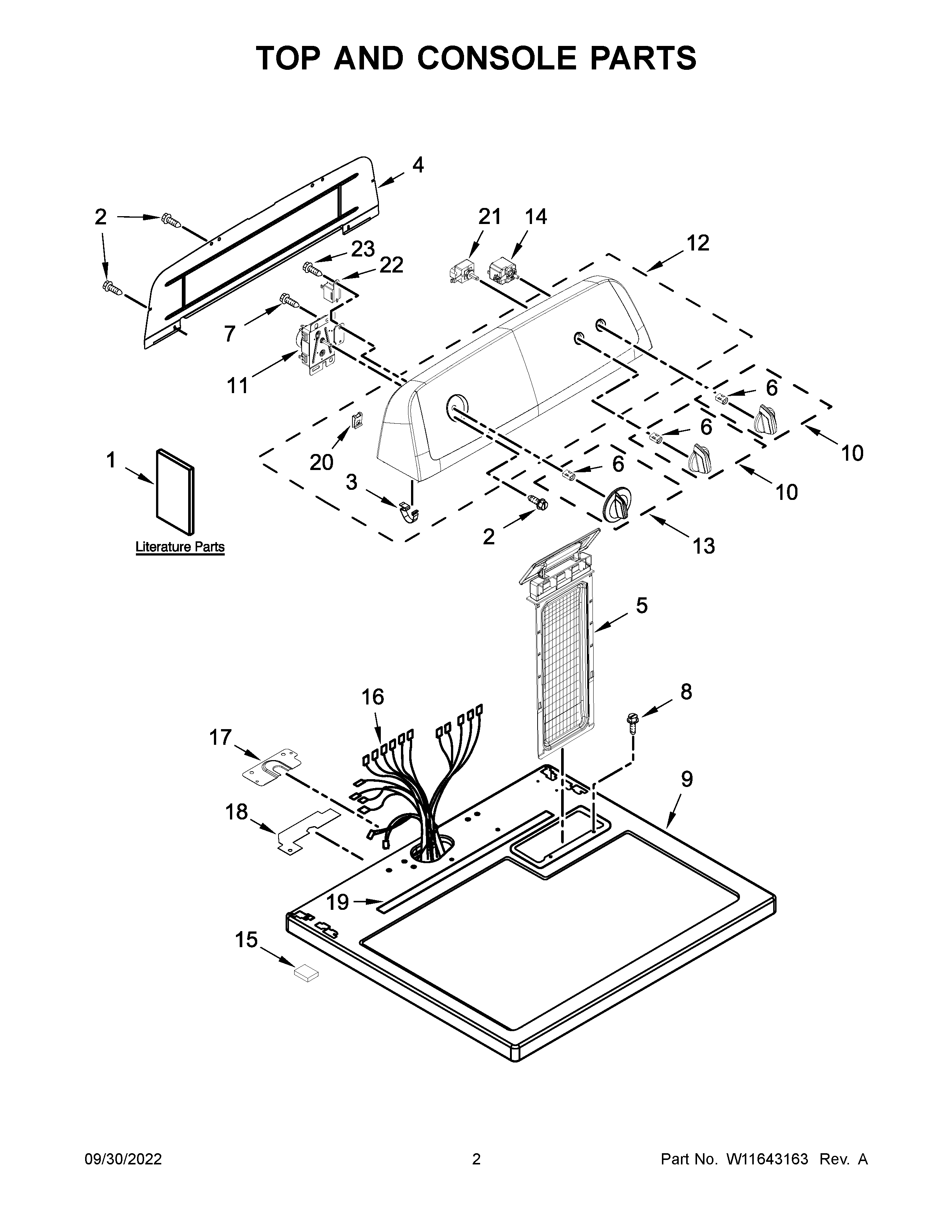

WGD4616FW3 02 – TOP AND CONSOLE PARTS

WGD4616FW3 02 – TOP AND CONSOLE PARTS

Written by

in

WGD4616FW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1OWNERS MANUAL
1CCYCLE GUIDE
1AQUICK START GUIDE
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WPW10416486 Whirlpool Rear Panel
5W11607443 Whirlpool Dryer Screen
6WP8536939 Whirlpool Spring Clip
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453947 Whirlpool Knob
11WPW10436302 Whirlpool Timer
12W10917343 Whirlpool Console
13WPW10711289 Whirlpool Washer Control Knob Dryer
14WPW10446920 Whirlpool Switch Start
153389682 Whirlpool Spacer
16HARNESS, MAIN
17BRACKET, HARNESS
18SEAL, HARNESS
19W10316616 Whirlpool Seal
20W11213336 Whirlpool Nut
21W11661755 Whirlpool Switch
22WP694419 Whirlpool Buzzer Adjuster
23WP90767 Whirlpool Screw
