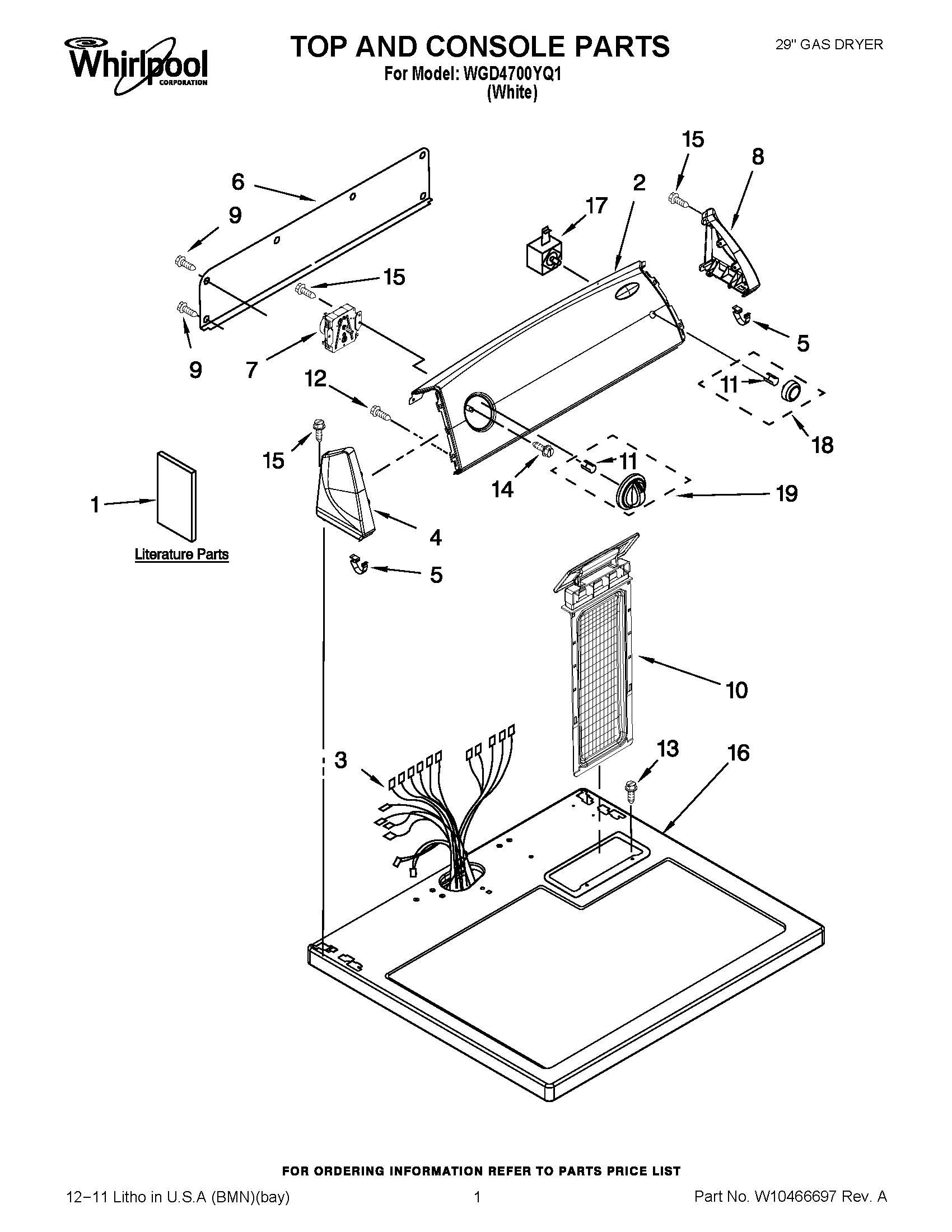

WGD4700YQ1 01 – TOP AND CONSOLE PARTS

WGD4700YQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD4700YQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1INSTALLATION, INSTRUCTIONS
1GUIDE, USE AND CARE
2CONSOLE PANEL & BRACKET ASSEMBLY
3W10186074 Whirlpool Wire Harness
4WP8565957 Whirlpool Endcap Assembly
5WP8312709 Whirlpool Endcap Clip
6W10103406 Whirlpool Rear Panel
7TIMER
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WP3977456 Whirlpool Start Switch
18W10034770 Whirlpool Knob Assembly
19TIMER KNOB ASSEMBLY
