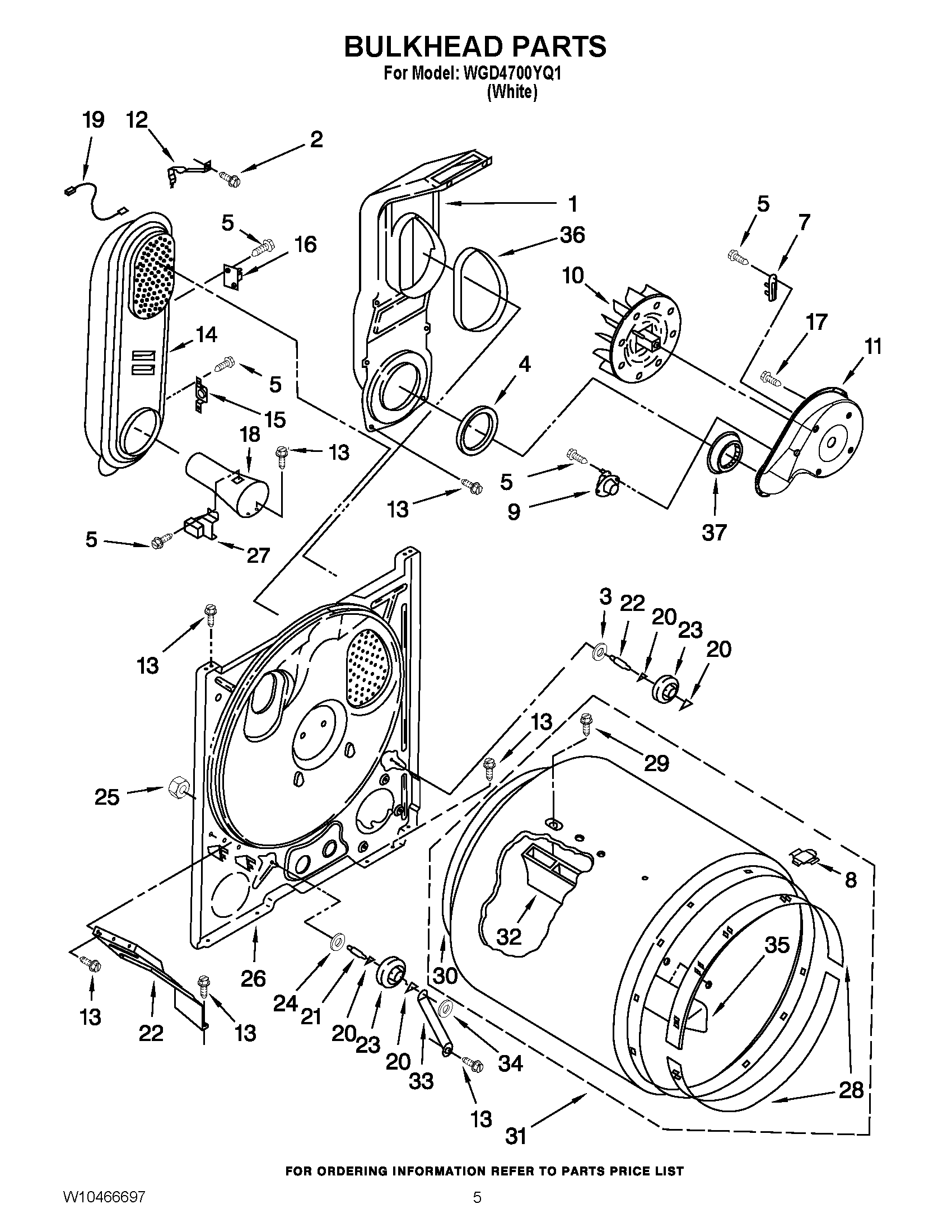

WGD4700YQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	WP3390631 Whirlpool Screw
14	279980 Whirlpool Box
16	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP8066049 Whirlpool Funnel Assembly
19	WP3401707 Whirlpool Wire Assembly
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	SHAFT SUPPORT ROLLER DRYER
22A	W11398682 Whirlpool Bracket
22	SHAFT SUPPORT ROLLER DRYER
23	349241T Whirlpool Dryer Drum Support Roller Kit
24	WP348197 Whirlpool Washer Assembly
25	W11229607 Whirlpool Nut
26	W11178667 Whirlpool Bulkhead Assembly
27	WP338906 Whirlpool Dryer Gas Sensor
28	279441 Whirlpool Front Bearing Ring
29	W10853898 Whirlpool Screw
30	W10612022 Whirlpool Felt Seal
31	W10899578 Whirlpool Dryer Drum Assembly
32	BAFFLE-DRM
33	W11684613 Whirlpool Bracket
34	WP90296 Whirlpool Clip
35	WP3403636 Whirlpool Drum Baffle
36	SEAL
37	W11233063 Whirlpool Shield Assembly
