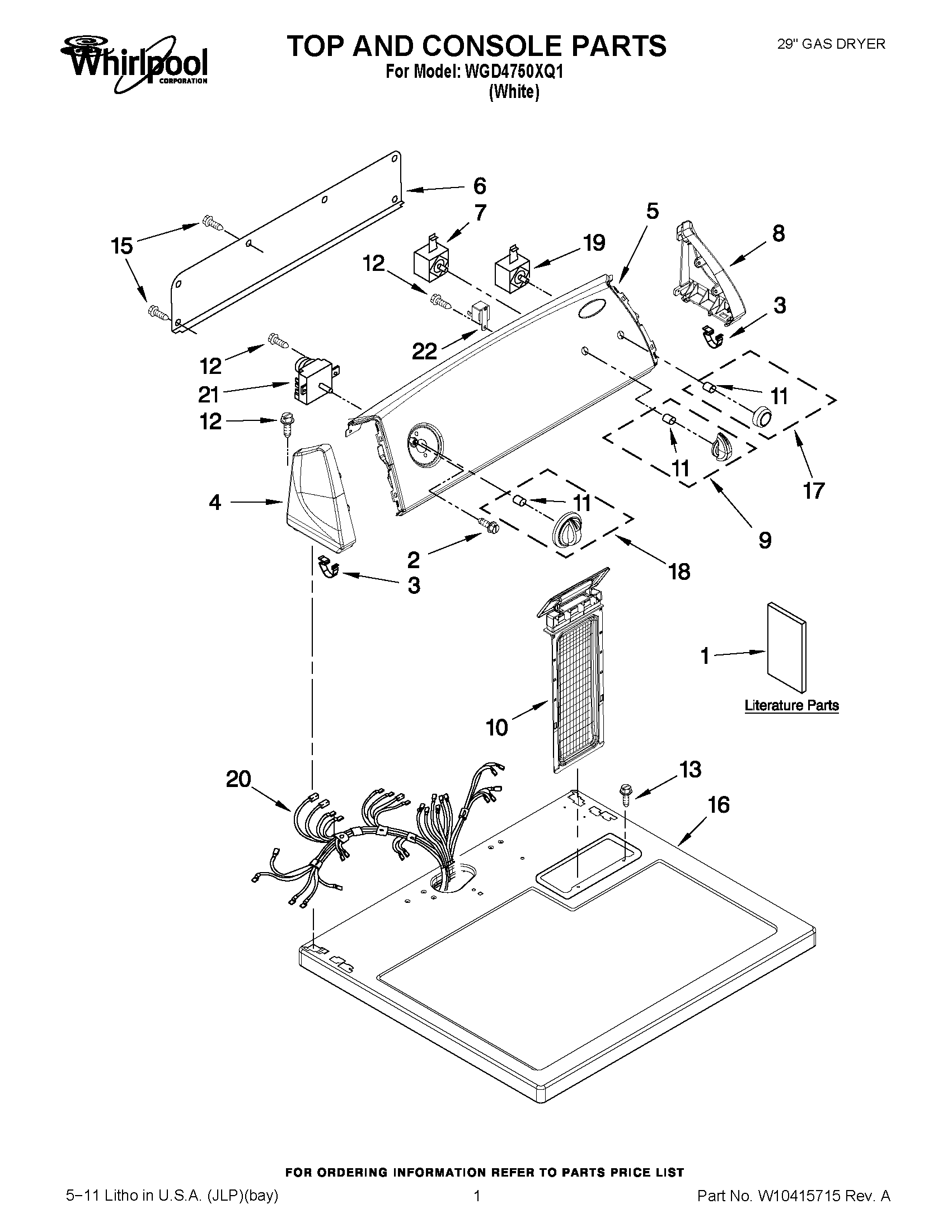

WGD4750XQ1 01 – TOP AND CONSOLE PARTS

WGD4750XQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD4750XQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
2W10850756 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WP8565957 Whirlpool Endcap Assembly
5CONTROL PANEL & BRACKET ASSEMBLY
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WP8565954 Whirlpool Endcap
9Knob, Control (3)
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17W10034770 Whirlpool Knob Assembly
18TIMER KNOB ASSEMBLY
19WP3977456 Whirlpool Start Switch
20HARNESS, WIRING
21W11043385 Whirlpool Timer
22WP694419 Whirlpool Buzzer Adjuster
