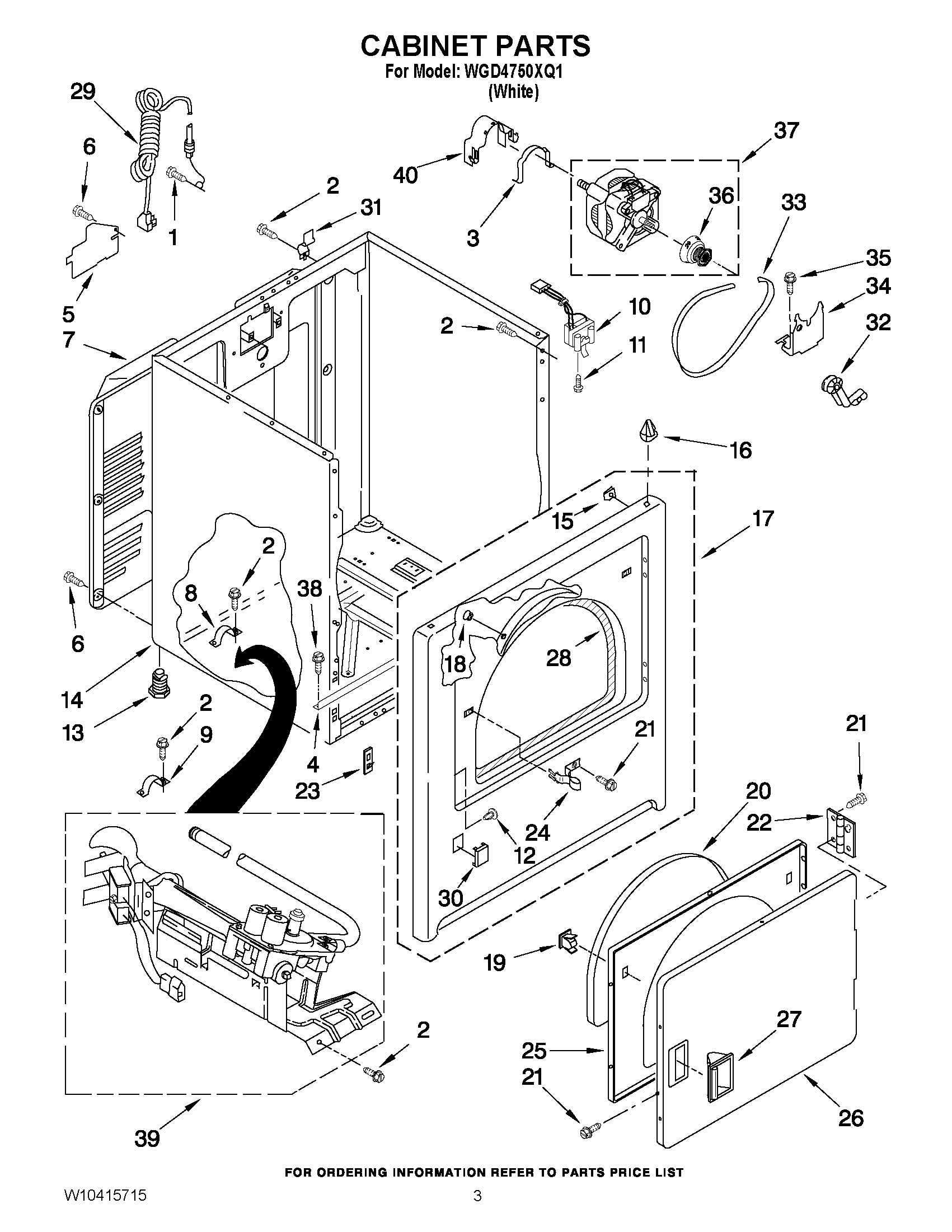

WGD4750XQ1 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	CLAMP
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280040 Whirlpool Rear Panel
9	341029 Whirlpool Clamp
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	49621 Whirlpool Leveling Feet
14	8533643 Whirlpool Dryer White Cabinet
15	WP98234 Whirlpool Nut
16	WP18776 Whirlpool Lock
17	Front Panel Assembly (White)
18	279220 Whirlpool Clip
19	279570 Whirlpool Dryer Door Latch Kit
20	SEAL-DOOR DRYER
21	WP488627 Whirlpool Refrigerator Screw
22	WPW10362431 Whirlpool Hinge Assembly
23	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
25	Door, Rear
26	WP3403361 Whirlpool Door
27	WPW10549553 Whirlpool Dryer Door Handle
28	279264 Whirlpool Bearing and Seal Kit
29	W11222083 Whirlpool Power Cord
30	W10811916 Whirlpool Plug
31	WP8066217 Whirlpool Hinge
32	WP691366 Whirlpool Dryer Idler Pulley Assembly
33	341241 Whirlpool Dryer Drum Belt
34	WP348780 Whirlpool Base
35	3400500 Whirlpool Screw
36	WP8066184 Whirlpool Dryer Motor Pulley
37	279827 Whirlpool Dryer Drive Motor
38	WP3390631 Whirlpool Screw
39	W10823508 Whirlpool Gas Burner
40	WP3404162 Whirlpool Clamp
