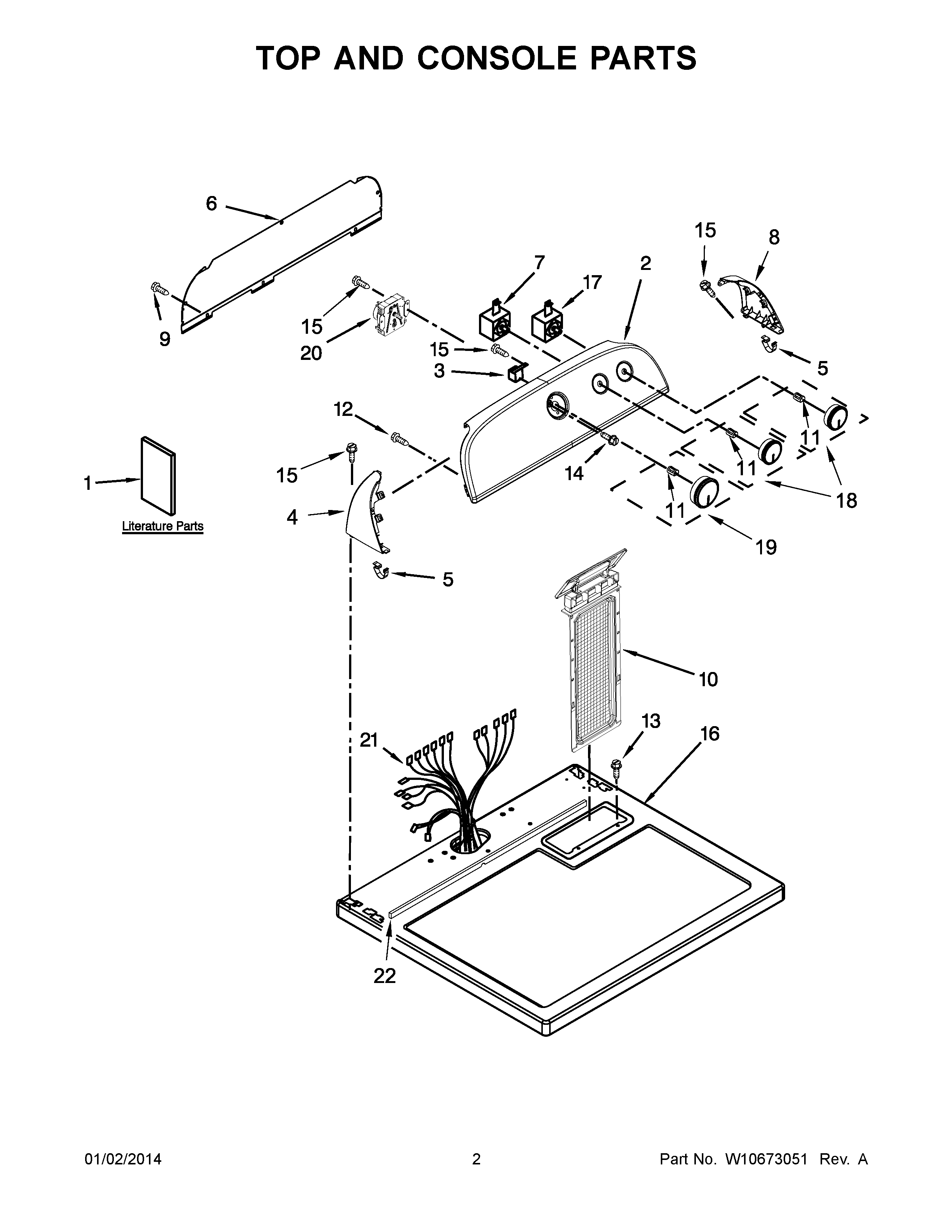

WGD4800BQ1 02 – TOP AND CONSOLE PARTS

WGD4800BQ1 02 – TOP AND CONSOLE PARTS

Written by

in

WGD4800BQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
2WPW10557237 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7WP3399640 Whirlpool Switch
8WPW10520780 Whirlpool Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP693995 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
19W10756270 Whirlpool Dryer Timer Knob
20WPW10185981 Whirlpool Timer
21W10640701 Whirlpool Wire Harness
22W10316616 Whirlpool Seal
