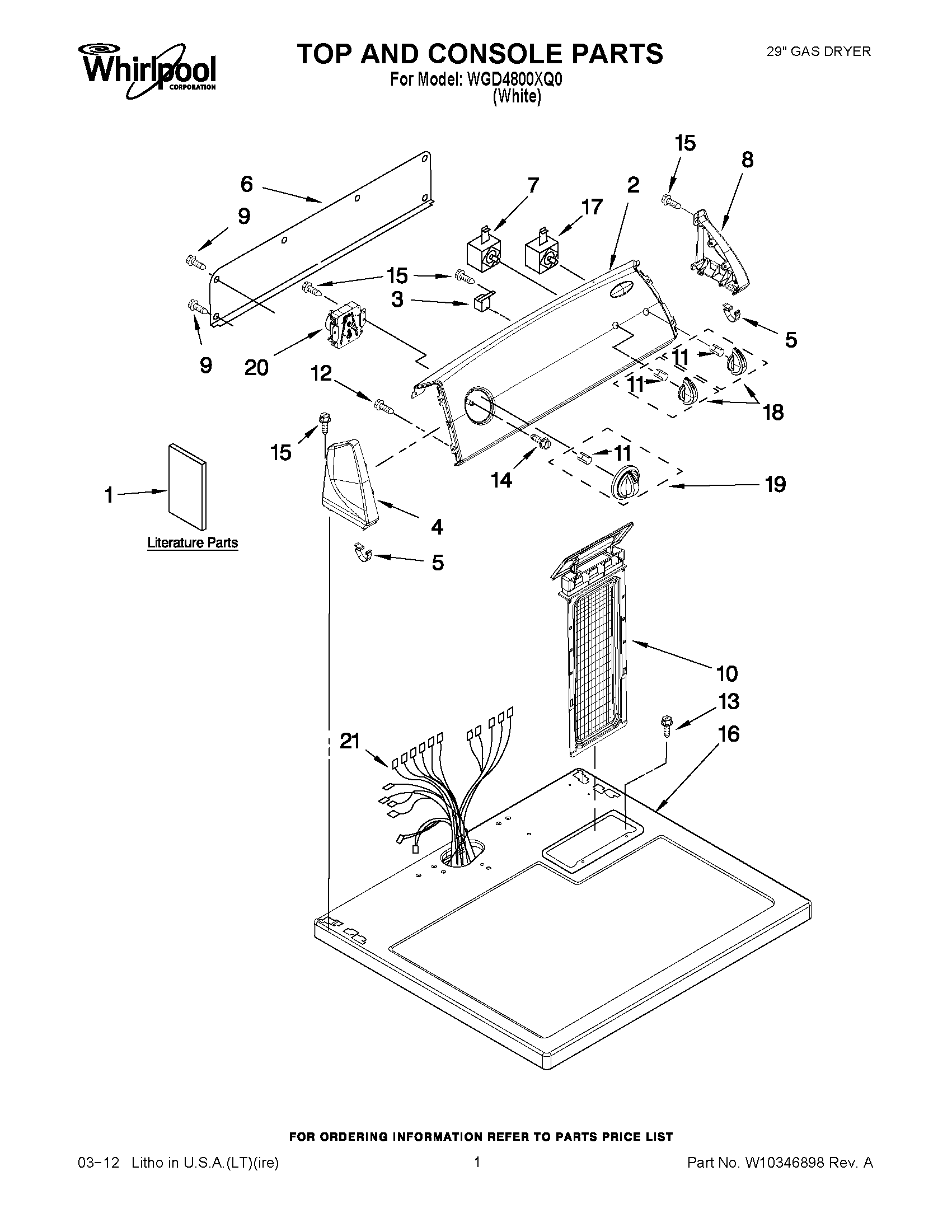

WGD4800XQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1B	Wiring Diagram
1A	GUIDE, USE AND CARE
2	WPW10295262 Whirlpool Control Panel
3	WP694419 Whirlpool Buzzer Adjuster
4	WP8565957 Whirlpool Endcap Assembly
5	WP8312709 Whirlpool Endcap Clip
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	WP8565954 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP90767 Whirlpool Screw
16	WP8563663 Whirlpool Top Assembly
17	WPW10117655 Whirlpool Dryer Start Switch
18	Knob, Control (3)
19	TIMER KNOB ASSEMBLY
20	WPW10185981 Whirlpool Timer
21	W10740201 Whirlpool Wire Harness
