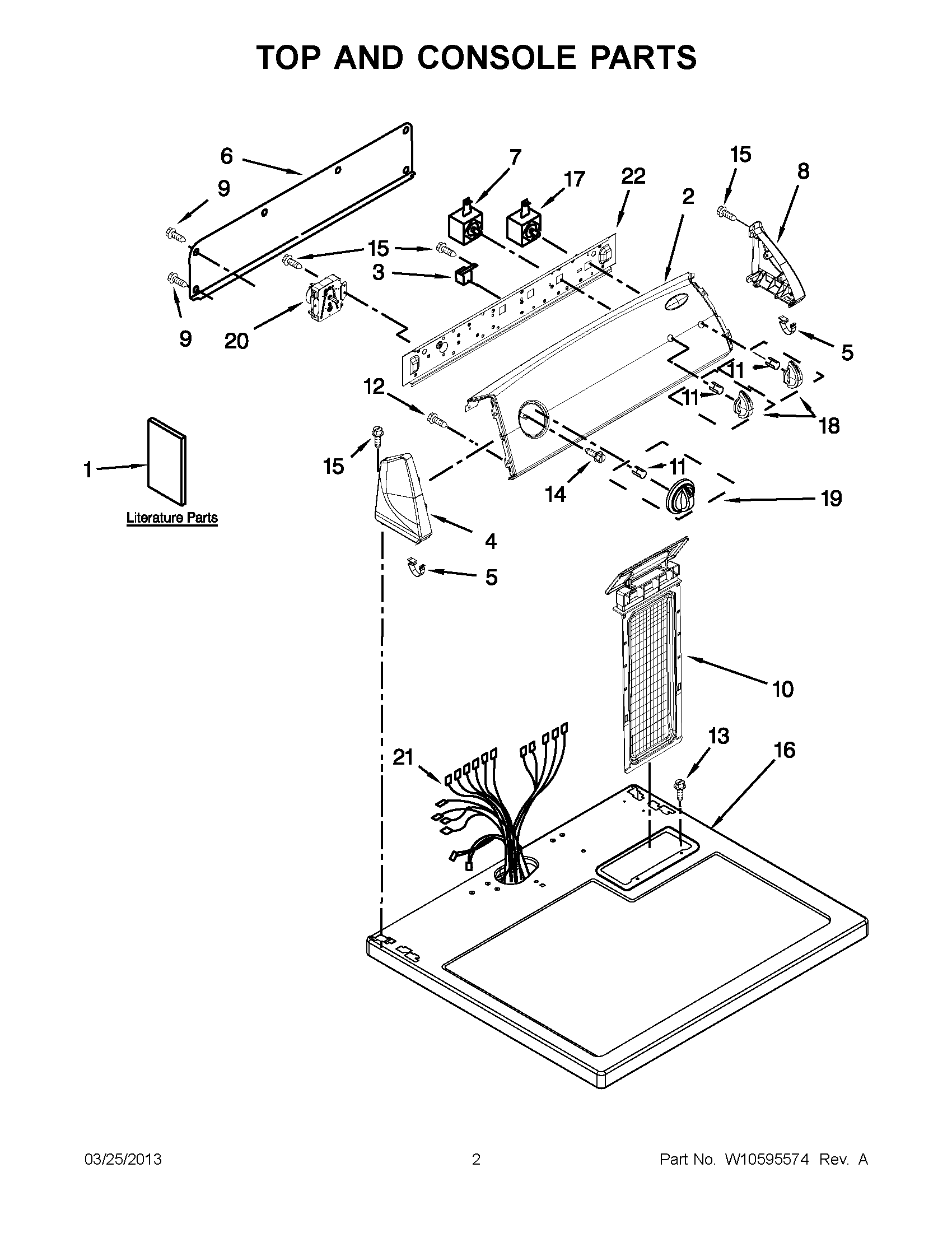

WGD4800XQ3 01 – TOP AND CONSOLE PARTS

WGD4800XQ3 01 – TOP AND CONSOLE PARTS

Written by

in

WGD4800XQ3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1GUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
2WPW10295262 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5WP8312709 Whirlpool Endcap Clip
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WP8565954 Whirlpool Endcap
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP693995 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
18Knob, Control (3)
19TIMER KNOB ASSEMBLY
20WPW10185981 Whirlpool Timer
21W10740201 Whirlpool Wire Harness
228566052 Whirlpool Bracket
