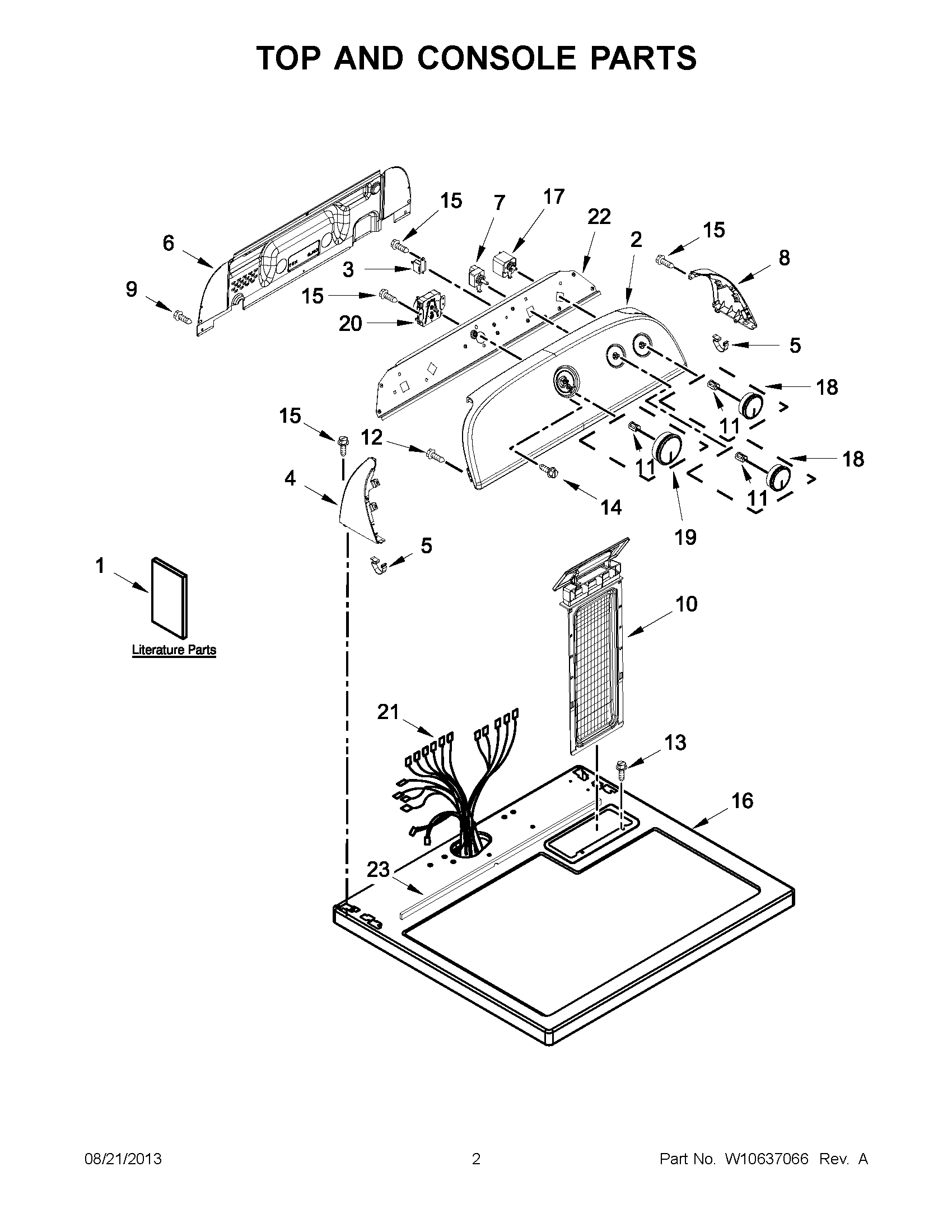

WGD4810BQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	WIRING DIAGRAM
1	USE AND CARE GUIDE
2	WPW10557238 Whirlpool Control Panel Assembly
3	WP694419 Whirlpool Buzzer Adjuster
4	WPW10520782 Whirlpool Panel
5	WP8312709 Whirlpool Endcap Clip
6	W10556829 Whirlpool Rear Panel
7	WP3399640 Whirlpool Switch
8	WPW10520780 Whirlpool Panel
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP489069 Whirlpool Compactor Screw
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP90767 Whirlpool Screw
16	WP8563663 Whirlpool Top Assembly
17	WPW10117655 Whirlpool Dryer Start Switch
19	W10756270 Whirlpool Dryer Timer Knob
20	WPW10185981 Whirlpool Timer
21	HARNESS, WIRING
22	BRACKET, CONTROL
23	W10316616 Whirlpool Seal
