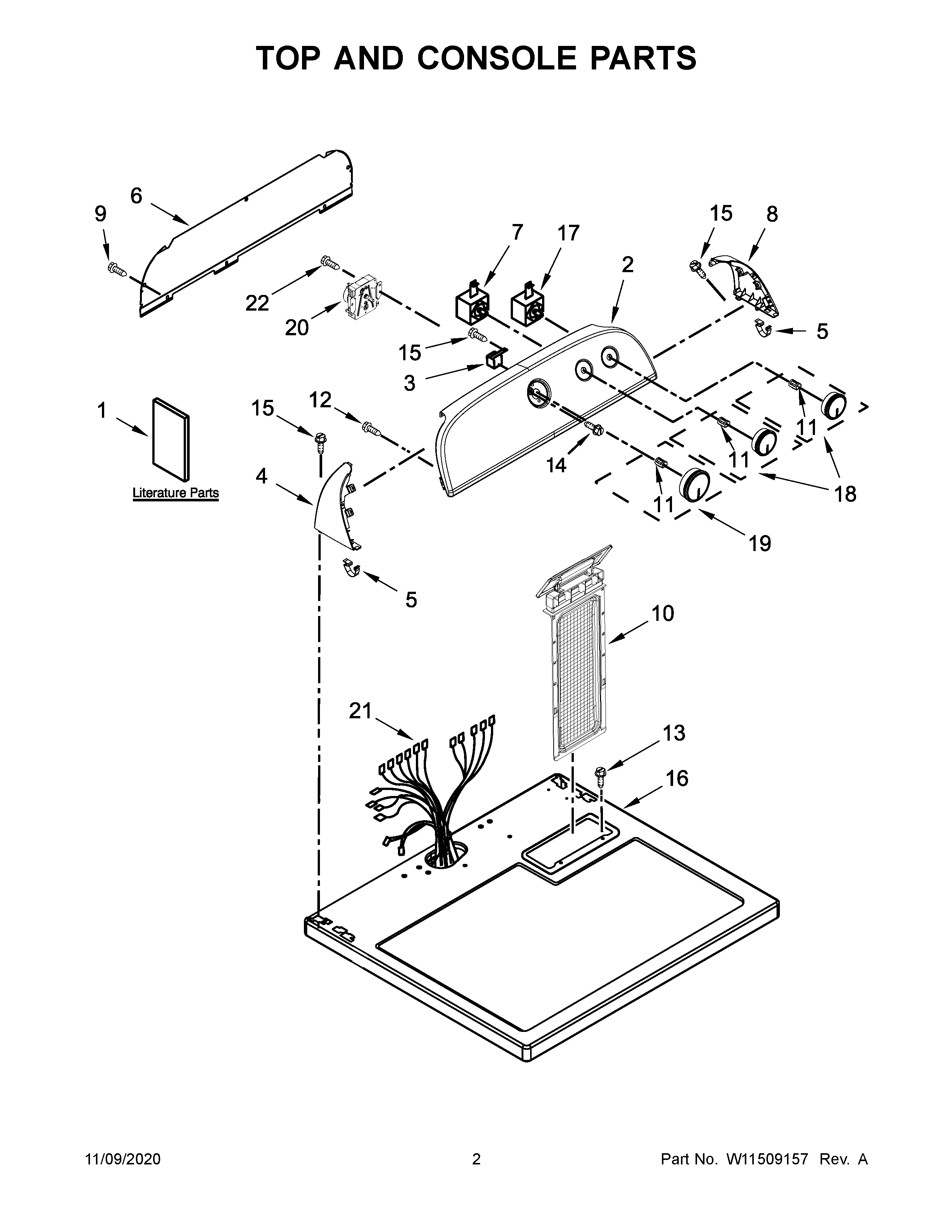

WGD4815EW3 02 – TOP AND CONSOLE PARTS

WGD4815EW3 02 – TOP AND CONSOLE PARTS

Written by

in

WGD4815EW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AQUICK START GUIDE
1OWNERS MANUAL
1BWIRING DIAGRAM
2W10860906 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7W11050715 Whirlpool Switch
8WPW10520780 Whirlpool Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP693995 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
18W11176265 Whirlpool Knob
19W10756270 Whirlpool Dryer Timer Knob
20WPW10185981 Whirlpool Timer
21W10865750 Whirlpool Wire Harness
22WP3400818 Whirlpool Screw
