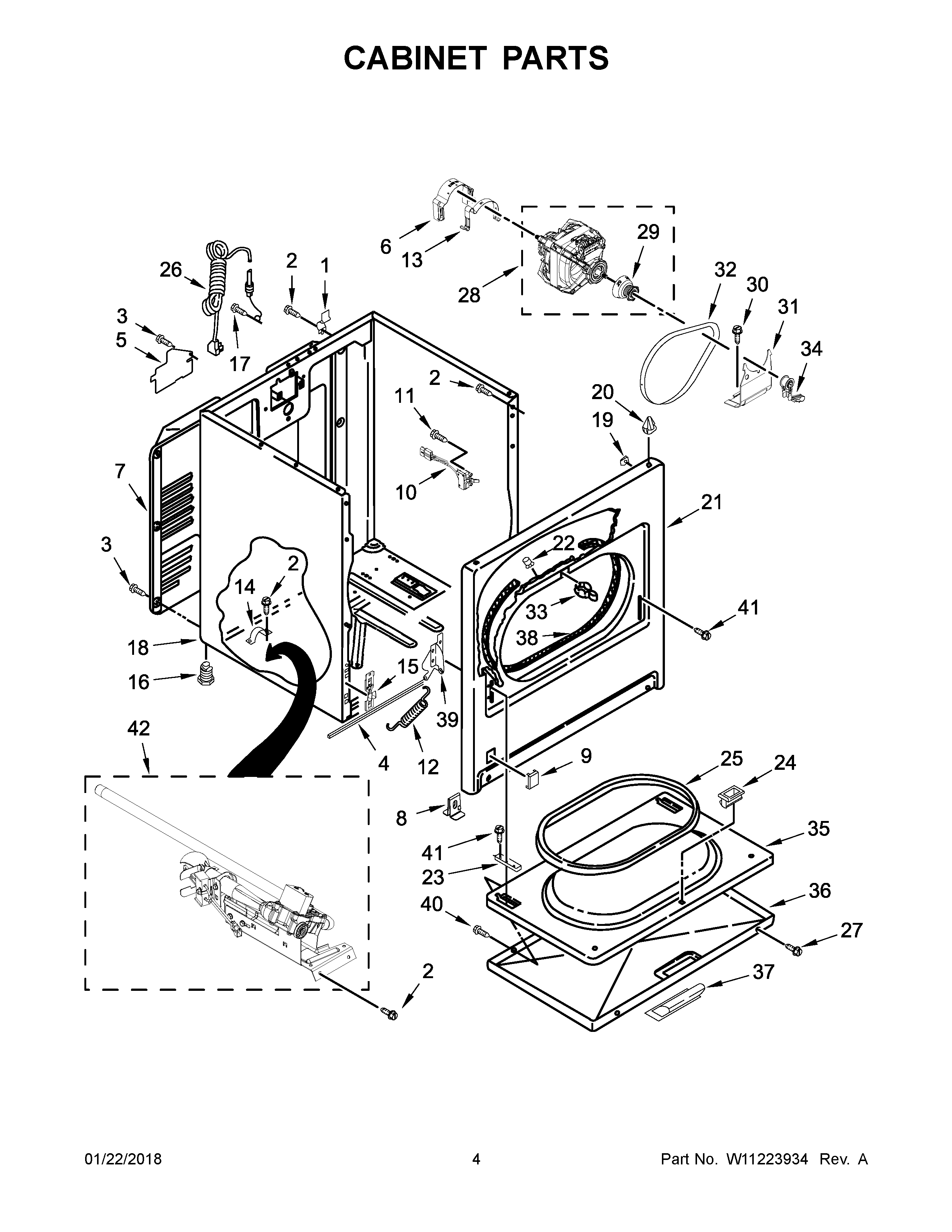

WGD4850HW0 03 – CABINET PARTS

Products

Position	Product
1	WP8066217 Whirlpool Hinge
2	SCREW
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W10575896 Whirlpool Clip
9	W10811916 Whirlpool Plug
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WPW10041960 Whirlpool Door Spring
13	CLAMP
14	341029 Whirlpool Clamp
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
17	W10850756 Whirlpool Screw
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	279740 Whirlpool Panel Primary with O/S2
22	279220 Whirlpool Clip
23	W11252547 Whirlpool Clip Assembly
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11222083 Whirlpool Power Cord
27	WP488627 Whirlpool Refrigerator Screw
28	279827 Whirlpool Dryer Drive Motor
29	WP8066184 Whirlpool Dryer Motor Pulley
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	279570 Whirlpool Dryer Door Latch Kit
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WP695737 Whirlpool Door
36	W10861223 Whirlpool Door Appliance
37	W10861225 Whirlpool Dryer White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	WP8066056 Whirlpool Door Hinge
39A	WP8066057 Whirlpool Door Hinge
40	Screw, 10-32 x 1/2
41	WP308685 Whirlpool Microwave Screw
42	W10823508 Whirlpool Gas Burner
