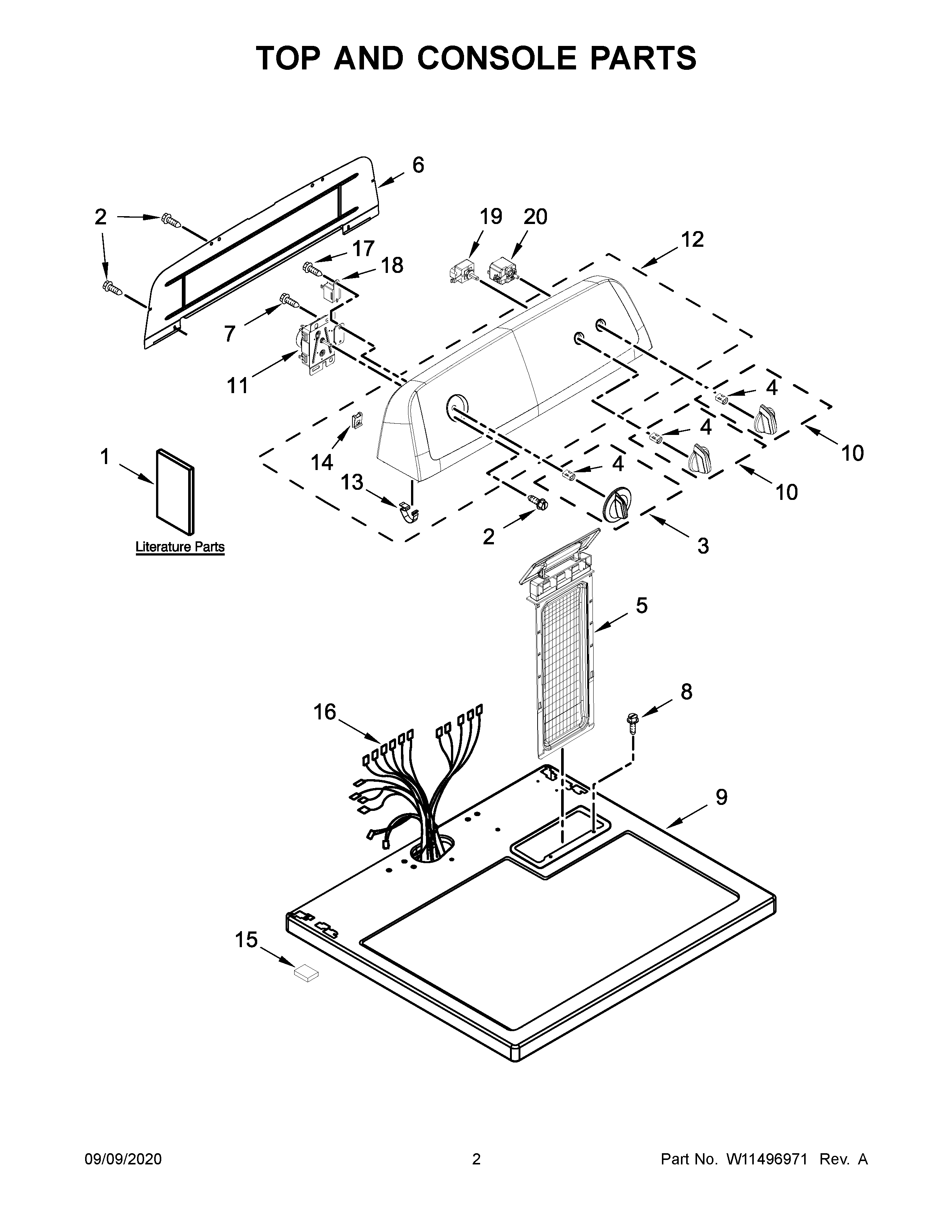

WGD4850HW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1AQUICK START GUIDE
1OWNERS MANUAL
2WP693995 Whirlpool Screw
3W11216549 Whirlpool Knob
4WP8536939 Whirlpool Spring Clip
5WPW10717210 Whirlpool Dryer Lint Screen Filter
6WPW10416486 Whirlpool Rear Panel
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10W11216550 Whirlpool Knob Assembly
11WPW10436302 Whirlpool Timer
12W11216548 Whirlpool Console Assembly
13WP8312709 Whirlpool Endcap Clip
14W11213336 Whirlpool Nut
153389682 Whirlpool Spacer
16W10865758 Whirlpool Wire Harness
17WP90767 Whirlpool Screw
18WP694419 Whirlpool Buzzer Adjuster
19W11661755 Whirlpool Switch
20WPW10446920 Whirlpool Switch Start
