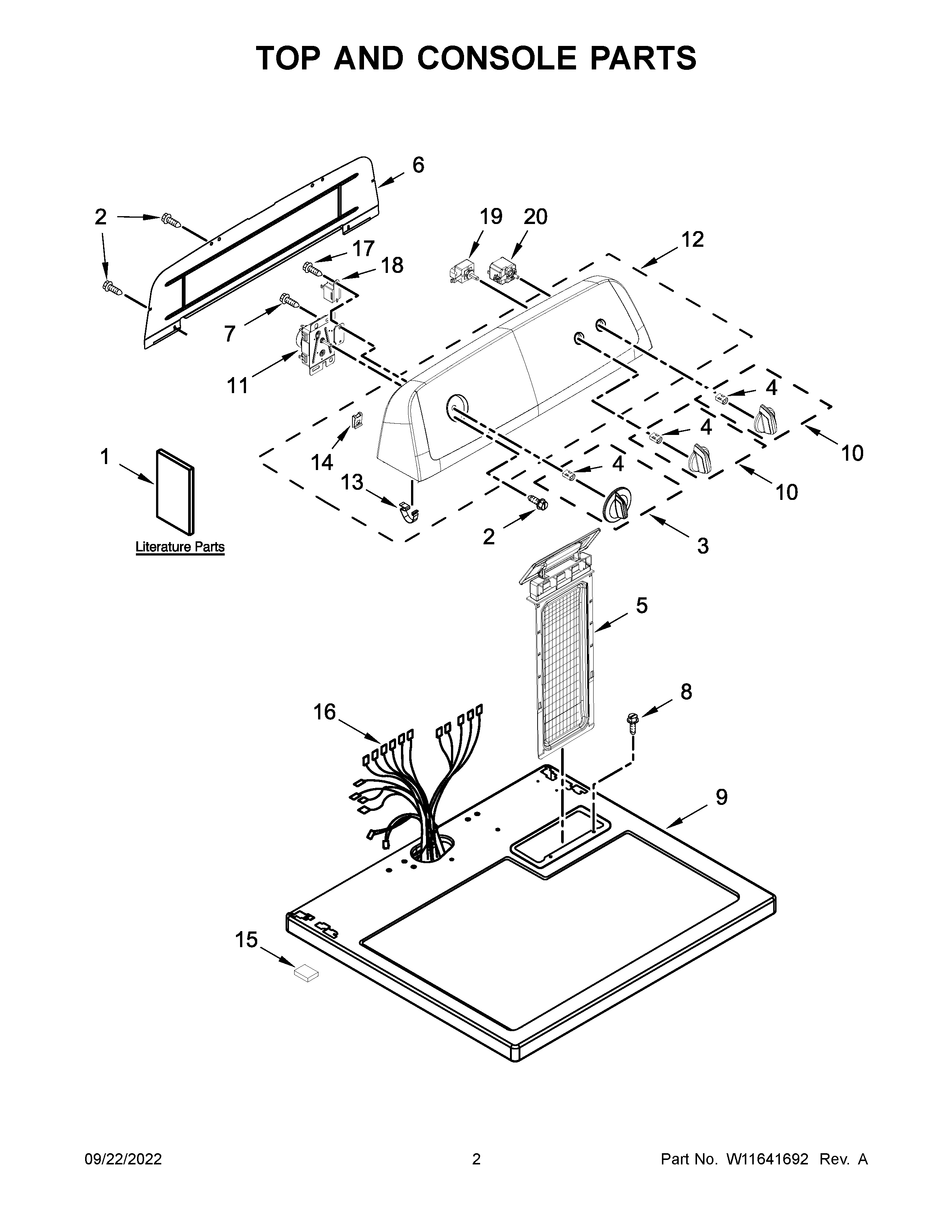

WGD4850HW2 02 – TOP AND CONSOLE PARTS

WGD4850HW2 02 – TOP AND CONSOLE PARTS

Written by

in

WGD4850HW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AQUICK START GUIDE
1CCYCLE GUIDE
1BWIRING DIAGRAM
1OWNERS MANUAL
2WP693995 Whirlpool Screw
3W11216549 Whirlpool Knob
4WP8536939 Whirlpool Spring Clip
5W11607443 Whirlpool Dryer Screen
6WPW10416486 Whirlpool Rear Panel
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10W11216550 Whirlpool Knob Assembly
11WPW10436302 Whirlpool Timer
12W11216548 Whirlpool Console Assembly
13WP8312709 Whirlpool Endcap Clip
14W11213336 Whirlpool Nut
153389682 Whirlpool Spacer
16HARNESS, MAIN
17WP90767 Whirlpool Screw
18WP694419 Whirlpool Buzzer Adjuster
19W11661755 Whirlpool Switch
20WPW10446920 Whirlpool Switch Start
