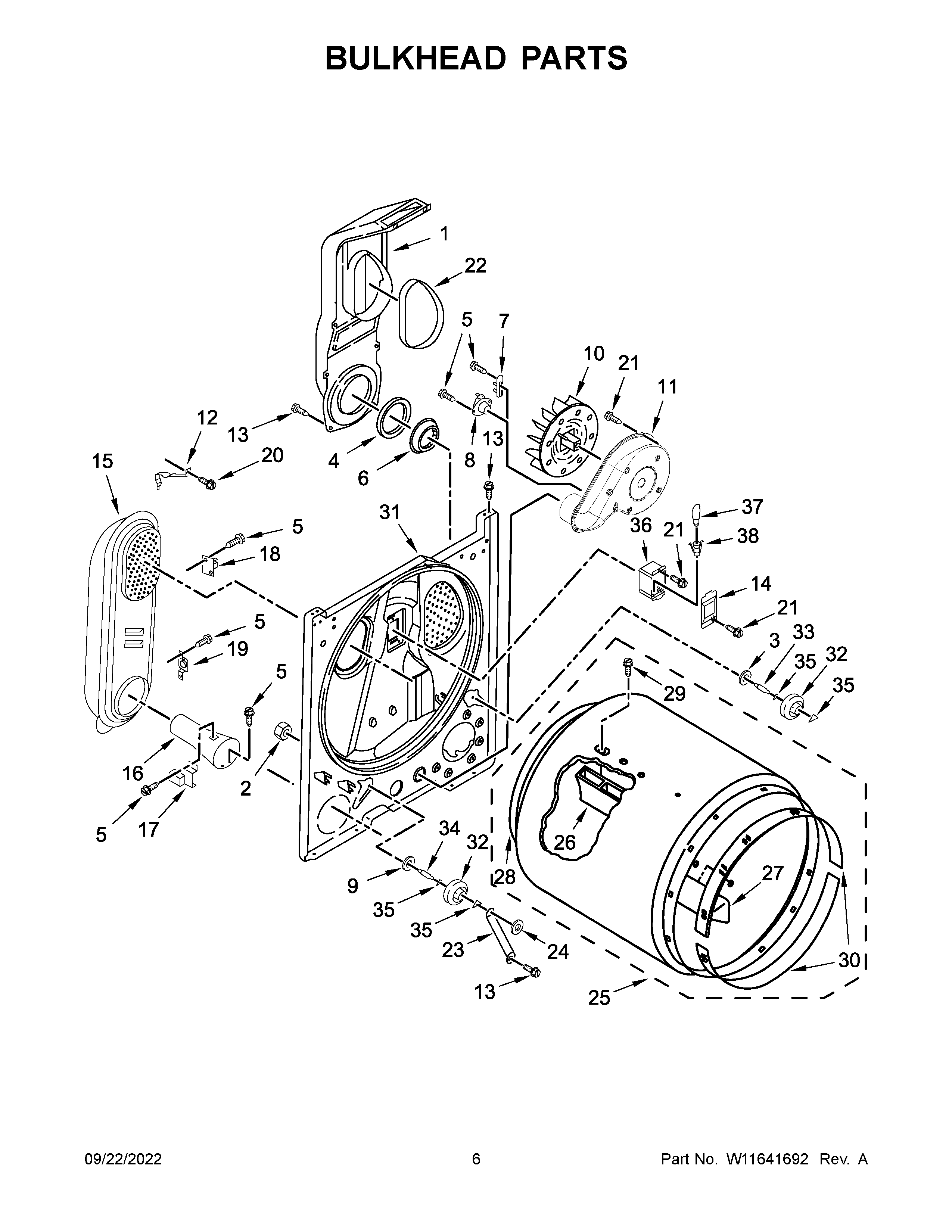

WGD4850HW2 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	W11229607 Whirlpool Nut
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	WP348197 Whirlpool Washer Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	W11226088 Whirlpool Lens Assembly
15	279980 Whirlpool Box
16	WP8066049 Whirlpool Funnel Assembly
17	WP338906 Whirlpool Dryer Gas Sensor
19	W11050897 Whirlpool Dryer High Limit Thermostat
20	WP489463 Whirlpool Refrigerator Screw
21	WP488729 Whirlpool Refrigerator Door Screw
22	SEAL
23	W11684613 Whirlpool Bracket
24	WP90296 Whirlpool Clip
25	W10899578 Whirlpool Dryer Drum Assembly
26	BAFFLE-DRM
27	WP3403636 Whirlpool Drum Baffle
28	W10612022 Whirlpool Felt Seal
29	W10853898 Whirlpool Screw
30	279441 Whirlpool Front Bearing Ring
31	W10828431 Whirlpool Oven Bulkhead
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	SHAFT SUPPORT ROLLER DRYER
34	SHAFT SUPPORT ROLLER DRYER
35	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
36	8578825 Whirlpool Bracket
37	WP22002263 Whirlpool Dryer 10W Light Bulb
38	W11222979 Whirlpool Socket
