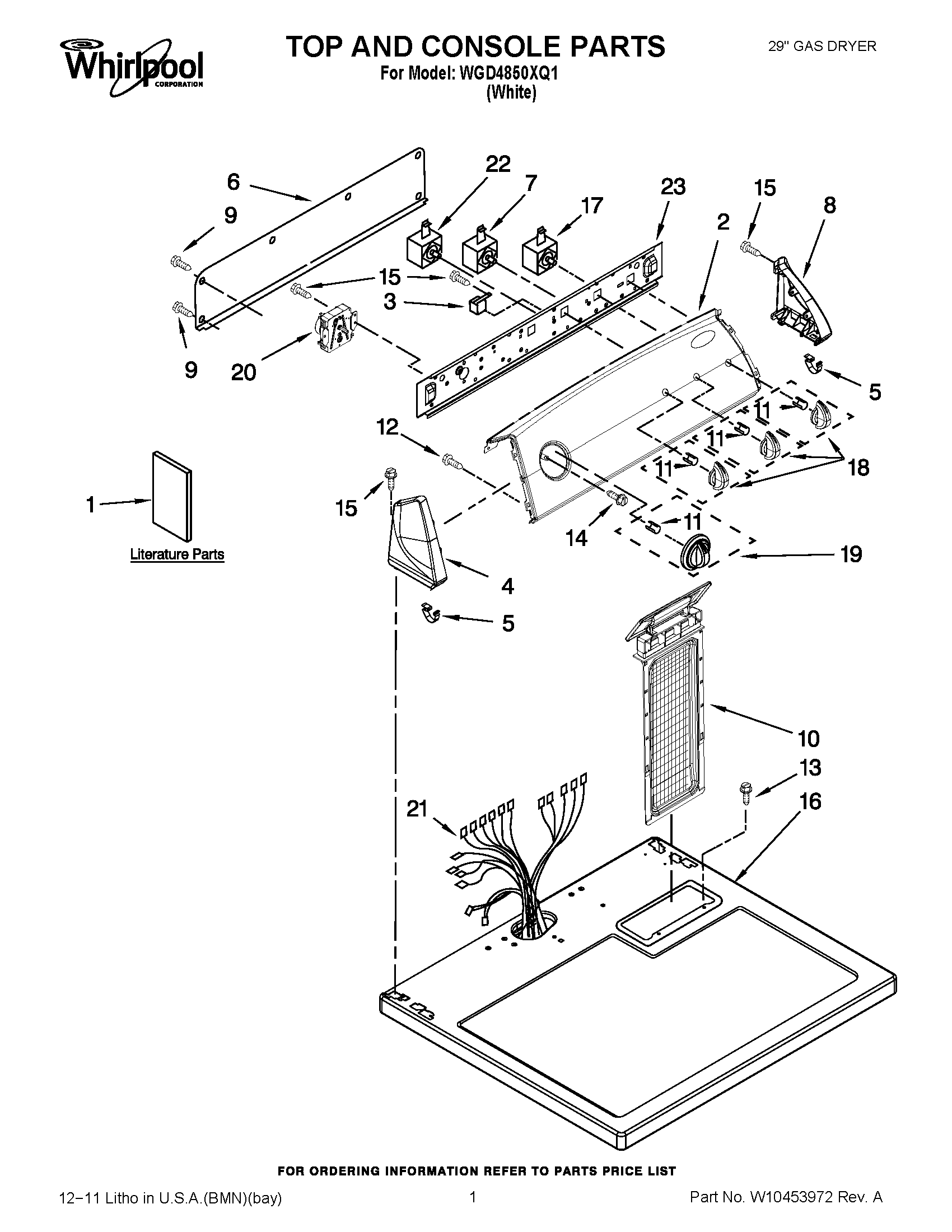

WGD4850XQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
1INSTALLATION, INSTRUCTIONS
1WIRING DIAGRAM
2CONTROL PANEL & BRACKET ASSEMBLY
3WP694419 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5WP8312709 Whirlpool Endcap Clip
6W10103406 Whirlpool Rear Panel
7WP3405156 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12W10915367 Whirlpool Screw Assembly
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
18Knob, Control (3)
19TIMER KNOB ASSEMBLY
20WPW10185981 Whirlpool Timer
21HARNESS, WIRING
22WP3399639 Whirlpool Switch
238566052 Whirlpool Bracket
