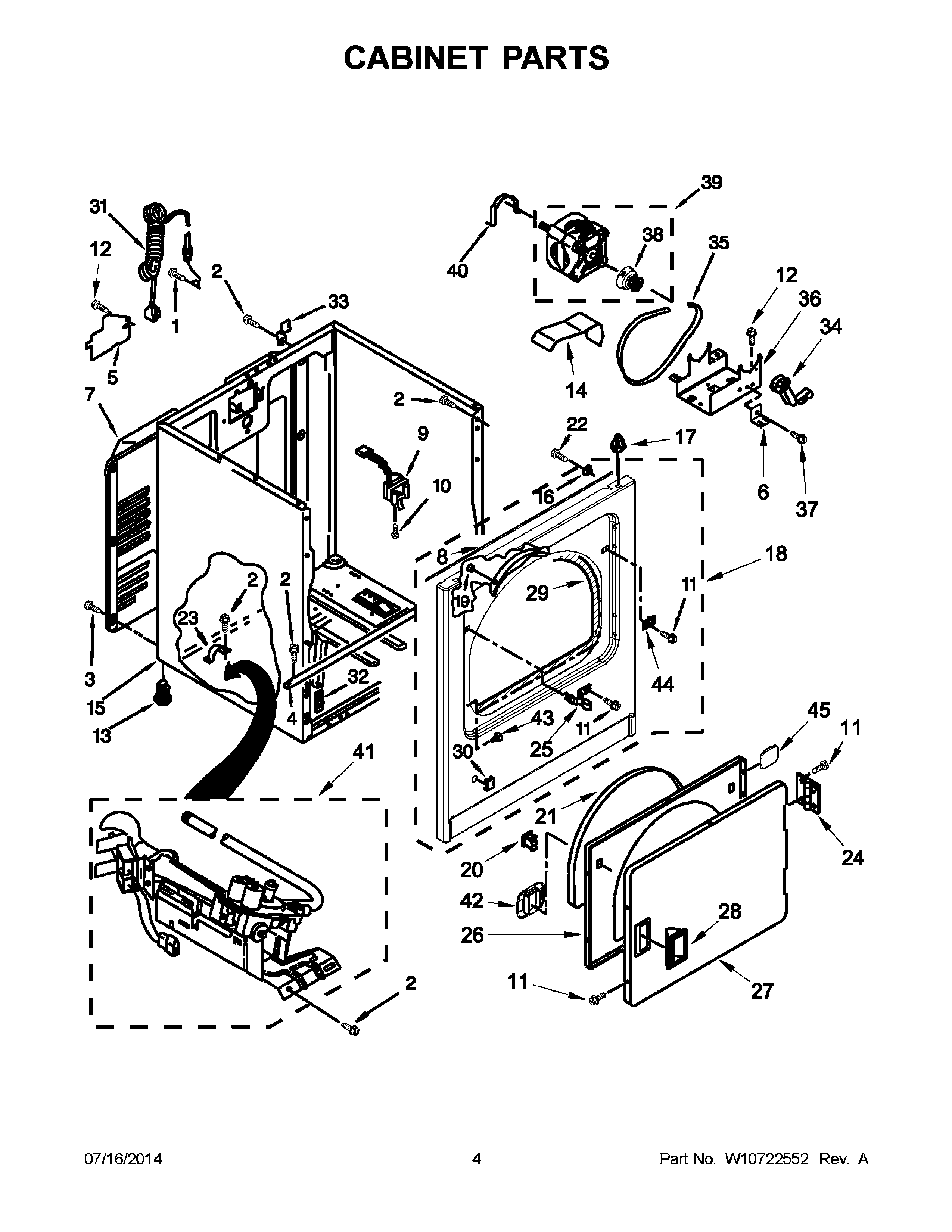

WGD4870BW0 03 – CABINET PARTS
Written by
in
WGD4870BW0 03 – CABINET PARTS
Products
Position
Product
1
W10850756 Whirlpool Screw
2
WP3390631 Whirlpool Screw
3
WP693995 Whirlpool Screw
4
BRACKET, CABINET
5
W11539855 Whirlpool Refrigerator Pump
6
3401805 Whirlpool Bracket
7
280043 Whirlpool Rear Panel
8
W10316619 Whirlpool Seal
9
WP3406107 Whirlpool Dryer Door Switch
10
WP3395530 Whirlpool Screw
11
WP488627 Whirlpool Refrigerator Screw
12
WP308685 Whirlpool Microwave Screw
13
FEET-LVLNG (SET OF 4)
14
3401800 Whirlpool Shield
15
8533643 Whirlpool Dryer White Cabinet
16
WP98234 Whirlpool Nut
17
WP8066092 Whirlpool Panel Clip
18
W10248059 Whirlpool Panel
19
279220 Whirlpool Clip
20
W11429587 Whirlpool Catch Assembly
21
SEAL-DOOR DRYER
22
SCREW
23
341029 Whirlpool Clamp
24
WPW10362431 Whirlpool Hinge Assembly
25
W11429589 Whirlpool Strike
26
WPW10463967 Whirlpool Door Assembly
27
W10861227 Whirlpool Door Assembly
28
WPW10549553 Whirlpool Dryer Door Handle
29
W11035878 Whirlpool Bearing and Seal
30
W10811916 Whirlpool Plug
31
W11222083 Whirlpool Power Cord
32
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33
WP8066217 Whirlpool Hinge
34
WP691366 Whirlpool Dryer Idler Pulley Assembly
35
661570V Whirlpool Dryer Drum Belt
36
3401801 Whirlpool Base Assembly
37
3400500 Whirlpool Screw
38
WP8066184 Whirlpool Dryer Motor Pulley
39
WPW10396039 Whirlpool Drive Motor
40
CLAMP
41
W10823508 Whirlpool Gas Burner
42
W11173656 Whirlpool Cover
43
WP3404413 Whirlpool Plug
44
W11684591 Whirlpool Dryer Plug
45
WPW10529197 Whirlpool Catch Assembly
←
