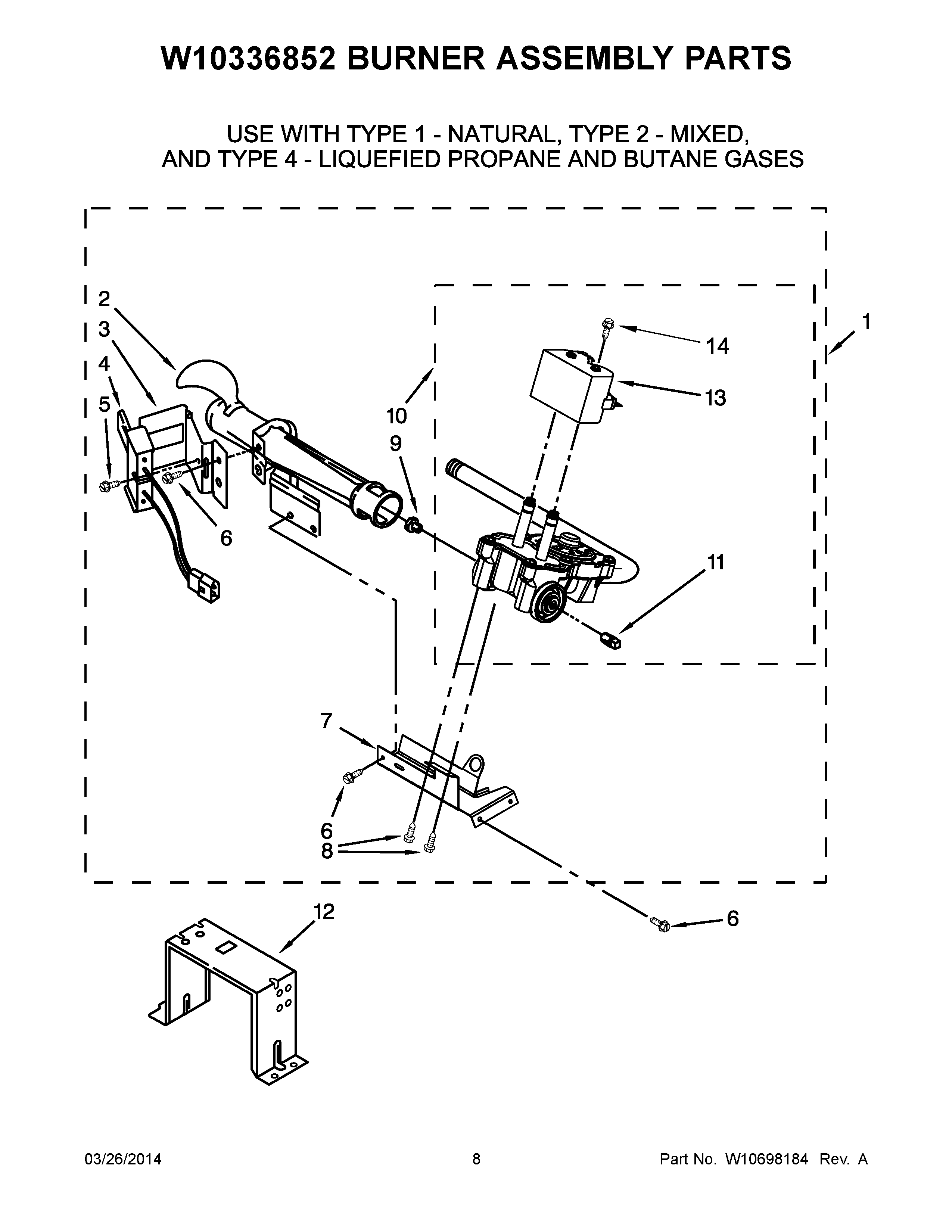

WGD4890BQ0 05 – W10336852 BURNER ASSEMBLY PARTS

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	CABINET (NOT A SERVICEABLE PART)
1	W10823508 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234826 Whirlpool Gas Orifice
10	279923 Whirlpool Gas Valve
11	W10295523 Whirlpool Plug
12	Bracket, Support
13	WPW10328463 Whirlpool Valve Coil
14	326049536 Whirlpool Screw
