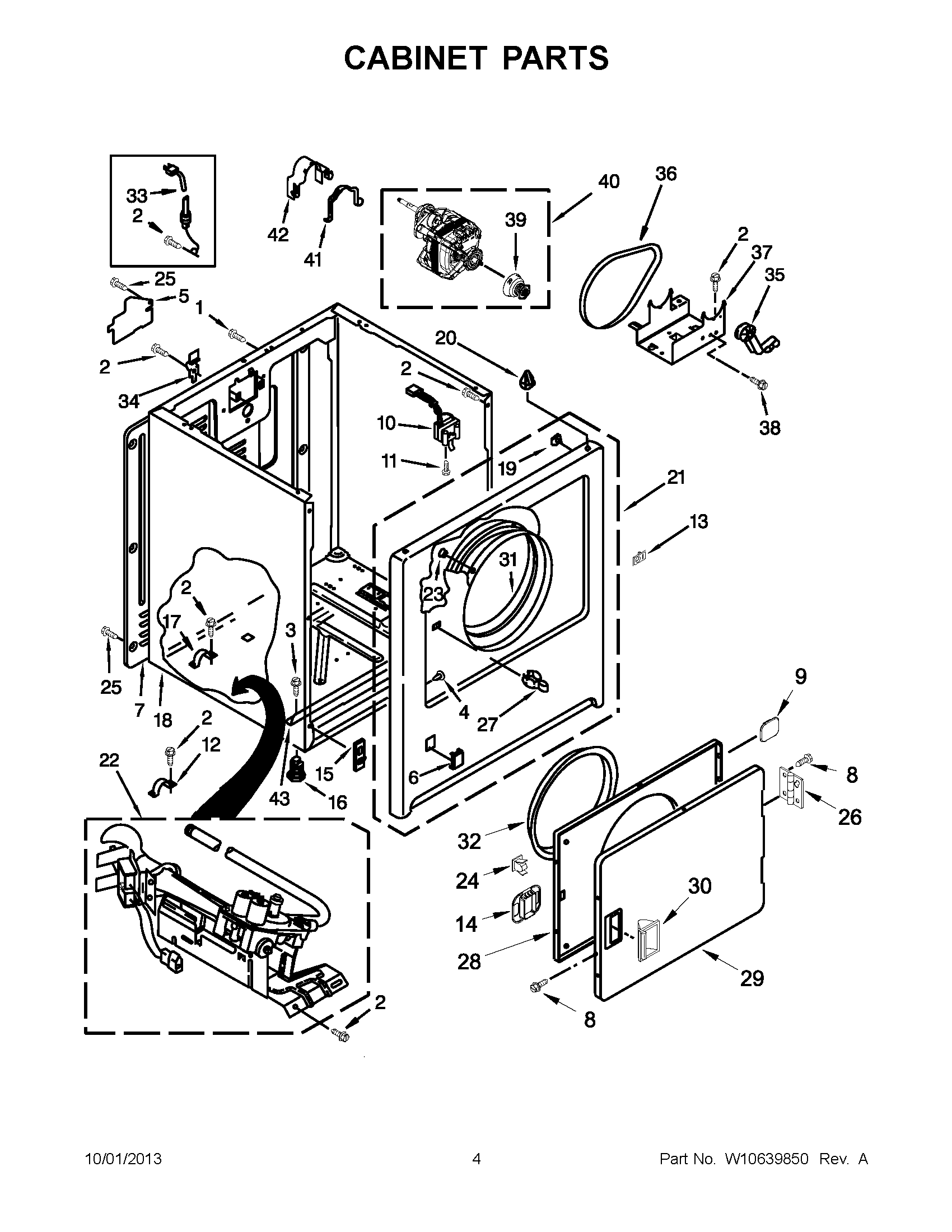

WGD4890BW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	WP3390631 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	WP3404413 Whirlpool Plug
5	W11539855 Whirlpool Refrigerator Pump
6	W10811916 Whirlpool Plug
7	W10539962 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	W11173656 Whirlpool Cover
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	341029 Whirlpool Clamp
13	W11684591 Whirlpool Dryer Plug
14	WPW10529197 Whirlpool Catch Assembly
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10248059 Whirlpool Panel
22	W10823508 Whirlpool Gas Burner
23	279220 Whirlpool Clip
24	W11429587 Whirlpool Catch Assembly
25	WP693995 Whirlpool Screw
26	WPW10362431 Whirlpool Hinge Assembly
27	W11429589 Whirlpool Strike
28	WPW10463967 Whirlpool Door Assembly
29	W10861227 Whirlpool Door Assembly
30	WPW10549553 Whirlpool Dryer Door Handle
31	W11035878 Whirlpool Bearing and Seal
32	SEAL-DOOR DRYER
33	W11222083 Whirlpool Power Cord
34	WP8066217 Whirlpool Hinge
35	WP691366 Whirlpool Dryer Idler Pulley Assembly
36	341241 Whirlpool Dryer Drum Belt
37	WP348780 Whirlpool Base
38	3400500 Whirlpool Screw
39	WP8066184 Whirlpool Dryer Motor Pulley
40	279827 Whirlpool Dryer Drive Motor
41	CLAMP
42	WP3404162 Whirlpool Clamp
43	BRACKET, CABINET
