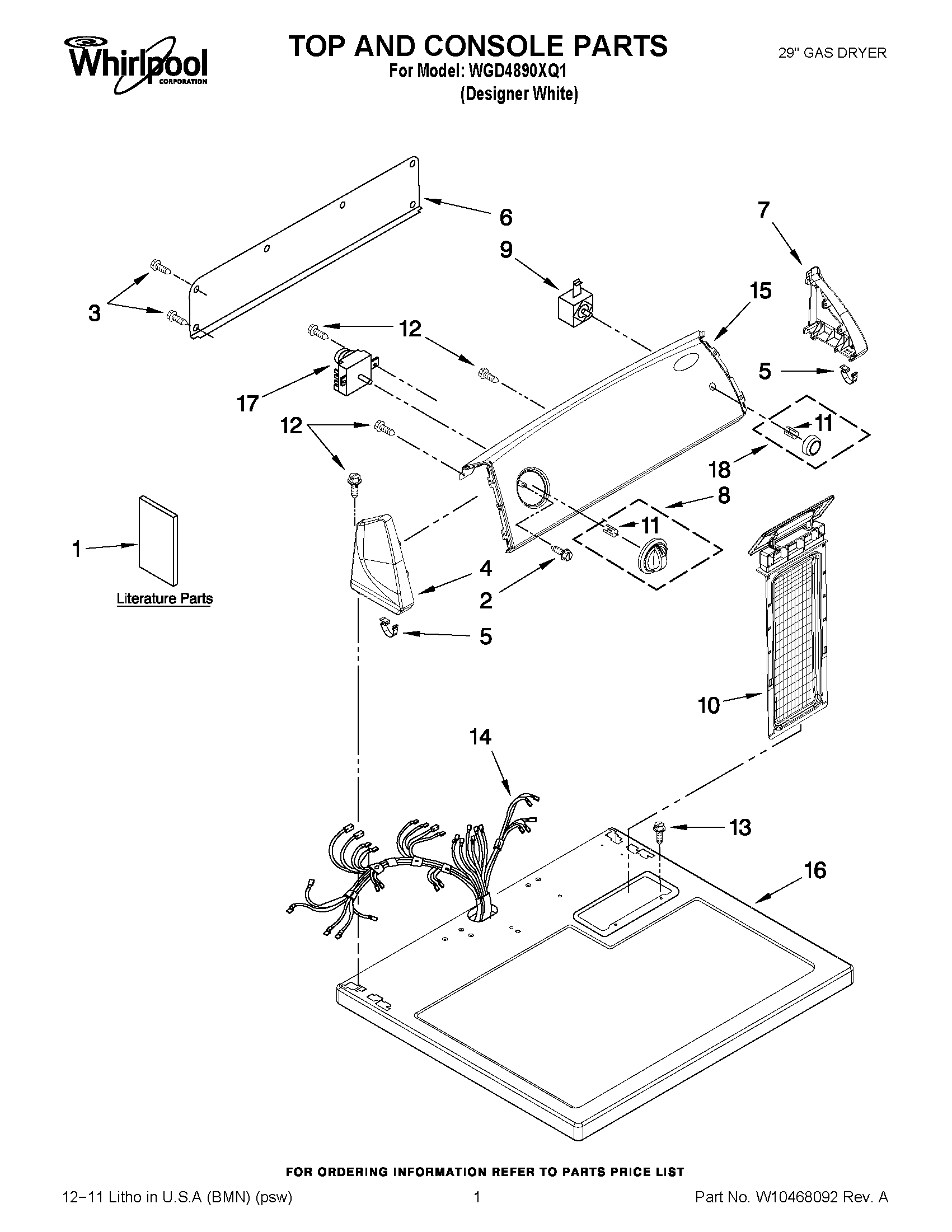

WGD4890XQ1 01 – TOP AND CONSOLE PARTS

WGD4890XQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD4890XQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1GUIDE, USE AND CARE
1INSTALLATION, INSTRUCTIONS
2W10850756 Whirlpool Screw
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP8312709 Whirlpool Endcap Clip
6W10103406 Whirlpool Rear Panel
7WP8565954 Whirlpool Endcap
8TIMER KNOB ASSEMBLY
9WP3977456 Whirlpool Start Switch
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10186074 Whirlpool Wire Harness
15CONSOLE PANEL & BRACKET ASSEMBLY
16WP8563663 Whirlpool Top Assembly
17TIMER
18W10034770 Whirlpool Knob Assembly
