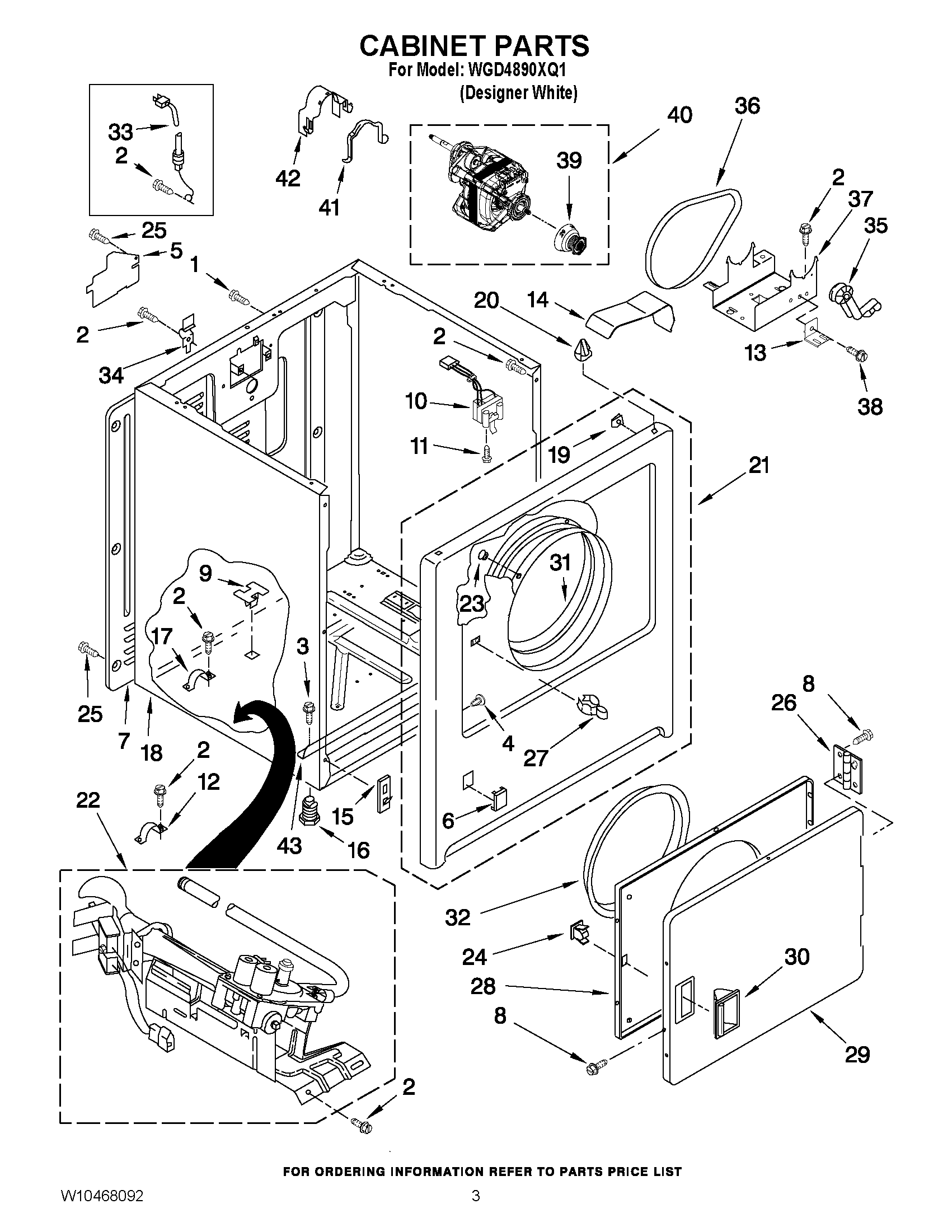

WGD4890XQ1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	WP3390631 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	WP3404413 Whirlpool Plug
5	W11539855 Whirlpool Refrigerator Pump
6	W10811916 Whirlpool Plug
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	Plug, Cabinet
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	341029 Whirlpool Clamp
13	3401805 Whirlpool Bracket
14	3401800 Whirlpool Shield
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
22	W10823508 Whirlpool Gas Burner
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP693995 Whirlpool Screw
26	WPW10362431 Whirlpool Hinge Assembly
28	Door, Rear
29	WP3403361 Whirlpool Door
30	WPW10549553 Whirlpool Dryer Door Handle
31	279264 Whirlpool Bearing and Seal Kit
32	SEAL-DOOR DRYER
33	W11222083 Whirlpool Power Cord
34	WP8066217 Whirlpool Hinge
35	WP691366 Whirlpool Dryer Idler Pulley Assembly
36	341241 Whirlpool Dryer Drum Belt
37	3401801 Whirlpool Base Assembly
38	3400500 Whirlpool Screw
39	WP8066184 Whirlpool Dryer Motor Pulley
40	WPW10396039 Whirlpool Drive Motor
41	CLAMP
42	WP3404162 Whirlpool Clamp
43	BRACKET, CABINET
