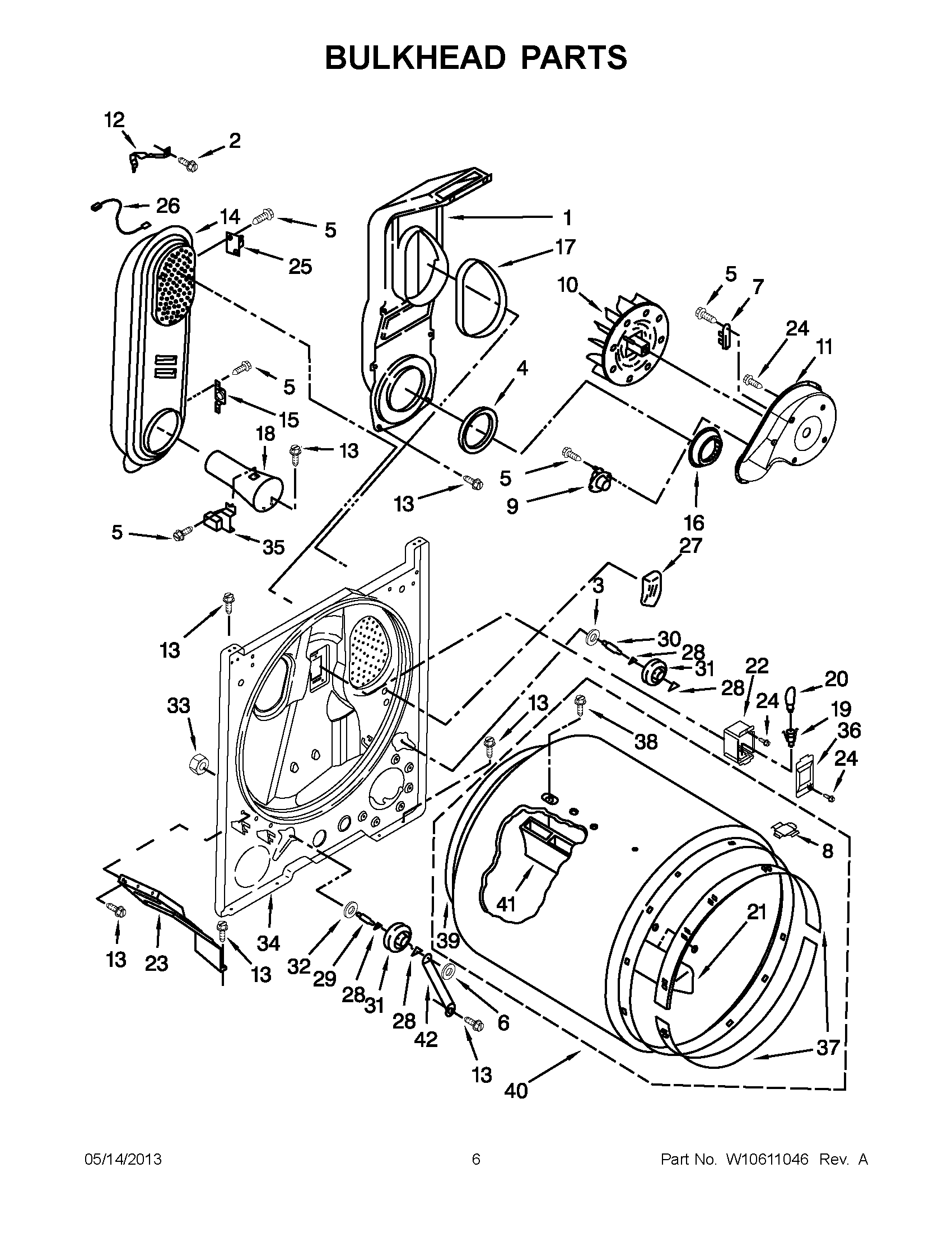

WGD4900XW4 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP90296 Whirlpool Clip
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP8318268 Whirlpool Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	W11233063 Whirlpool Shield Assembly
17	SEAL
18	WP8066049 Whirlpool Funnel Assembly
19	W11222979 Whirlpool Socket
20	WP22002263 Whirlpool Dryer 10W Light Bulb
21	WP3403636 Whirlpool Drum Baffle
22	3977373 Whirlpool Bracket
23	W11398682 Whirlpool Bracket
24	WP488729 Whirlpool Refrigerator Door Screw
25	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
26	WP3401707 Whirlpool Wire Assembly
27	SENSOR KIT
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W10828905 Whirlpool Bulkhead OS1
35	WP338906 Whirlpool Dryer Gas Sensor
36	W11226088 Whirlpool Lens Assembly
37	279441 Whirlpool Front Bearing Ring
38	W10853898 Whirlpool Screw
39	W10612022 Whirlpool Felt Seal
40	W10899578 Whirlpool Dryer Drum Assembly
41	BAFFLE-DRM
42	W11684613 Whirlpool Bracket
