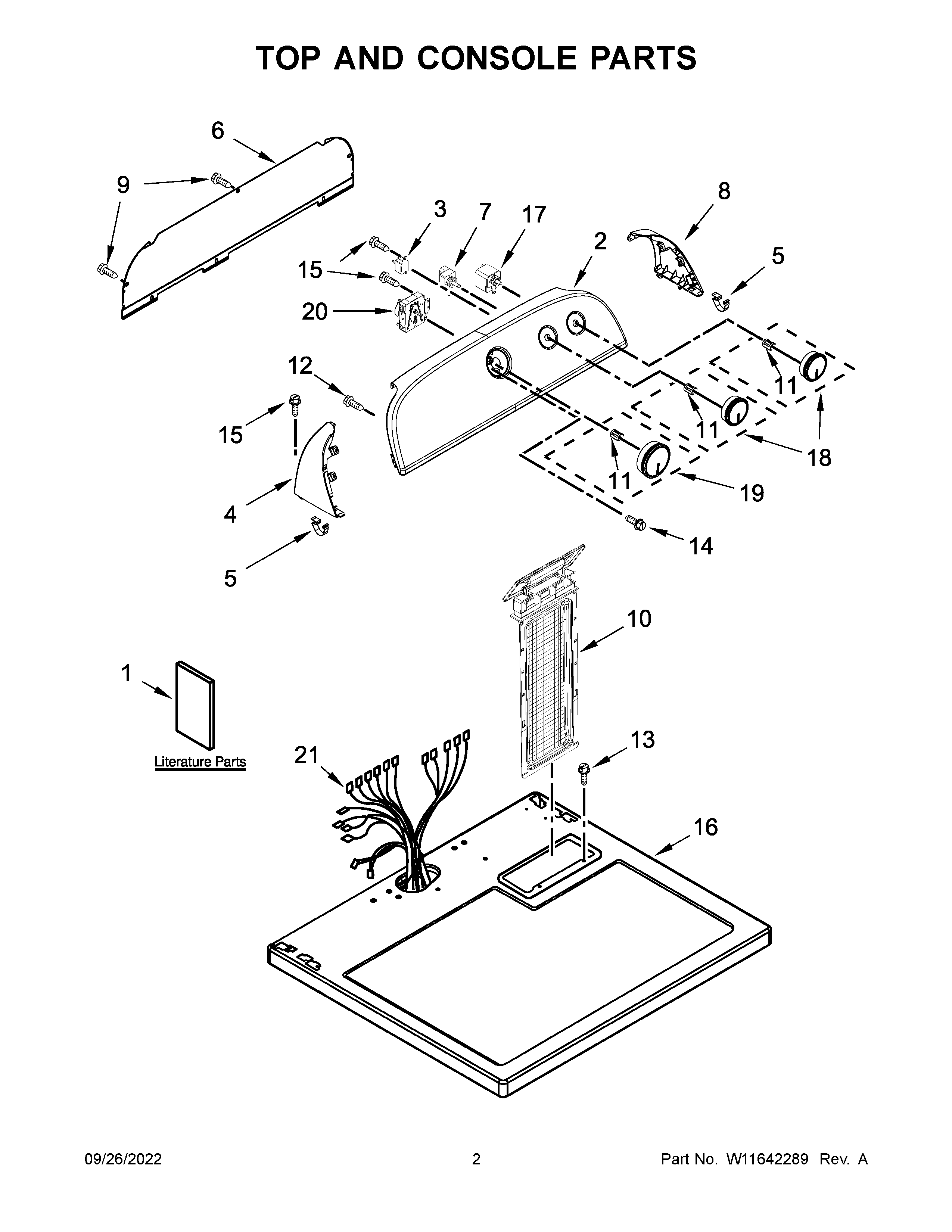

WGD4950HW2 02 – TOP AND CONSOLE PARTS

WGD4950HW2 02 – TOP AND CONSOLE PARTS

Written by

in

WGD4950HW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BCYCLE GUIDE
1CWIRING DIAGRAM
1AQUICK START GUIDE
1OWNERS MANUAL
2W11218057 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7W11050715 Whirlpool Switch
8WPW10520780 Whirlpool Panel
9WP693995 Whirlpool Screw
10W11607443 Whirlpool Dryer Screen
11WP8536939 Whirlpool Spring Clip
12WP3400818 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
18W11176265 Whirlpool Knob
19W11501455 Whirlpool Knob Assembly
20WPW10185981 Whirlpool Timer
21W11523105 Whirlpool Wire Harness
