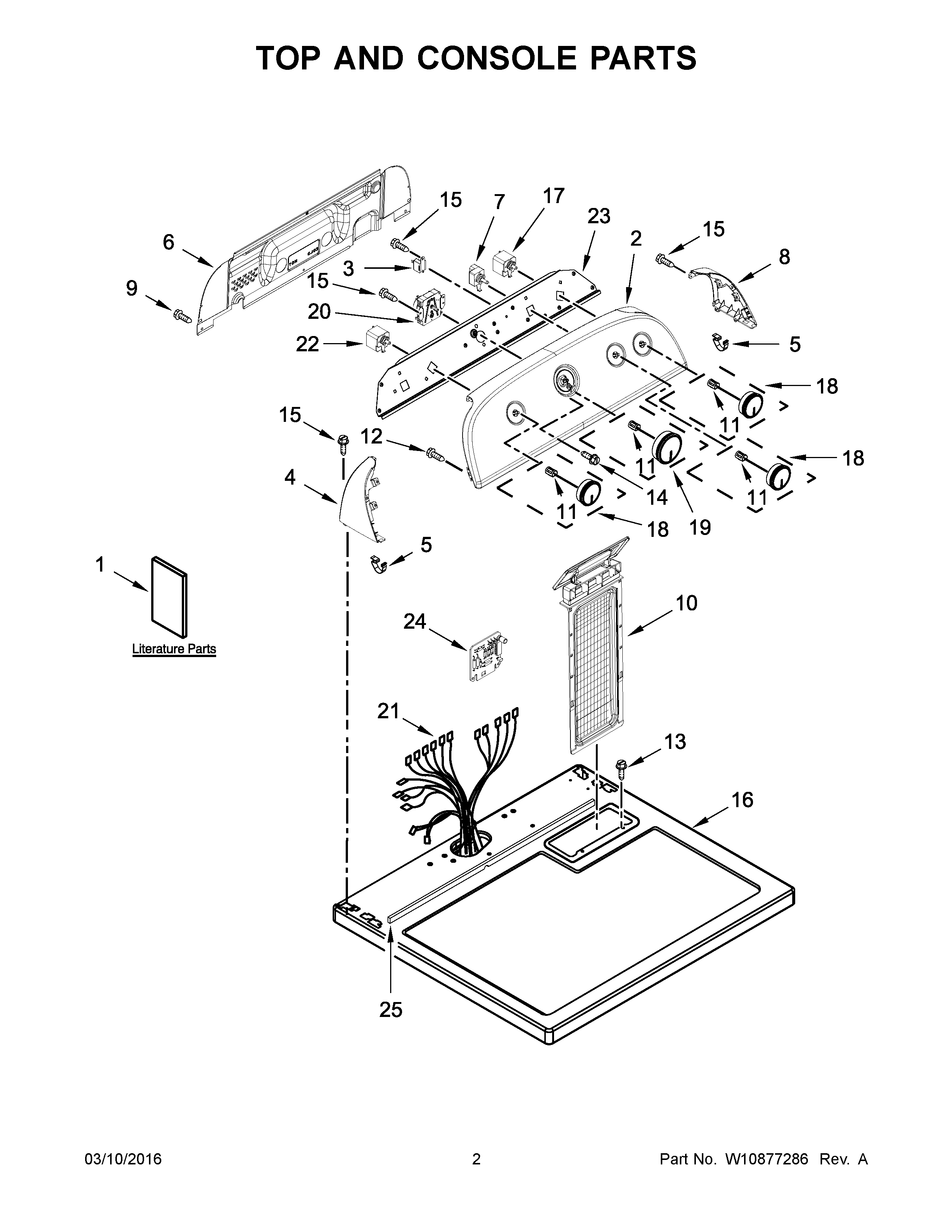

WGD4975EW1 02 – TOP AND CONSOLE PARTS

WGD4975EW1 02 – TOP AND CONSOLE PARTS

Written by

in

WGD4975EW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1BWIRING DIAGRAM
1AINSTALLATION INSTRUCTIONS
2W10692608 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7WP3405156 Whirlpool Switch
8WPW10520780 Whirlpool Panel
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP3400818 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
18W11176265 Whirlpool Knob
19W11501455 Whirlpool Knob Assembly
20TIMER
21HARNESS, MAIN
22W11106324 Whirlpool Switch
23BRACKET, CONTROL
24WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
25W10316616 Whirlpool Seal
