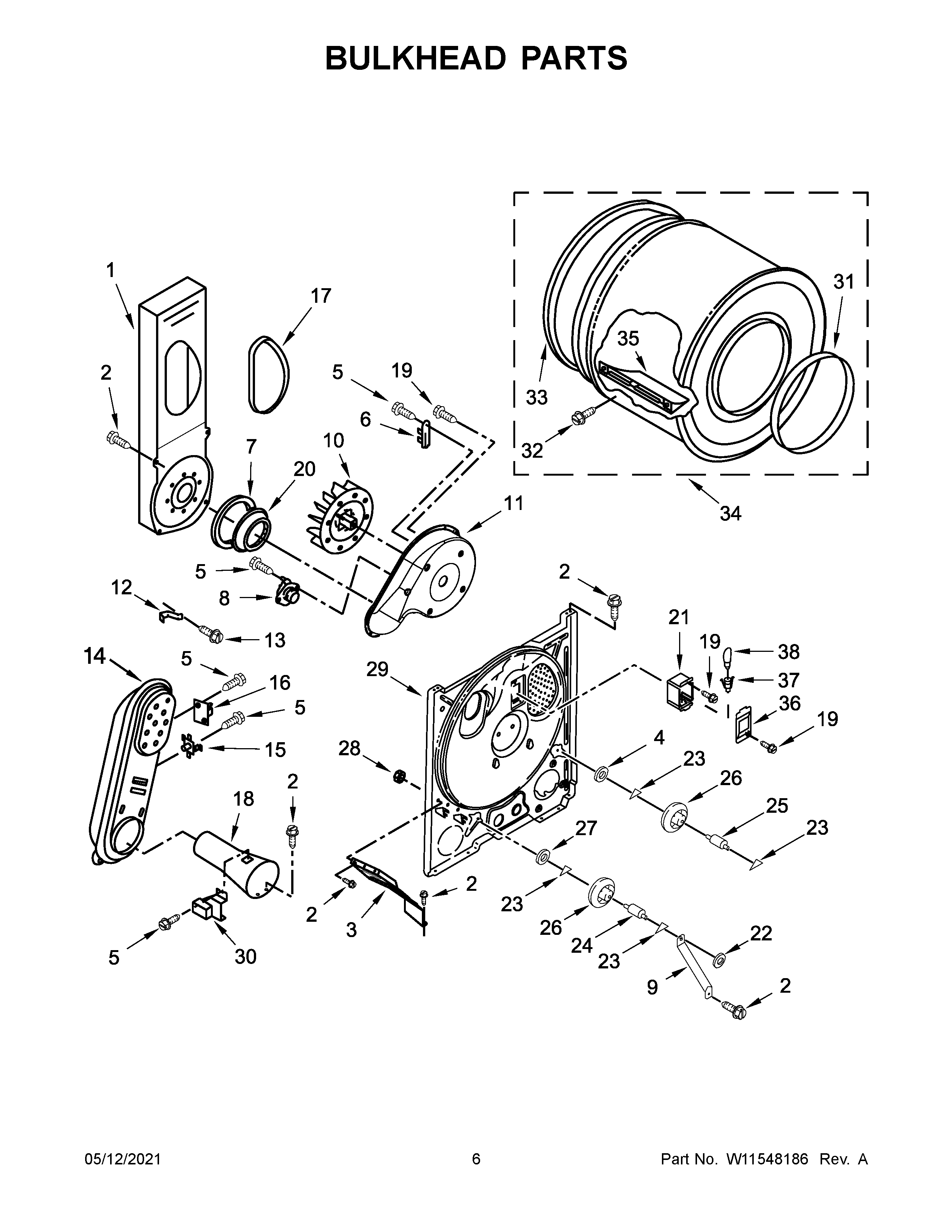

WGD4985EW1 04 – BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
2	SCREW
3	W11398682 Whirlpool Bracket
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	W11684613 Whirlpool Bracket
10	W10801999 Whirlpool Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP489463 Whirlpool Refrigerator Screw
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
17	SEAL
18	WP8066048 Whirlpool Funnel
19	WP488729 Whirlpool Refrigerator Door Screw
20	W10475158 Whirlpool Shield
21	8578825 Whirlpool Bracket
22	WP90296 Whirlpool Clip
23	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
24	SHAFT SUPPORT ROLLER DRYER
25	SHAFT SUPPORT ROLLER DRYER
26	WPW10314173 Whirlpool Dryer Drum Support Wheel
27	WP348197 Whirlpool Washer Assembly
28	W11229607 Whirlpool Nut
29	W10828911 Whirlpool Bulkhead Assembly
30	WP338906 Whirlpool Dryer Gas Sensor
31	279441 Whirlpool Front Bearing Ring
32	W10853898 Whirlpool Screw
33	W10612022 Whirlpool Felt Seal
34	W10502620 Whirlpool Drum
35	8565688 Whirlpool Drum Baffle
36	W11226088 Whirlpool Lens Assembly
37	W11222979 Whirlpool Socket
38	WP22002263 Whirlpool Dryer 10W Light Bulb
