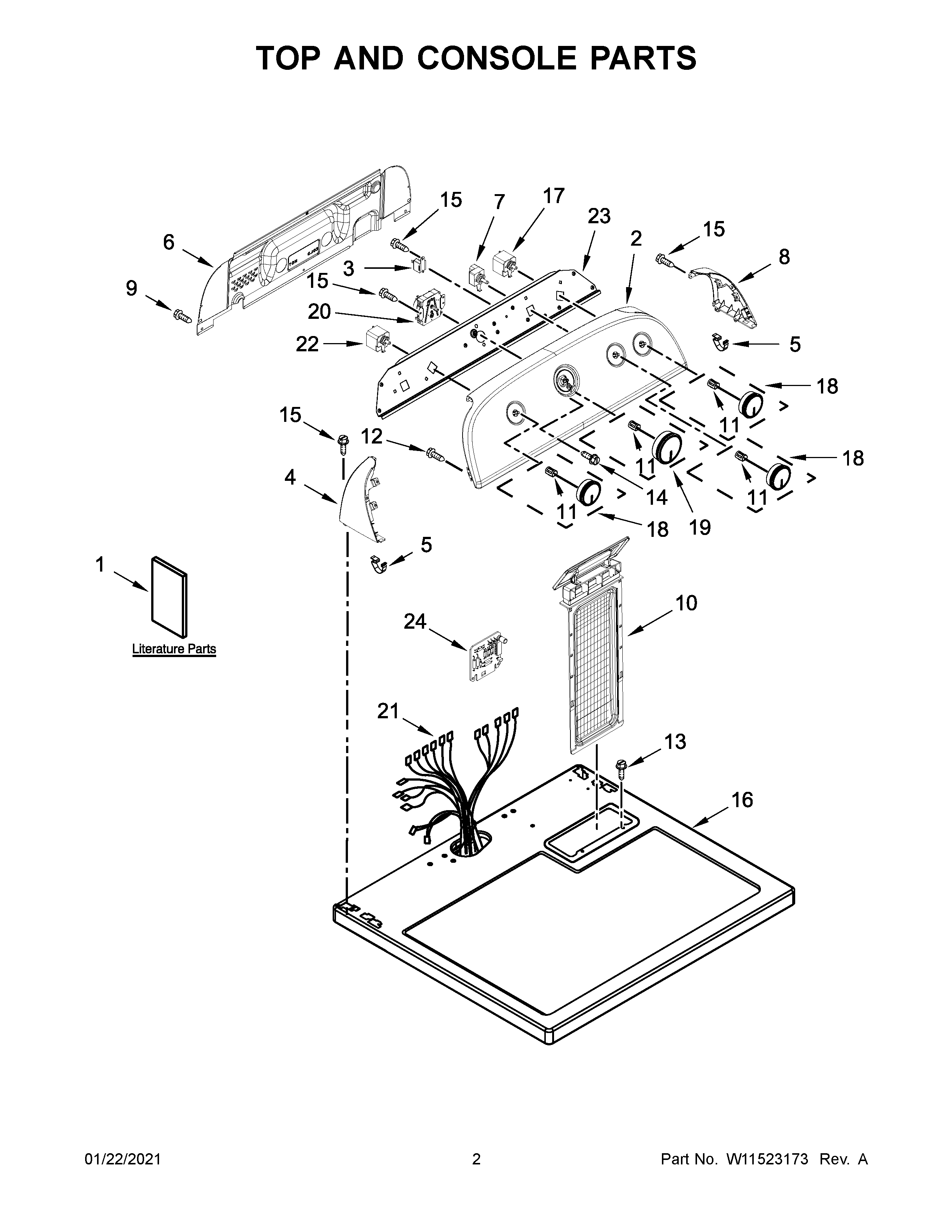

WGD49STBW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BDIAGRAM, WIRING
1OWNERS MANUAL
1AQUICK START GUIDE
2W10671235 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7WP3405156 Whirlpool Switch
8WPW10520780 Whirlpool Panel
9WP693995 Whirlpool Screw
10W11607443 Whirlpool Dryer Screen
11WP688805 Whirlpool Spring Clip
12WP3400818 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
19W10756270 Whirlpool Dryer Timer Knob
20W10846428 Whirlpool Dryer Timer
21HARNESS, WIRING
22W11050715 Whirlpool Switch
23BRACKET, CONTROL
24WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
