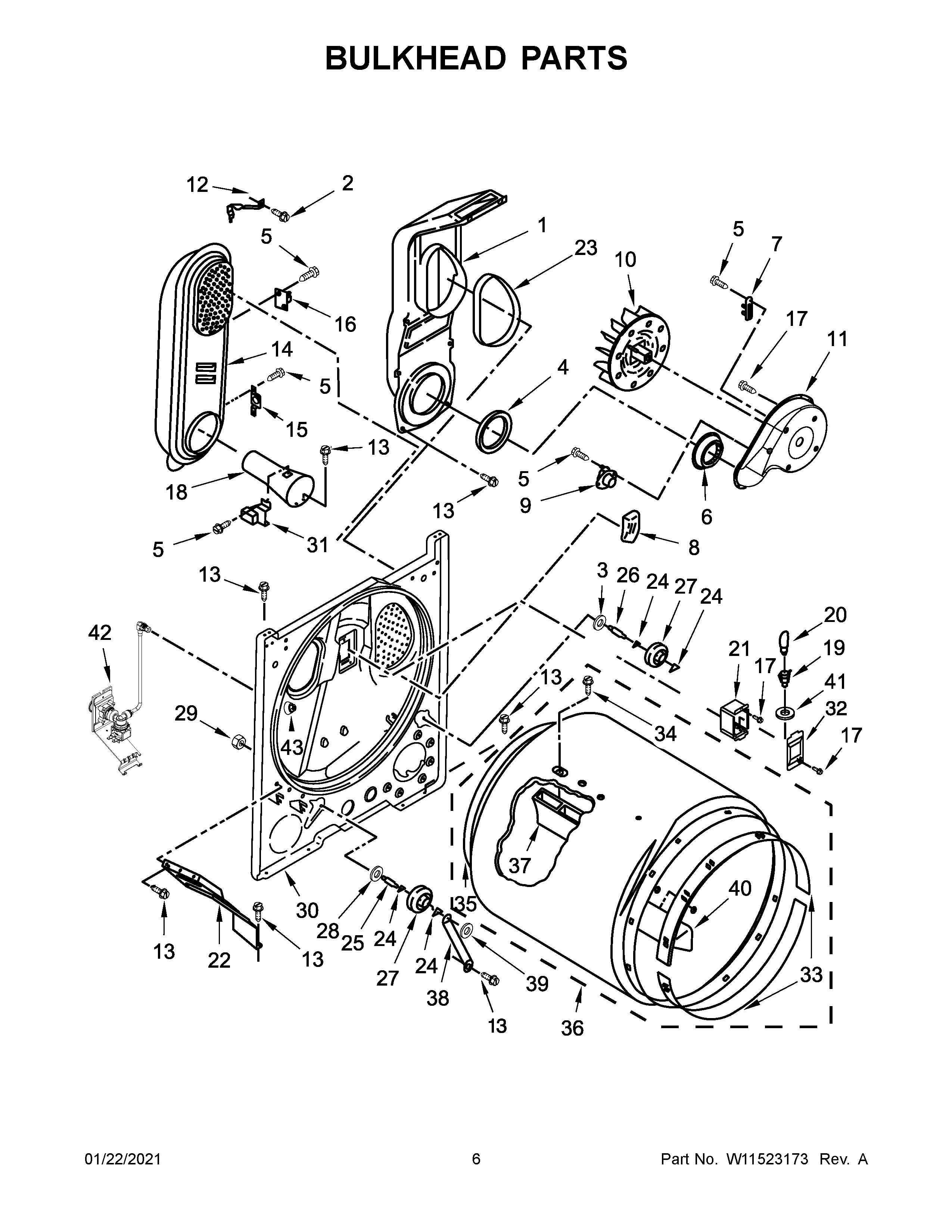

WGD49STBW3 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8W10853313 Whirlpool Sensor
9WP8318268 Whirlpool Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP3390631 Whirlpool Screw
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
17WP488729 Whirlpool Refrigerator Door Screw
18WP8066049 Whirlpool Funnel Assembly
19W11222979 Whirlpool Socket
20WP22002263 Whirlpool Dryer 10W Light Bulb
218578825 Whirlpool Bracket
22W11398682 Whirlpool Bracket
23SEAL
24WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25SHAFT SUPPORT ROLLER DRYER
26SHAFT SUPPORT ROLLER DRYER
27WPW10314173 Whirlpool Dryer Drum Support Wheel
28WP348197 Whirlpool Washer Assembly
29W11229607 Whirlpool Nut
30W11112242 Whirlpool Bulkhead Assembly
31WP338906 Whirlpool Dryer Gas Sensor
32W11226088 Whirlpool Lens Assembly
33279441 Whirlpool Front Bearing Ring
34W10853898 Whirlpool Screw
35W10612022 Whirlpool Felt Seal
36W10899578 Whirlpool Dryer Drum Assembly
37BAFFLE-DRM
38W11684613 Whirlpool Bracket
39WP90296 Whirlpool Clip
40WP3403636 Whirlpool Drum Baffle
41SEAL, DRUM LIGHT
42W11267102 Whirlpool Valve
43W11230609 Whirlpool Nozzle
