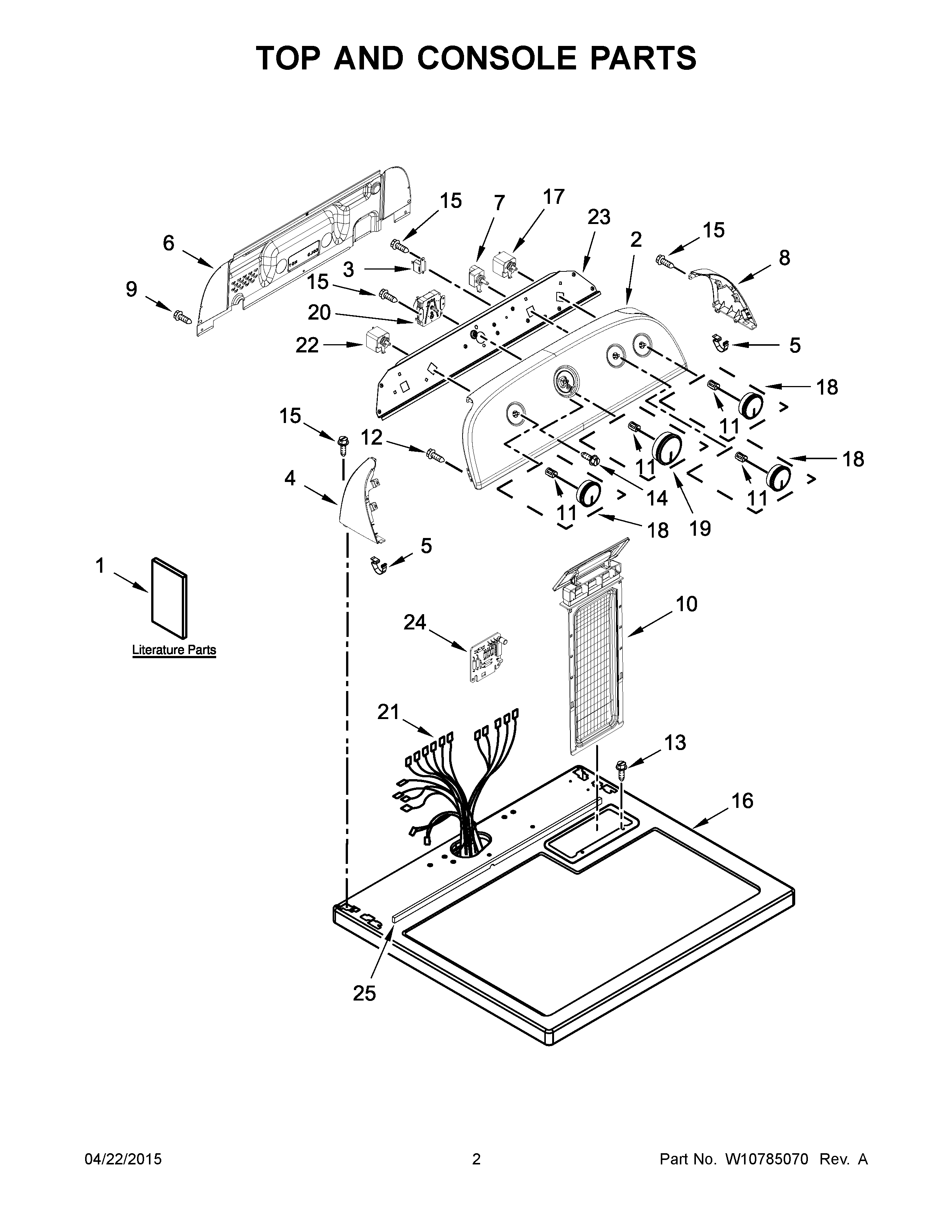

WGD5000DW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	WIRING DIAGRAM
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	W10672827 Whirlpool Control Panel
3	WP694419 Whirlpool Buzzer Adjuster
4	WPW10520782 Whirlpool Panel
5	WP8312709 Whirlpool Endcap Clip
6	W10556829 Whirlpool Rear Panel
7	WP3405156 Whirlpool Switch
8	WPW10520780 Whirlpool Panel
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP3400818 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP90767 Whirlpool Screw
16	WP8563663 Whirlpool Top Assembly
17	WPW10117655 Whirlpool Dryer Start Switch
19	W10756270 Whirlpool Dryer Timer Knob
20	TIMER
21	W10640708 Whirlpool Wire Harness
22	W11106324 Whirlpool Switch
23	BRACKET, CONTROL
24	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
25	W10316616 Whirlpool Seal
