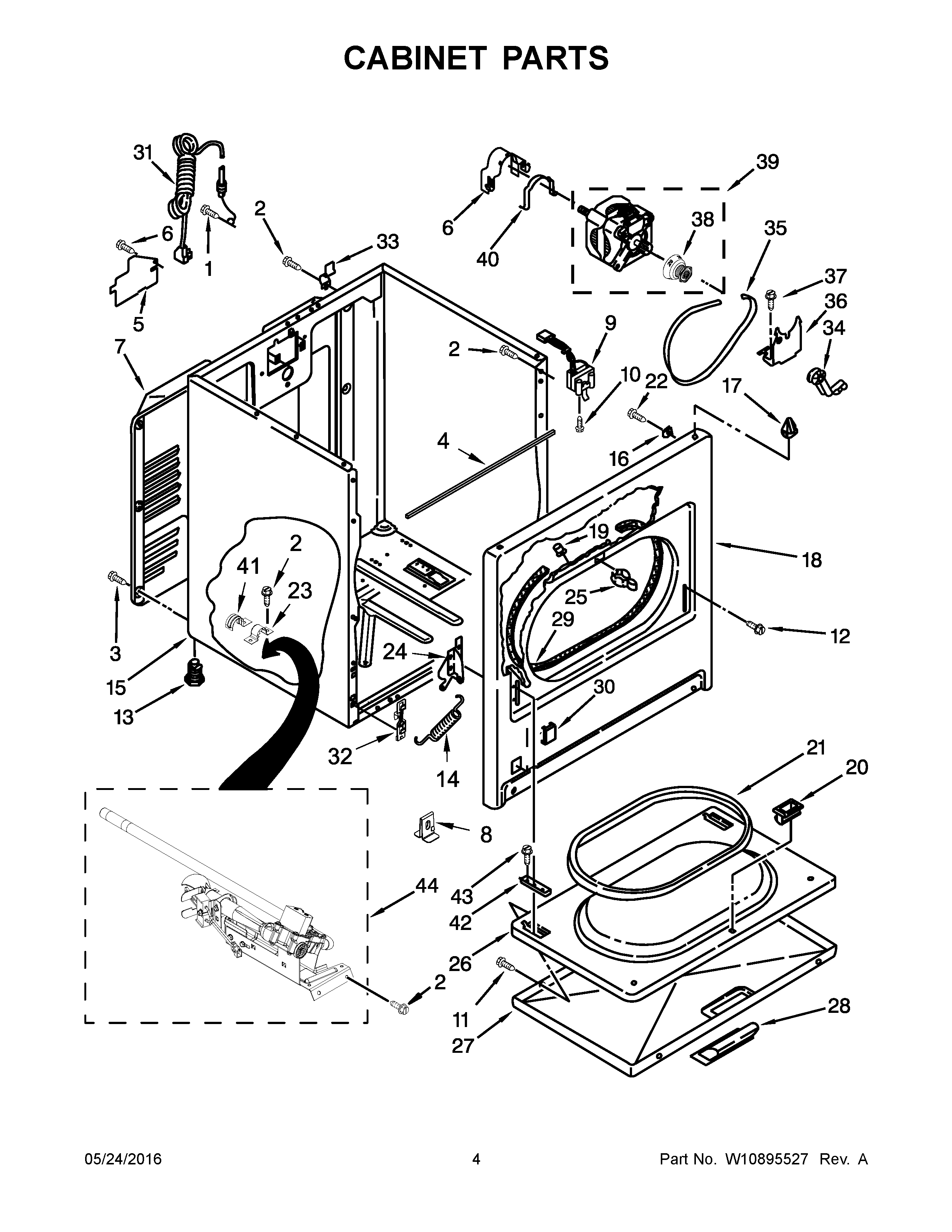

WGD5000DW3 03 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W10575896 Whirlpool Clip
9	WP3406107 Whirlpool Dryer Door Switch
10	WP3395530 Whirlpool Screw
11	WP488627 Whirlpool Refrigerator Screw
12	Screw, 10-32 x 1/2
13	FEET-LVLNG (SET OF 4)
14	WPW10041960 Whirlpool Door Spring
15	8533643 Whirlpool Dryer White Cabinet
16	WP98234 Whirlpool Nut
17	WP8066092 Whirlpool Panel Clip
18	279740 Whirlpool Panel Primary with O/S2
19	279220 Whirlpool Clip
20	WP3389441 Whirlpool Door Catch
21	W10906683 Whirlpool Door Seal
22	SCREW
23	341029 Whirlpool Clamp
24A	WP8066057 Whirlpool Door Hinge
24	WP8066056 Whirlpool Door Hinge
25	279570 Whirlpool Dryer Door Latch Kit
26	WP695737 Whirlpool Door
27	W10861223 Whirlpool Door Appliance
28	W10861225 Whirlpool Dryer White Door Handle
29	W11035878 Whirlpool Bearing and Seal
30	W10811916 Whirlpool Plug
31	W11222083 Whirlpool Power Cord
32	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	WP8066217 Whirlpool Hinge
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	341241 Whirlpool Dryer Drum Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	WP8066184 Whirlpool Dryer Motor Pulley
39	279827 Whirlpool Dryer Drive Motor
40	CLAMP
41	CLAMP, PIPE
42	W11252547 Whirlpool Clip Assembly
43	WP308685 Whirlpool Microwave Screw
44	W10823508 Whirlpool Gas Burner
