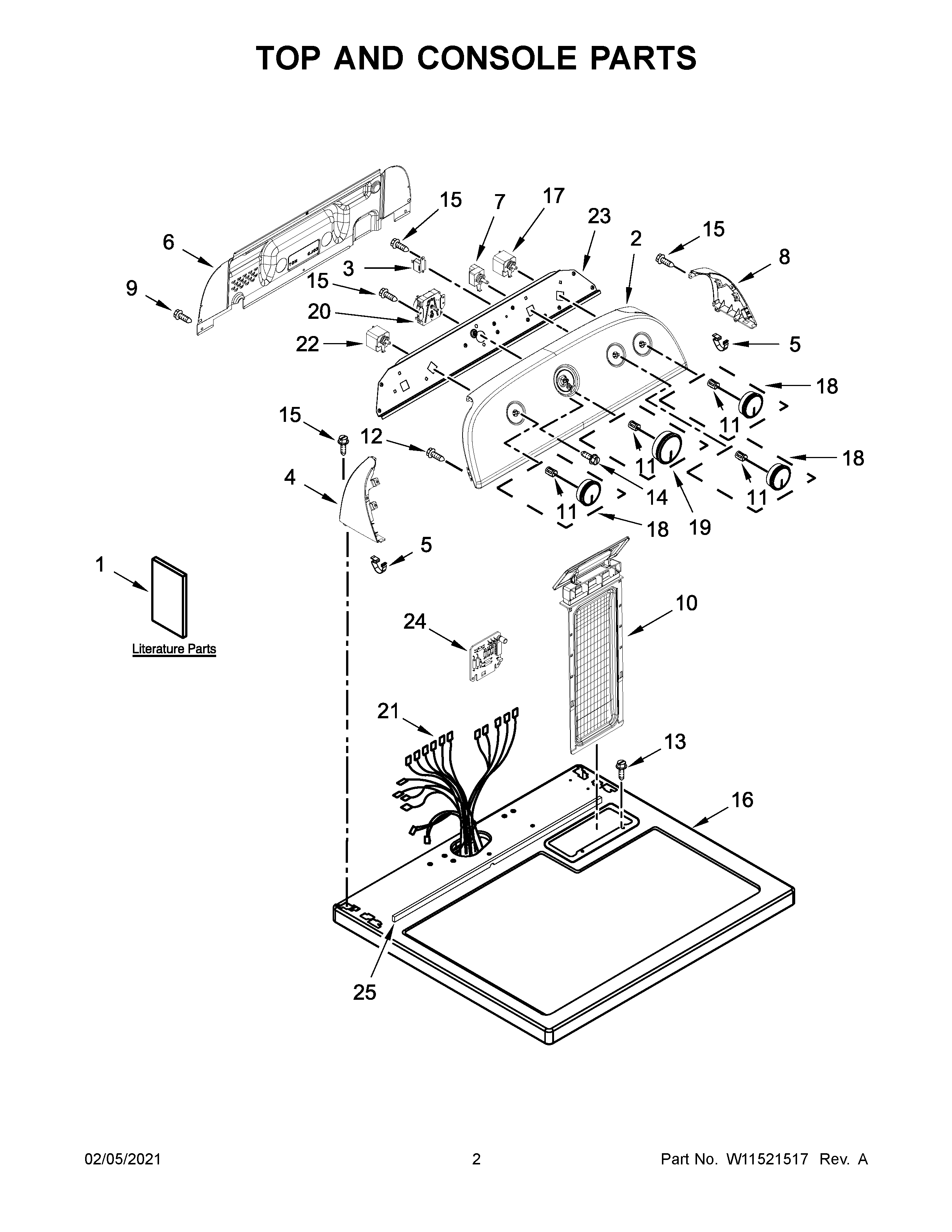

WGD5000DW4 02 – TOP AND CONSOLE PARTS

WGD5000DW4 02 – TOP AND CONSOLE PARTS

Written by

in

WGD5000DW4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1AQUICK START GUIDE
1OWNERS MANUAL
2W10672827 Whirlpool Control Panel
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7WP3405156 Whirlpool Switch
8WPW10520780 Whirlpool Panel
9WP693995 Whirlpool Screw
10W11607443 Whirlpool Dryer Screen
11WP688805 Whirlpool Spring Clip
12WP3400818 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WPW10117655 Whirlpool Dryer Start Switch
19W10756270 Whirlpool Dryer Timer Knob
20TIMER
21W10865752 Whirlpool Wire Harness
22W11106324 Whirlpool Switch
23BRACKET, CONTROL
24WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
25W10316616 Whirlpool Seal
