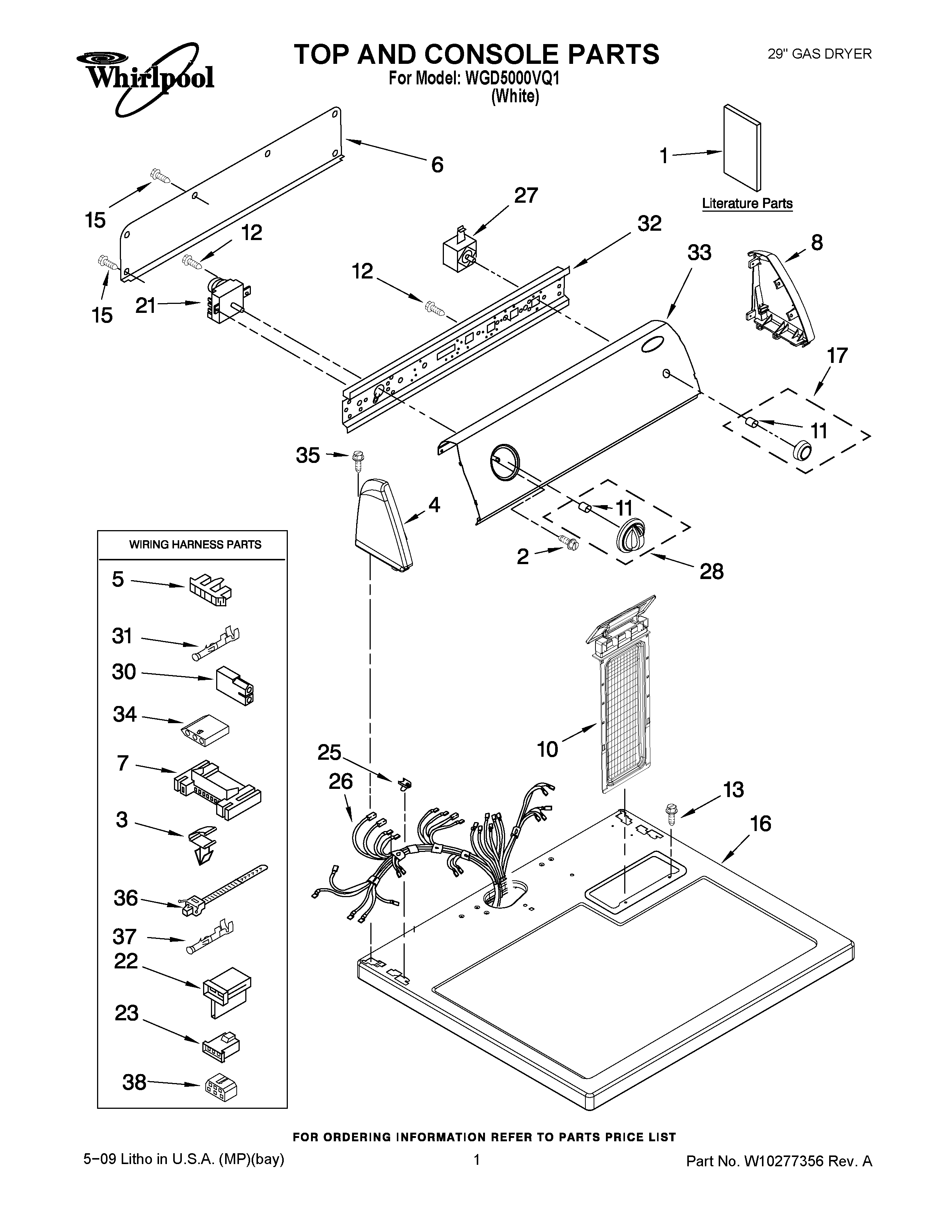

WGD5000VQ1 01 – TOP AND CONSOLE PARTS

WGD5000VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5000VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Installation Instructions (English)
1Wiring Diagram
1Use & Care Guide
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
17WP8566065 Whirlpool Knob
21WPW10185969 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
25WP357213 Whirlpool Hinge Stopper
26W10186074 Whirlpool Wire Harness
27WP3977456 Whirlpool Start Switch
28WP8566061 Whirlpool Knob
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
31WP94614 Whirlpool Terminal
32Bracket, Control
33Panel, Control
343936144 Whirlpool Connector
35WP388326 Whirlpool Screw
36Tie, Cable
373401144 Whirlpool Connector
38Block, Disconnect
