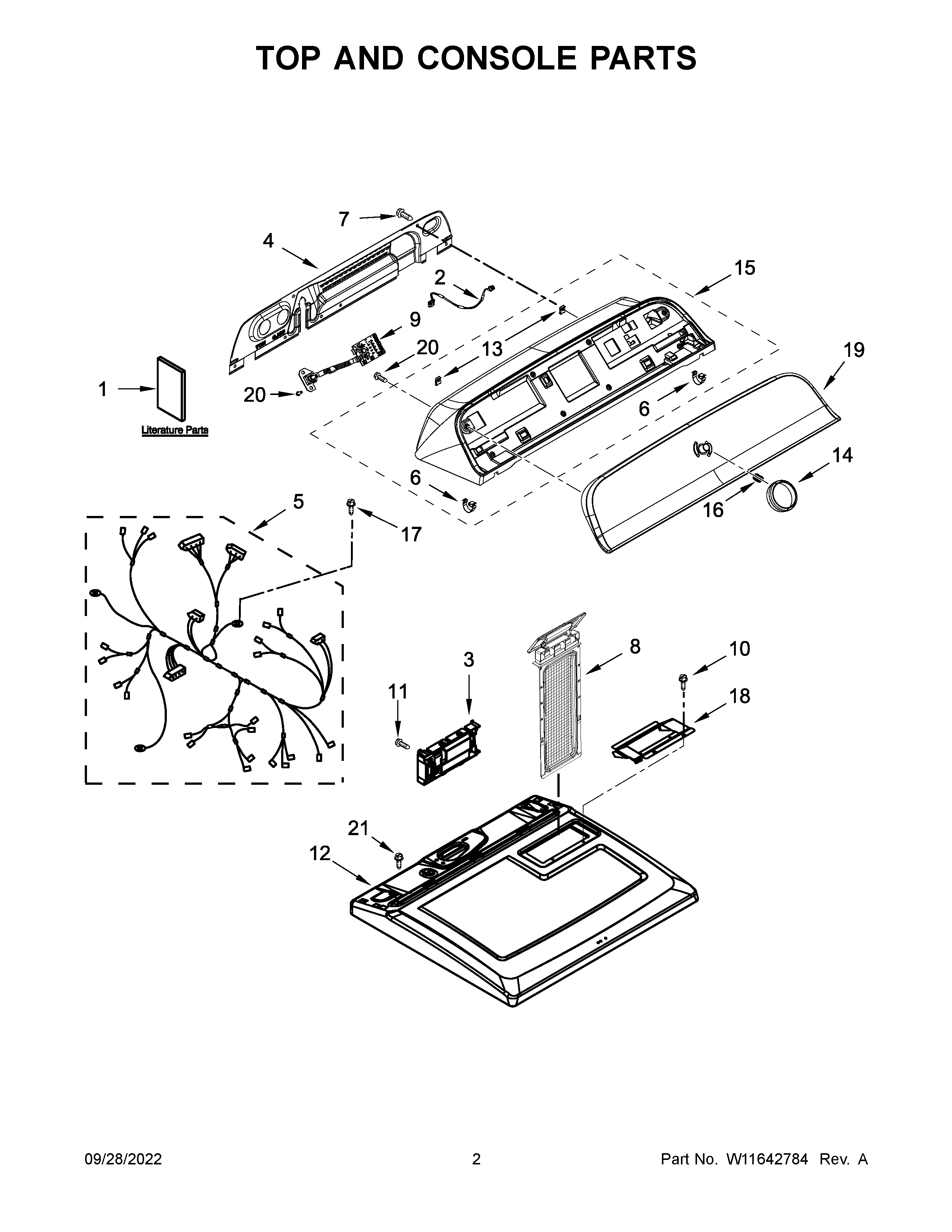

WGD500CMW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	QUICK START GUIDE
1	OWNERS MANUAL
1A	TECH SHEET
2	W11551859 Whirlpool Wire Harness
3	W11728029 Whirlpool Electronic Control
4	W10775189 Whirlpool Rear Panel
5	HARNESS, MAIN
6	WP8312709 Whirlpool Endcap Clip
7	WP693995 Whirlpool Screw
8	SCREEN
9	W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
10	W11693756 Whirlpool Screw Assembly
11	WP90767 Whirlpool Screw
12	W11222514 Whirlpool Top Assembly
13	W11213336 Whirlpool Nut
14	W11406489 Whirlpool Knob
15	W11406485 Whirlpool Console
16	WP8536939 Whirlpool Spring Clip
17	W10850756 Whirlpool Screw
18	W10662472 Whirlpool Cover Assembly
19	ASSEMBLY, FASCIA
20	WP9740848 Whirlpool Dishwasher Screw
21	SCREW
