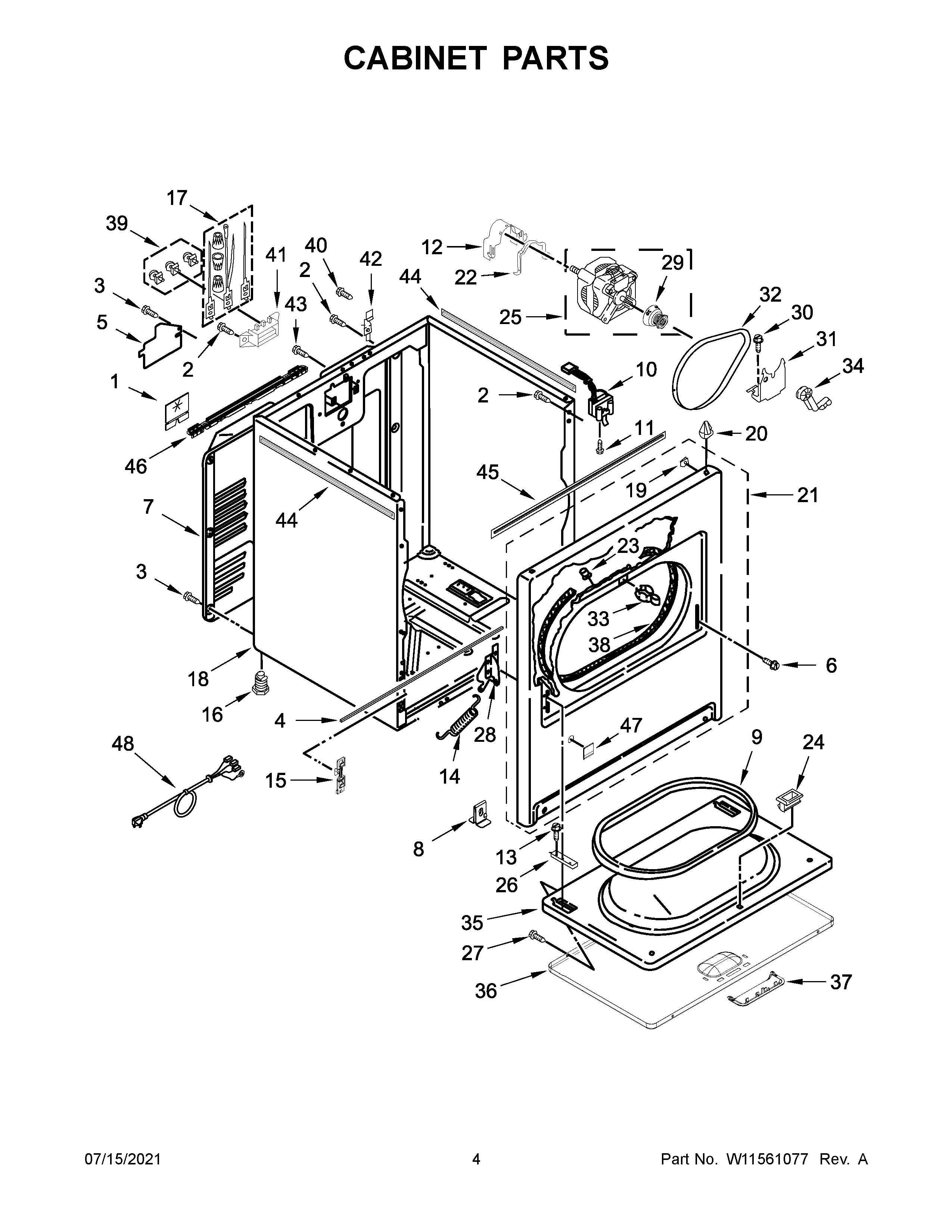

WGD5010LW0 03 – CABINET PARTS

WGD5010LW0 03 – CABINET PARTS

Written by

in

WGD5010LW0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W11230156 Whirlpool Pad
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4W11596046 Whirlpool Seal
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
8W10575896 Whirlpool Clip
9W10906683 Whirlpool Door Seal
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404162 Whirlpool Clamp
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16FEET-LVLNG (SET OF 4)
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21279740 Whirlpool Panel Primary with O/S2
22CLAMP
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25279827 Whirlpool Dryer Drive Motor
26W11252547 Whirlpool Clip Assembly
27WP488627 Whirlpool Refrigerator Screw
28WP8066056 Whirlpool Door Hinge
28AWP8066057 Whirlpool Door Hinge
29WP8066184 Whirlpool Dryer Motor Pulley
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33279570 Whirlpool Dryer Door Latch Kit
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35WP695737 Whirlpool Door
36W10861223 Whirlpool Door Appliance
37W10861225 Whirlpool Dryer White Door Handle
38W11035878 Whirlpool Bearing and Seal
40SCREW
41WP3397659 Whirlpool Terminal Block
42W11715722 Whirlpool Hinge
43W10850756 Whirlpool Screw
44WPW10157932 Whirlpool Seal Foam
45W10316619 Whirlpool Seal
46W10641295 Whirlpool Bracket
47W10811916 Whirlpool Plug
48W11222083 Whirlpool Power Cord
