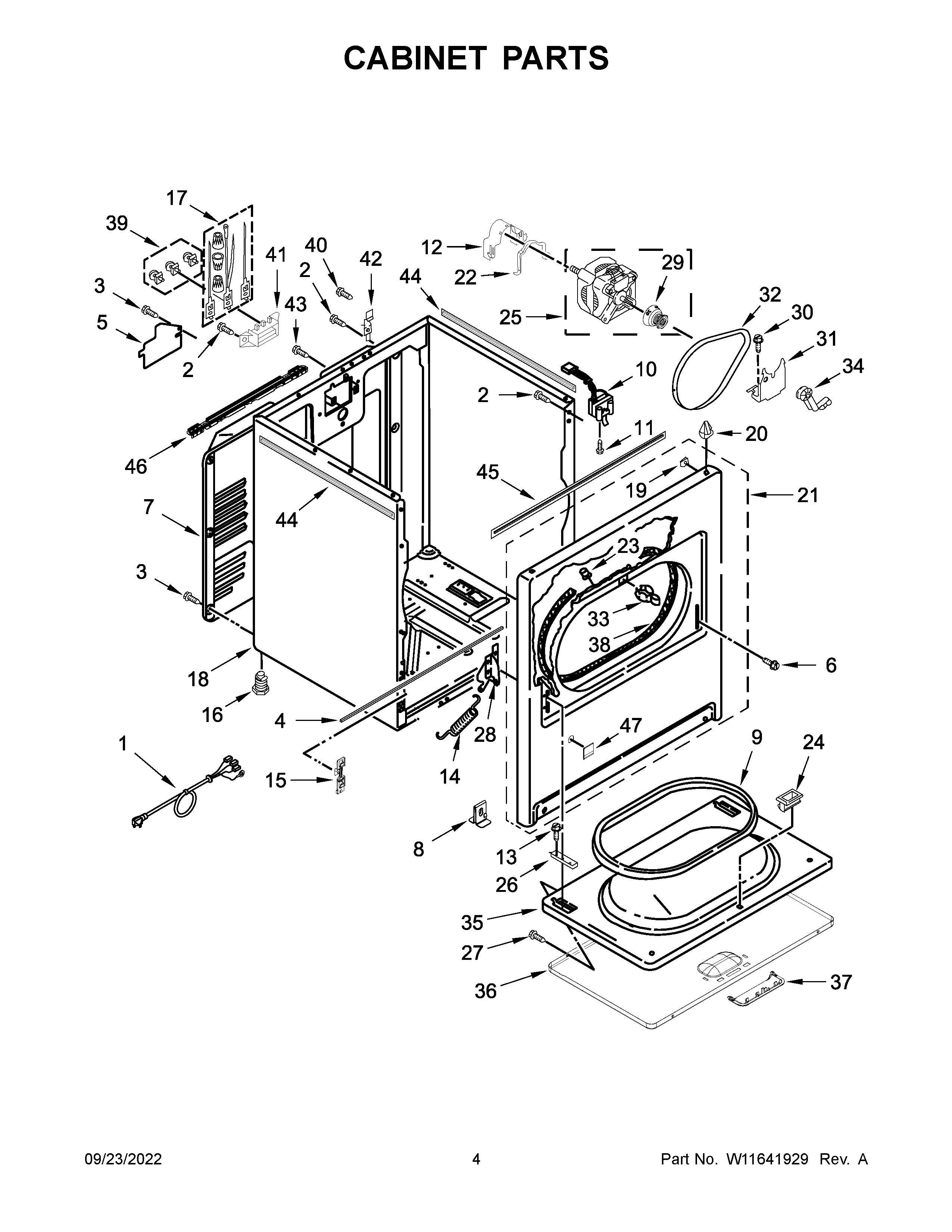

WGD5010LW2 03 – CABINET PARTS

Products

Position	Product
1	W11222083 Whirlpool Power Cord
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	W11626083 Whirlpool Rear Panel
8	W10575896 Whirlpool Clip
9	W10906683 Whirlpool Door Seal
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	279740 Whirlpool Panel Primary with O/S2
22	CLAMP
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	279827 Whirlpool Dryer Drive Motor
26	W11252547 Whirlpool Clip Assembly
27	WP488627 Whirlpool Refrigerator Screw
28	WP8066056 Whirlpool Door Hinge
28A	WP8066057 Whirlpool Door Hinge
29	WP8066184 Whirlpool Dryer Motor Pulley
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	279570 Whirlpool Dryer Door Latch Kit
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WP695737 Whirlpool Door
36	W10861223 Whirlpool Door Appliance
37	W10861225 Whirlpool Dryer White Door Handle
38	W11035878 Whirlpool Bearing and Seal
40	SCREW
41	WP3397659 Whirlpool Terminal Block
42	W11715722 Whirlpool Hinge
43	W10850756 Whirlpool Screw
44	WPW10157932 Whirlpool Seal Foam
45	W10316619 Whirlpool Seal
46	W10641295 Whirlpool Bracket
47	W10811916 Whirlpool Plug
