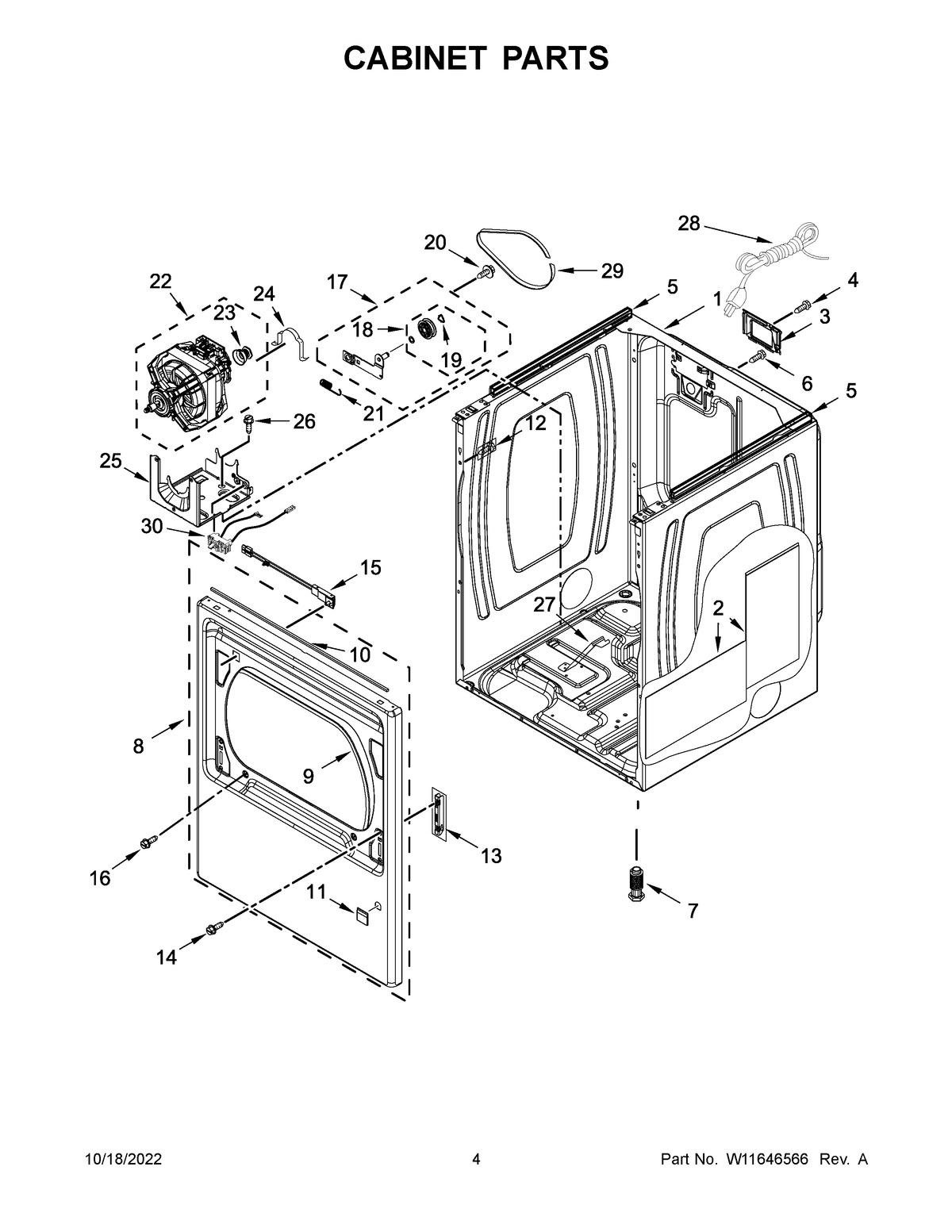

WGD5100HW3 03 – CABINET PARTS

Products

Position	Product
1A	W11417445 Whirlpool Cabinet
1	W11417441 Whirlpool Cabinet
2	W11690850 Whirlpool Pad
3	W10819767 Whirlpool Cover
4	WP3390631 Whirlpool Screw
5	W11352071 Whirlpool Seal
6	W10850756 Whirlpool Screw
7	W11444912 Whirlpool Leveling Leg
8	W11402947 Whirlpool Plug
8A	W11402953 Whirlpool Plug
9	WP3387242 Whirlpool Seal
10	W11406199 Whirlpool Seal
11	W10811916 Whirlpool Plug
11A	W11406198 Whirlpool Plug
12	W10891954 Whirlpool Screw
13	W11568982 Whirlpool Inner Door Hinge
14	SCREW
15	W11551763 Whirlpool Door Switch
16	WP308685 Whirlpool Microwave Screw
17	W10837240 Whirlpool Dryer Idler Pulley
18	279640 Whirlpool Dryer Idler Pulley Kit
19	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20	WP3389420 Whirlpool Screw
21	WPW10446781 Whirlpool Spring
22	W11549461 Whirlpool Motor Drive
23	W10837625 Whirlpool Dryer Motor Pulley
24	CLAMP
25	W11481730 Whirlpool Bracket
26	SCREW
27	W10181903 Whirlpool Bracket
28	W11222083 Whirlpool Power Cord
29	661570V Whirlpool Dryer Drum Belt
30	W11662087 Whirlpool Dryer Switch
